Round Bottle Labeling Machine Label Machine for Label Lenght (26-220mm),label Width(25-150mm)

Round Bottle Labeling Machine Label Machine for label lenght (26-220mm),label width(25-150mm)hine

Working Principle

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Imported intelligent high-accuracy magic eye and high reliable Computer chip program controller(PLC)control the label and the case, label, using rubber roller pinned bottle the non-drying label followed the bottle in the bottle and put on rotating.

Features

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Suitable for labeling round bottle in different sizes.

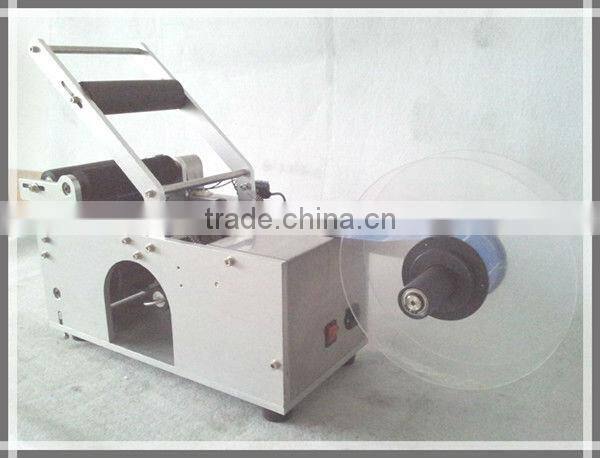

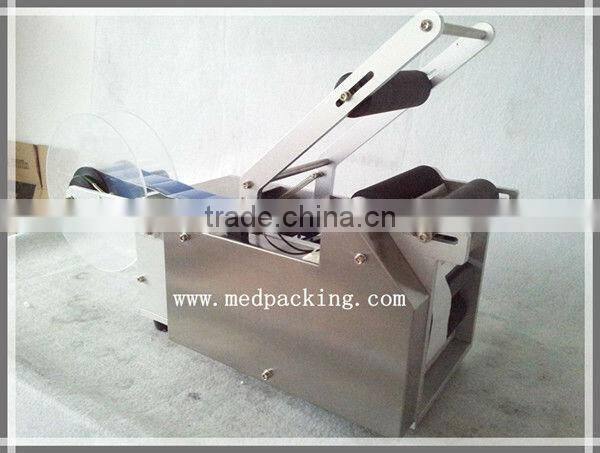

1. Composed by main body, sending paper, receiving paper, bottle orientation etc parts.
2. Putting the bottle to orientation part by manual and fix the bottle;
3. all metal are made of 304 stainless steel with surface finishing and special treatment, which we can guarantee you very good quality
4. small size labeling machine, very easy to operate

Advantages

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Efficiency is as high as 50 times/minutes.
2. Labeling bottle adjustable, meet different before and after the workpiece labeling needs.
3. Labeling effect is good, no bubble, no creases, grade high, to increase product competitiveness.
4. Choose brand PLC and sensor etc electronic components, performance very stable.
5. Modular design, convenient maintenance and repair costs low.

Specifications

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

*Note: The above parameters for reference only. The machine constantly upgrades parameters may cause the actual discrepancies, please understand.


------------------------------------------------------------------------------------------------------------------------------------------

Operation sequence

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

l 1.First installation 2 slices of organic glass tray, respectively in two round installation fixed block, and then you will take slot first set of fixed block nursery dish core shaft, the green o-rings pull to fixed block of the trough, again fixed block screwed.

l 2. Label installation: the installation rolls label, is direction in clockwise tag along the label, and put the label on the tray to carry the external fixation and lock screw.

l 3. According to the label will wear the good direction, clockwise around the label head of standard, the bottom standard core clamping device and head out label, the clamp the clamping DaoBiao cylinder lock, otherwise the machine will not work. In the lock DaoBiao clamping cylinder, should pay attention to label the wheel about balance rubber balance rubber balance degree, such as no balance, can appear about labeling the phenomenon of up and down after label. The paragraph tags and bottom mark after must wear on the same level, and put all the film cylinder on the positioning of the circle, to ensure the proper position guide are tags.

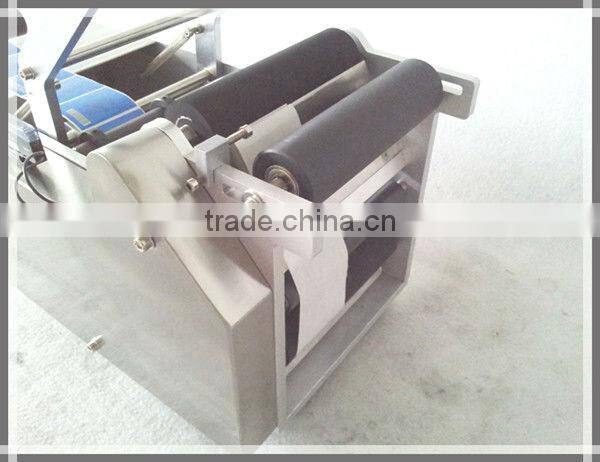

Machine diagram & Label stretching chart

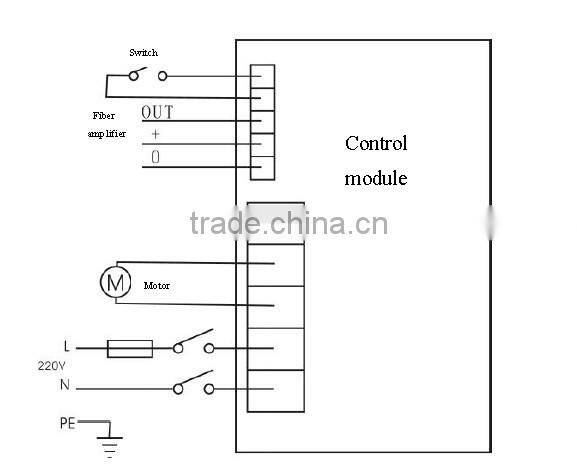

l 4. The power supply plugged into the single-phase power supply (requires a good ground connection).

l 5. The power supply switch on, adjust the magic eye: Tag magic eye is by amplifier and U fiber-optic first two parts, As shown in Figure:

First will U fiber-optic lines of the head of arbitrary insert fiber socket2 centimeters, Then lock, Will regulator counterclockwise transferred to the lowest position, The tag through u-shaped fiber u-shaped slot, Two pieces of the label on fiber position of interval between head, Then the clockwise turn the regulator, Rotating slowly from low to high, Until light so far,
Back-and-forth pull Label, Label when on optical fiber head, indicator light off, Again, that signals a stable fine-tuning. These steps are completed, already successful commissioning that label magic eye. General before they have been tested.

a. Magic eye position: Magic eye position is related to label stopped position, so stay to adjust its position. Different sizes of label the required position is different also, Magic eye if position too back, will appear label is too long, Cause label head cannot adsorption label. Magic eye position quite rely on ahead, Will appear tags too short, Cause tags do not have labeling.

b. label stopped position: Is the index sign in labeling strip out before the length of Stripper plate, By magic eye to control. General adjustment to label head traps by tags just can.
