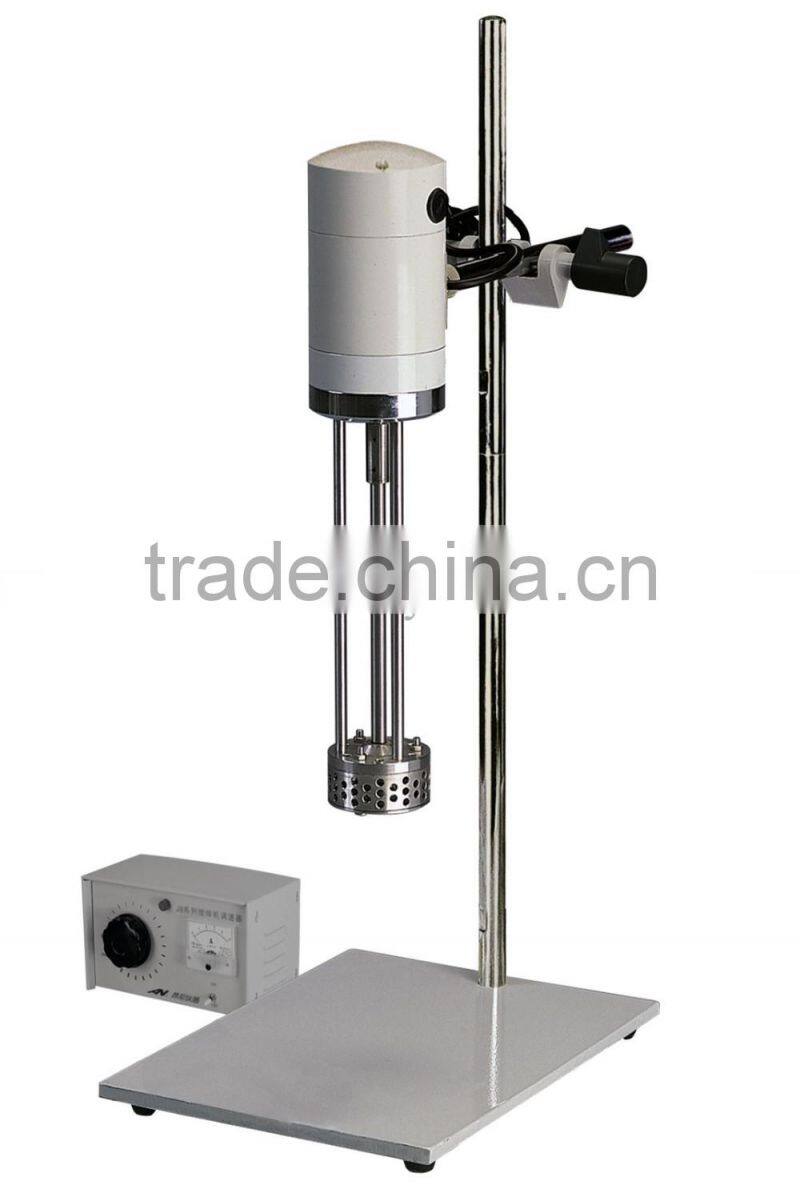

AE300L-P Laboratory shear emulsifying machine with Operating dynamic indicate display

Name:AE300L-P Laboratory high-shear emulsifying machine

Technical parameters:

Type: AE300L-P

Rated voltage: AC220V

Rated frequency: 50/60Hz

Input power: 510W

Output power: 300W

Stirring shaft output torque: 96.0 N.cm

Work mode: S1 (continuous)

Operating control mode: Adjusting-Speed control box

Speed adjusting range: 200-13000RPM

Speed control type: stepless

Operating dynamic indicate: current value display

Work head maximum torque: 92.0 N.cm

Rotor maximum linear velocity: 18m/s

Work head material: stainless steel 304

Work head diameter: 70 mm

Minimum height immersed in liquid : 50mm

Maximum height immersed in liquid : 236mm

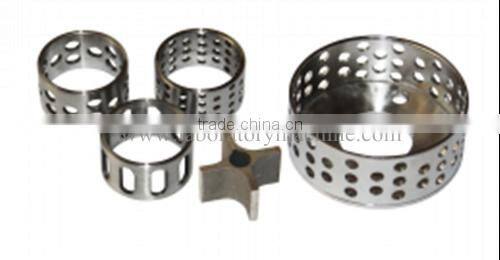

Standard configuration of stator: 5mm²  20mm²  50mm²

Stirring capacity : 500-40000ML

Stirring processing viscosity: 8000mPa.S

Allow environment temperature: ≤40℃

Allow relative humidity: ≤90%

Size: 215 * 310 * 720mm

Net Weight: 13.8kg

Gross weight: 15kg

Product introduction:

AE300L-P laboratory high-shear emulsifying machine with compact structure series miniature high-speed motor driver, suitable for lab or pilot plant of low to medium and high viscosity liquid mixing, crushing particle material shearing emulsification in liquid medium. The machine by high die casting aluminum alloy for the drive motor, the high quality stainless steel refined shear emulsifying work head and speed controller, etc.
