New Condition Electric Mini Loader,hydraulic Mini Track Garden Dumper for Sale

FOB Price

US$ 230 - 1,560 / Set

1 Set(Min. Order)

Port Qingdao China

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Use For	Cargo	Driving Type	Electric
Voltage	48V
Body Type	Open	Certification	CE
Brand Name	Lianke	Place of Origin	Henan, China
Model Number	LK135	Size	26009001200

Product Description

New condition electric mini loader,hydraulic mini track garden dumper for sale

LK135 Electric mini dumper video link-----------https://youtu.be/2UiCVflwgjU

Zhengzhou Lianke Machinery Manufacture CO.,LTD produces electric mini loader.LK135 load 1 ton electric mini loader is one of our main products.It adopts electric as power source in mining, sanitation and cleaning.

Electric mini dumper advantages:
1)Pure electric products, does not produce any pollution.
2)Heavy loading capacity.
3)Good quality, strong and sturdy.
Electric mini dumper usage range:
mine, concentrator, quarries, refractory factory, flour mill, brick factory, furnace charge factory, forest, farm and so on.

Different loading electric mini dumper main technical parameters
Item		LK135	LK270
Weight	Loading capacity(Ton)	1	2
	Net Weight(kg)	500	1000
Battery	Voltage(V)	*12V4**	12V*6
	Battery capacity(Ah)	150-80Ah	180-120AH
	Charging Time	First is 12h, normal 8h
	Working Time	10-12 h
Motor	Lifting Motor Power(W)	1000	1000
	Driving Motor Power(W)	1000	2000
	Rotate Speed(r/min)	3500	3500

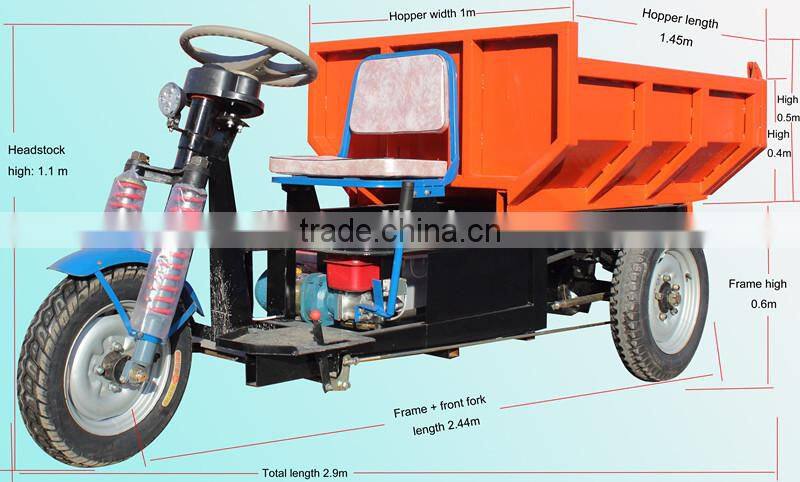

Sizes	Overall Sizes(mm)	*290010801180*	360012001400
	Box Sizes(mm)	1450×1000×400	18001200500
	Thickness of Box(mm)	3 mm/ 5 mm	3mm/5mm
	Work Platform Height(mm)	600	720
Tire	Front Tire	4.00-12	4.50-14
	Rear Tire	4.50-14	6.00-16
Others	Max Grade Ability	25 degrees
	Maximum Tilt Angle of Cargo Box	45 degrees
	Operating Speed	≤25 Km/h
	Material	National standard square steel

We can customized our electric mini dumper changed diesel mini dumper according to customer's requirements.

Product Show

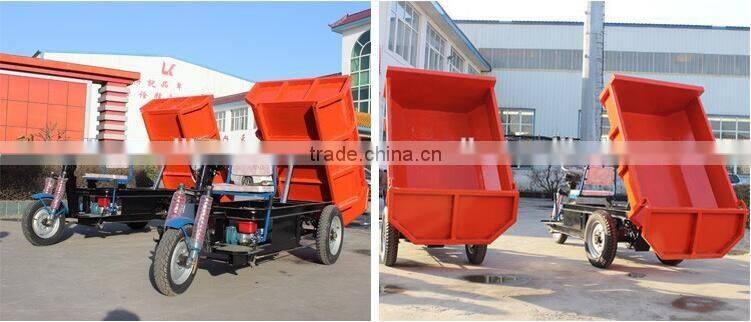

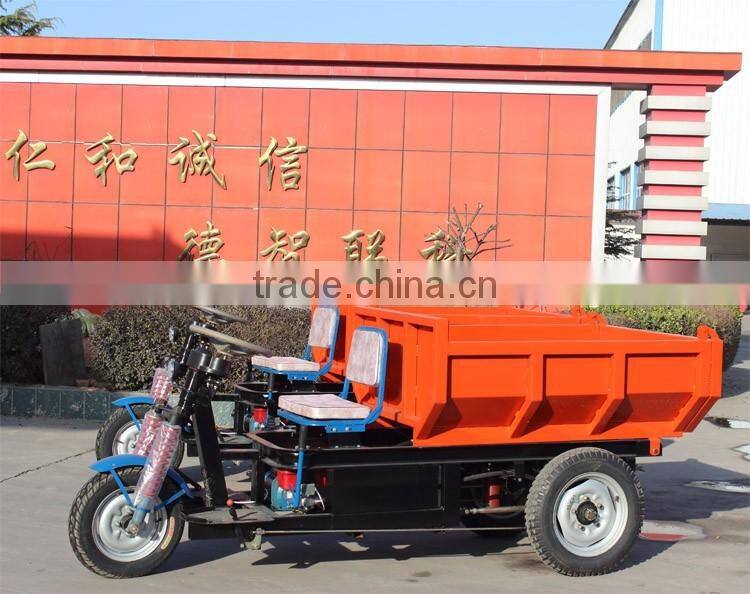

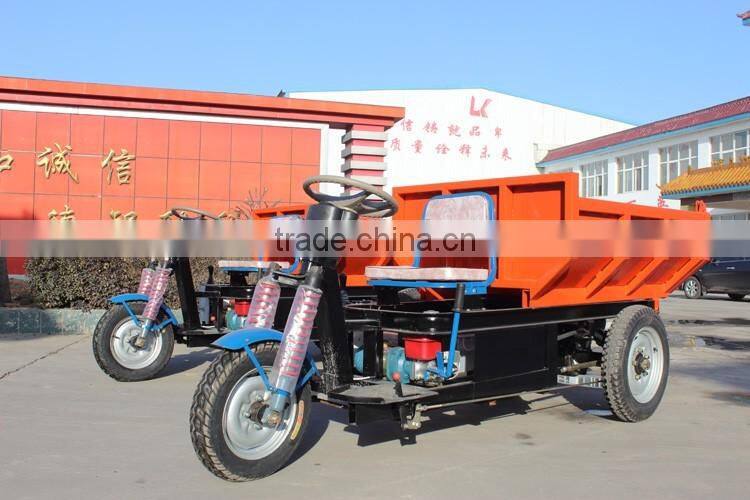

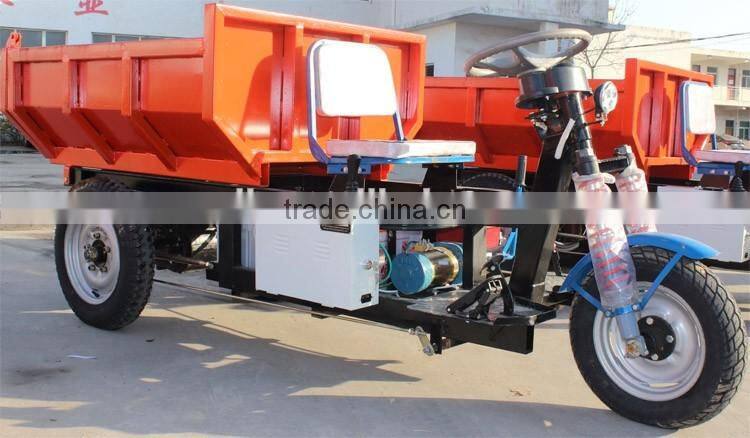

The following is LK135 electric mini loader photos at different angles

Products Details

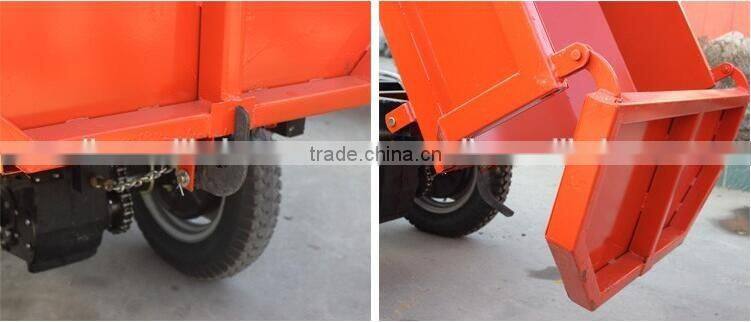

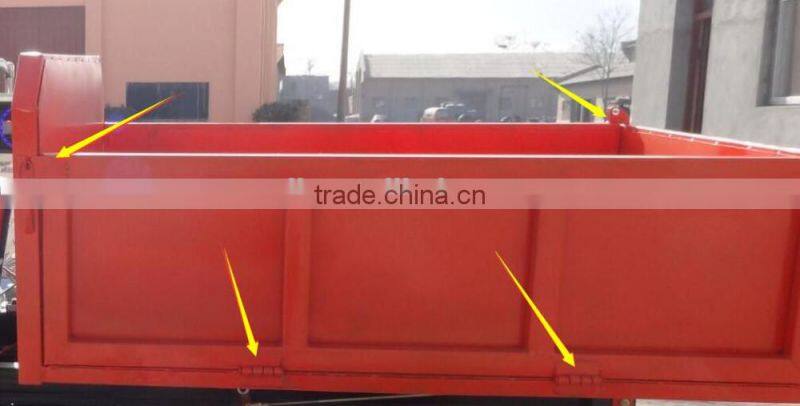

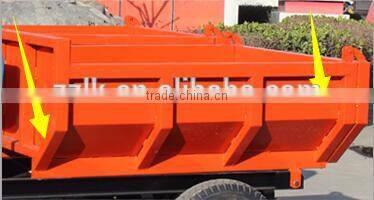

The dumper's back cargo box can be customized into three-door open, long or square, right angle or slant.

This kind of cargo box can loading more, suit for have shape and regular goods,this way can get maximize the use of it.

This kind of cargo box suit for no shape and irregular goods, such as ores, farm crops and fertilizer ect.

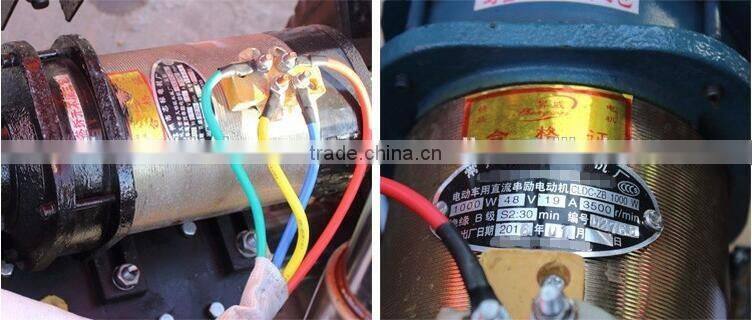

One:Lifting motor and driving motor

Lifting motor:1000W,48V,25A,3500r/min

Driving motor:1000W,48V,19A,3500r/min

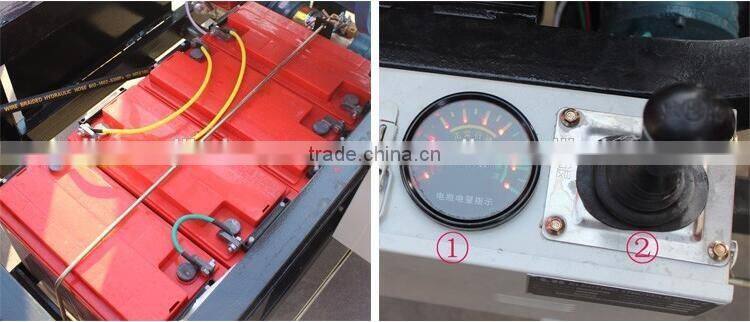

Two:150-80AH*4 capacity battery and Electricity indicating instrument

Battery capacity:150-80AH*4

1)Electricity indicating instrument:Showing red area,indicating that electricity is too low,need to charge.Showing yellow area,indicating that driving normally.Showing green area,indicating that electricity is full,do not need to charge.

2)Operating handle:Controling forward and backward.

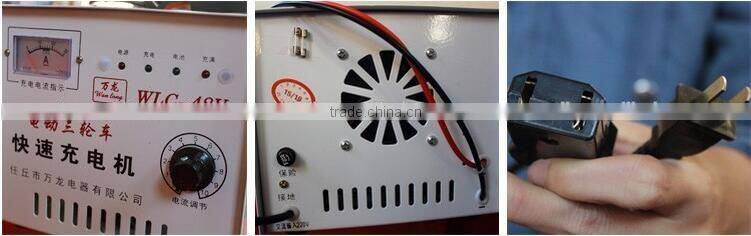

Three:Charger and Charge jack

Charging Time,First is 12h, normal 8h. Voltage,110V to 250V range,can be charged normally.

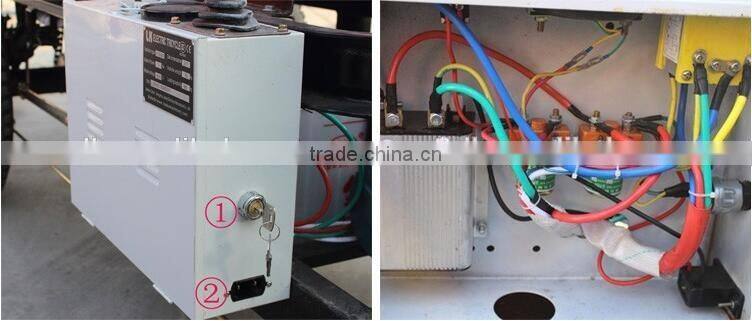

Four:Control cabinet external and internal

1)Keyhole 2)Charging jack

Controller and DC Contactors

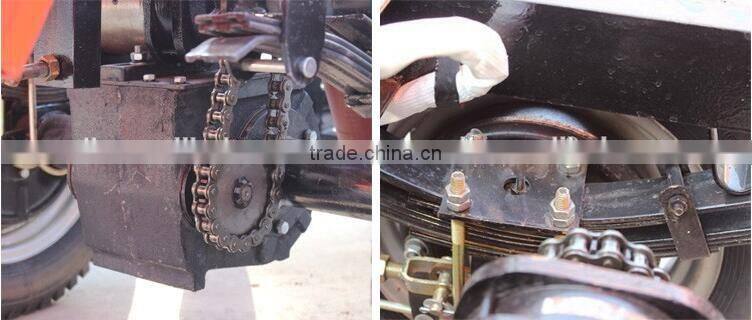

Five:Gearbox rear axle and Damping system

Gearbox:High low speed gearbox

Rear axle:including main axle,gearbox,brake drum.

Rear spring steel plate system:In total 11 pieces,can increase load bearing and effective against shocks.

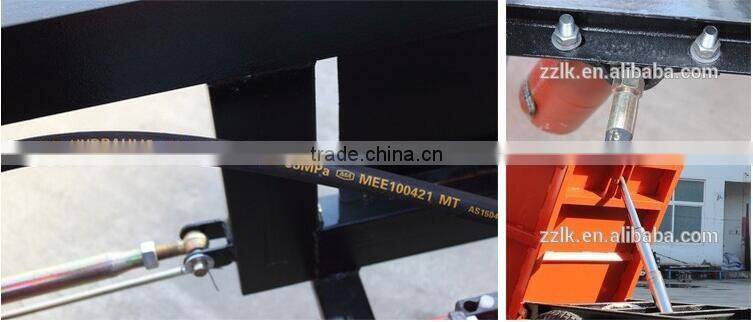

Six:Hydraulic system

Hydraulic Oil Tube:602-1002-53MPa

Hydraulic lift cylinder:3 pieces

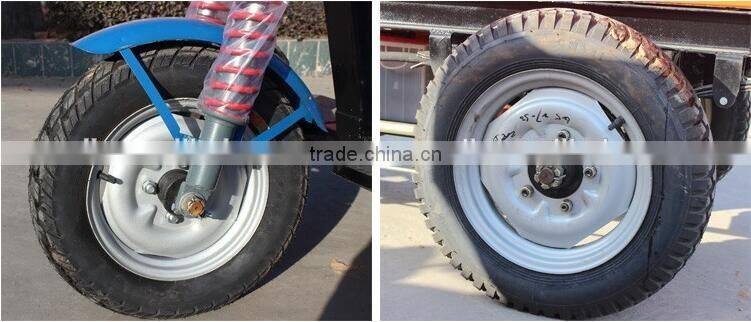

Seven:Electric mini dumper wheel

Front wheel type:400-12

Rear wheel type:450-14

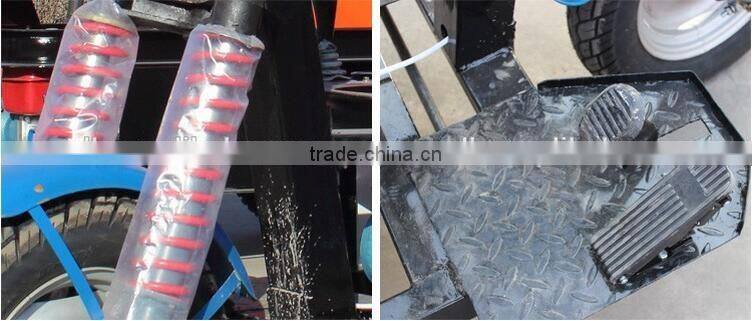

Eight:Front shock absorber and Brake pedal,acclerate pedal

Front shock absorber

Brake pedal and acclerate pedal

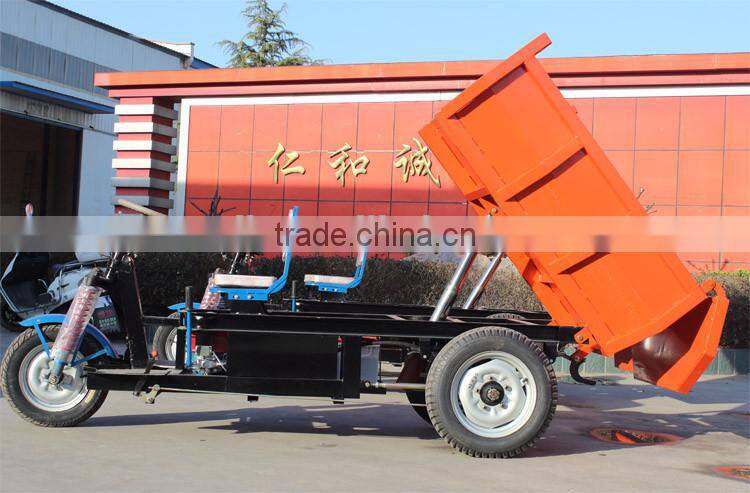

Nine:Automatic unloading function

Electric mini dumper have automatic unloading function,when you need to unload the goods,by operating handle, the hydraulic cylinder is raised, the goods by the role of gravity, will automatically fall.

Company&Warranty

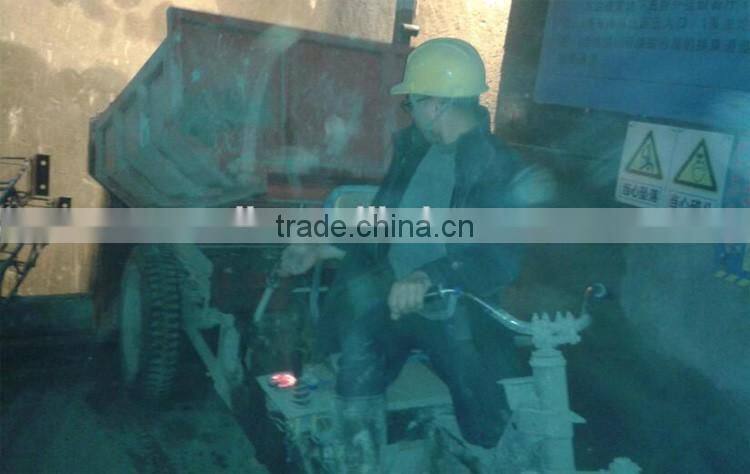

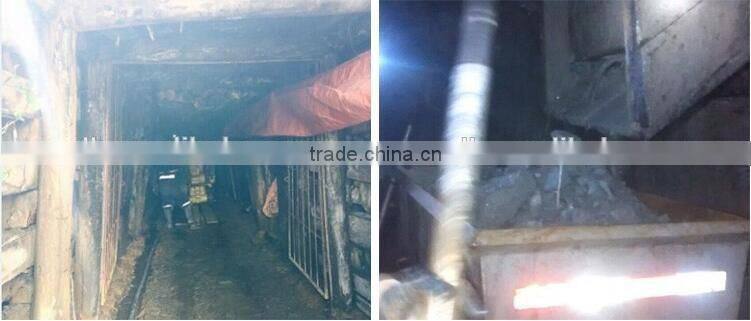

Customers use LK135 electric mini loader in the mine

Company Profile

Zhengzhou Lianke Machinery Manufacture Co.,Ltd. is a specialized manufacturer and traders. Our products are exported to many countries all over the world. Such as:Malaysia,United States,Kuwait,Spain,Djibouti,French Polynesia,Israel and so on.

Warranty
1)The electric mini dumper tricycle all parts quality assurance period for 12 months.In normal use circumstances,there is any quality problem in the warranty period ,we use DHL,UPS,or other express delivery to send the accessories freely for customers after determine the damaged parts.
2)We will send clearance document(bill of lading,packing List,insurance list and contract)to customer by DHL,and the service is free.

Packing & Delivery

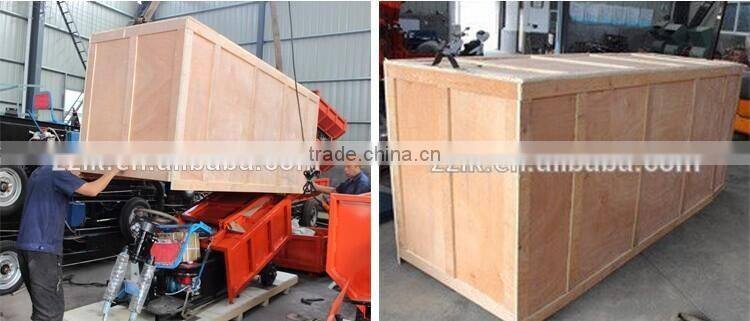

LCL delivery

One set LK135 electric mini dumper usually using SKD standard wooden box package,to convenient assemble,we only remove the wheels.Other parts have no any demolition, so after you receive dumper,you just need to assemble the wheels,then you can drivie directly.

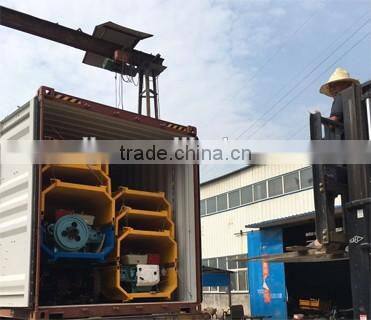

FCL(20GP or 40HC)delivery
20 GP can load 12 sets LK135 loading 1 ton dumper
40 HC can load 30 sets LK135 loading 1 ton dumper
Using complete delivery,have no any disassembly.
If you purchase 20GP or 40HC electric mini dumper,
Then you can enjoy big discount about FOB price.
