Home > Products > Washing ore machine > Mining Hydraulic Classifier Separator
Mining Hydraulic Classifier Separator
- Xiamen
- T/T
You May Like
-
Hydraulic Classification Box From Oasis Equipment
-
Desliming Machine
-
Mine Deslimer Machinery for Desliming Clay
-
Spiral Classifier for Mineral Processing/spiral Classifier for Iron Ore
-
Spiral Classifier in Mine Processing Used With Ball Mill
-
Spiral Classifier/Mining Equipment in Mine Processing Used With Ball Mill
Product Details
| Condition | New | Type | Flotation Separator | |
| Place of Origin | Jiangxi, China | Brand Name | Oasis | |
| Model Number | 240*240 | Certification | ISO9001:2008 |
Product Description
Specifications
Hydraulic classifieris the use of sieve-plate subsidence caused by interference in terms of equipment
Hydraulic classifier

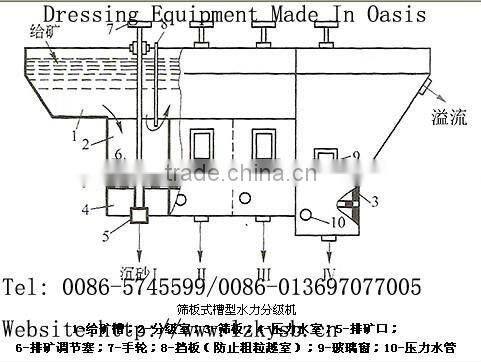

Hydraulic classifier sieve-type groove, also known Code watts (Denver)-type hydraulic grader, is the use of sieve-plate subsidence caused by interference in terms of equipment. The body shape for the corner of the cone-shaped boxes, boxes with vertical partitions into 4 ~ 8 graded rooms. Each room off an area of 200mm × 200mm. Away from the room at the end of a certain height to set sieve.
Sieve-plate-type hydraulic classifier has the advantage of simple structure, no momentum. With mechanical agitation hydraulic classifier comparison, a high degree of small, easy to configure. Select plants according to the different processing capabilities, made of four rooms, six rooms, 8 rooms of different specifications. This grading machine in our small and medium sized concentrator used more often.
The equipment used for sorting 2.5-1.5 iron, tungsten, tin, gold, etc. and non-ferrous, ferrous metal mine use
Model | Feed size (mm) | Feed density | Increase in water pressure | Ethmoid Size (mm) | Capacity t/h | Overall dimensions (mm) |
240×240 | 0—3 | 20%~ 26% | 150~ 200 | 240×240 | 5—8 | 1818×1138×1680 |
