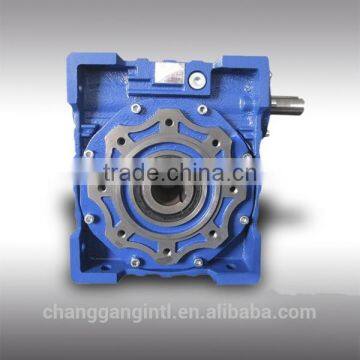

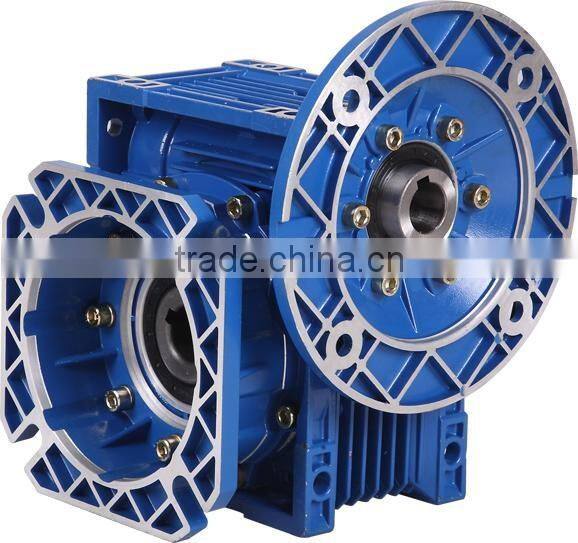

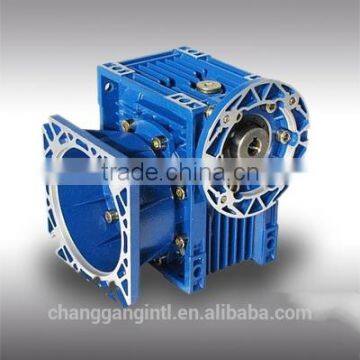

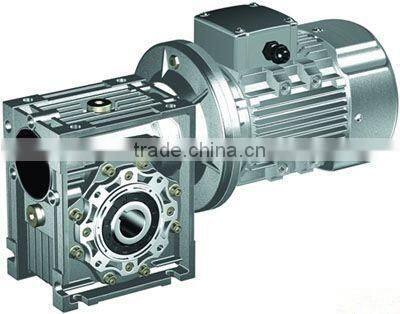

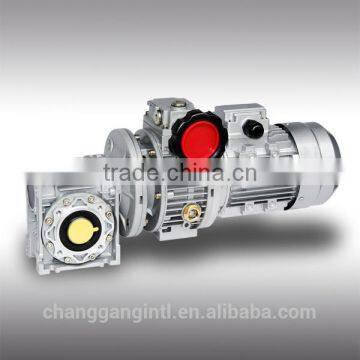

NMRV RV 030-130 Series worm and gear wheel speed reducer

FOB Price

USD $15 - $15 / Set

20 Sets(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	Changgang
Model Number	NMRV025 -150	Gearing Arrangement	Worm
Output Torque	800~100000N.m	Rated Power	0.06-15KW
Input Speed	1400rpm	Output Speed	14-280rpm

Packaging Details

wooden case

Product Description

RV series worm-gear speed reducer is a new-generation of products developed by our company with combination of advanced by technology both at home and abroad.

Characteristics:

(1)Large output torque
(2) Safe, reliable, economical and durable
(3) Stable transmission, quiet operation
(4) High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
(6) Mechanical gearboxes are widely used in the sectors,like foodstuff, ceramics, and chemical manufacturing, as well as packing, printing, dyeing and plastics

Technical data:
(1) Motor input power:0.06kw-15kw
(2) Output torque:4-2320N.M
(3) Speed ratio of worm gear peed reducer: 5/10/15/20/25/30/40/50/60/80/100
(4) With IEC motor input flange: 56B14/71B14/80B5/90B5…

Materials:
(1)   NMRV025-NMRV090: Aluminium alloy housing
(2)   NMRV110-150: Cast iron housing
(3)   Bearing: NSK bearing & Homemade bearing
(4)   Lubricant: Synthetic & Mineral
(5) The material of the worm mandrel is HT250, and the worm ring gear is ZQSn10-1.
(6) With high quality homemade bearings, assembled NAK oil seals & filled with high quality lubricant.

Operation&mantenance
(1)When worm speed reducer starts to work up to200-400 hours, its lubricant should be replaced.
(2)The gearbox need to replace the oil after 4000 hours.
(3)Worm reduction gearbox is fully filled with lubricant oil after finshed assembly.
(4)Lubricanting oil should be kept enough in the casing and checked at a fixed time.
Color:
(1)   Blue / Light blue
(2)   Silvery White
Quality control
(1) Quality guarantee: 1 year
(2) Certificate of quality: ISO9001:2000
(3) Every product must be tested before sending
