High Carbon Steel Structure Automatic Common Nail Machine

common nail machine

Function of common nail machine :

To make the steel bar into high quality of iron nail ,rivet,body of roofing nail(asphalt felt nails, linoleum nails), cement nail and other special shaped nails used for high speed coil nail welder and coil nailer if we changed the stamping structure,nail mould and nail knife.

 Spare parts of common nail machine:

punch pin ,nail knife,nail mould,and steel ball(for this one you can buy from your local market )

upper one is nail knife , and the lower one are nail knife

Available material to make nails

Specifications Of common nail machine :

Flowchart of working procedure

Flow of Production

 1.wire drawing machine

draw out the big rebar into certain diameter which keep same as the nail you plan to make ,meanwhile the rust which attached on the surface also will be removed if you take our scrap steel bar style wire drawing machine or horizontal style drawing machine .

2.ail making machine

pre-set the length of nail you prefer , then use this machine to produce the wire nail .

3.polishing machine

to make the finished nail more bright ,notes that add some saw powder,paraffin,oil and other material in the machine when polishing .

tering and packing the nail with wooden box for marketing (You can also pull into the grid mesh cages, sheds, hangers, car baskets)

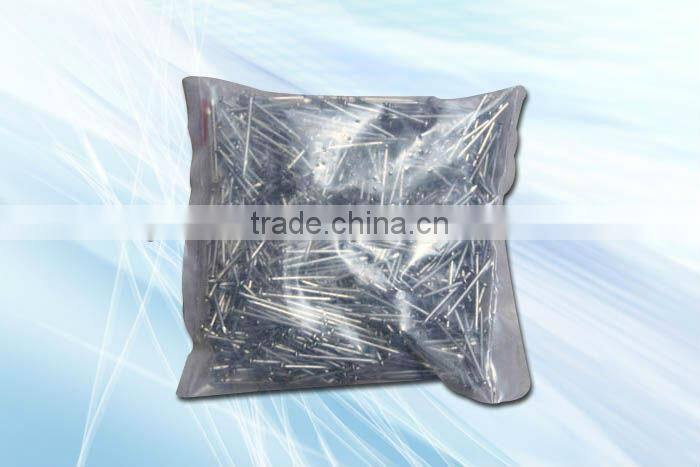

Photos of the finishd nail

Business Card

Features:

1.20M2 workshop are okay ,and just need 3 people to operate for the whole production line

2. Both of the scrap iron wire and the new steel rod can be used to make nails.The profit using wasts steel is 5 times of that using finished steel

4 All the main components are made of quality steel, such as shaft, cams and gear.

5. This machine adopts closed plunger type transmission

 structure so as to ensure the features such as high speed, low noise and less impact(self-lubricating).

6. can feed the materials automatically. Once start, it could make nails continuously.

7 A friction gear is installed between crankshaft and flywheel. It plays a protective role of safety when the machine breaks down or overloaded.

8.use control handle at the inlet place in order to control incoming line at any time during operating.

Remark:

Excepet the main nail making machine ,also we supply the auxiliary equipmet just like butt welding machine , pointing rolling machine , derusting machine , discharge wire machine and etc. Believe that we will equip you with a complete productio line according to your situation of raw material and size/shape of nail , so if you are  interests in our product ,pls call me directly . 00 86 15937198193

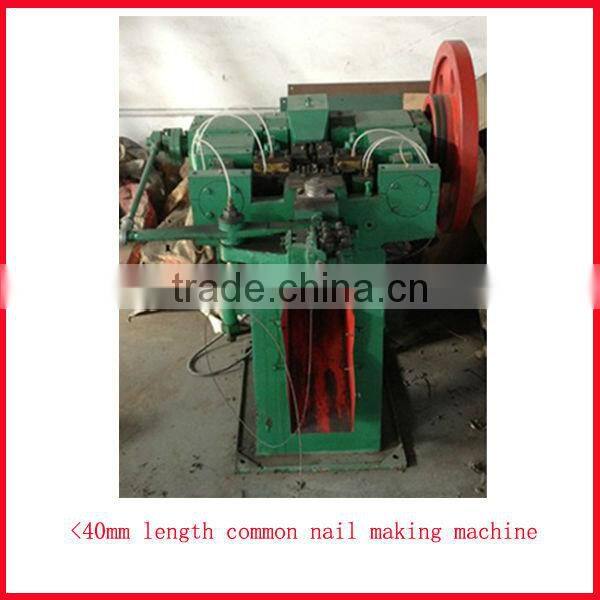

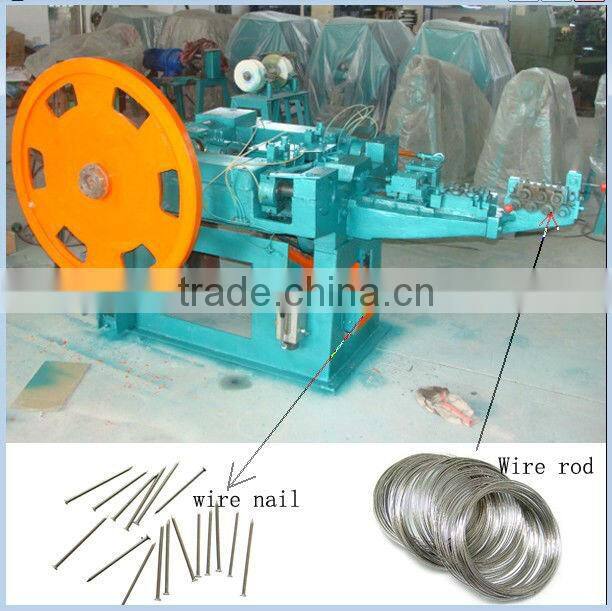

Photos of nail making machine :
