hengxin brand cheap biomass rice husk charcoal making machine

Specifications

rice husk charcoal making machine

1.Main specification of rice husk charcoal making machine

     Capacity:450-500kgs/h

     Power:22KW motor+7KW heating ring

     Size:2100*750*1600mm

     Weight:700kgs

2.Application of rice husk charcoal making machine

1. Sawdust , wood chips, wood branches
2. Maize stalk, cotton stalk, sesame stalk, sunflower stalk, peanut vine, bean stalk
3. Rice husk, peanut shell, coconut shell, palm husk, sugarcane residue and etc.

3.Working principle of rice husk charcoal making machine

     Making use of the inherent characteristic of lignin material and by means of screw extrusion to grind ,compress and extrude the loose biomass into briquettes, the machine force the lignin in raw materials plasticizing and the materials become bar-shaped hollow fuel under high temperature and high pressure condition.Lignin serves as the glue in the briquetting process,binds the particles of wood together. So during this process,no binder needs to be used.

4.Usage for the rice husk charcoal making machine

1. Use as biofuel directly for boiler, electric power plant .
2. Further processed it for BBQ charcoal

5.Flow chart of rice husk charcoal making machine

1. crushing the raw material into small particles like 3-5mm
2. Drying the crushed particle into 8-12% moisture
3. Pour that particles into briquette machine for extruding

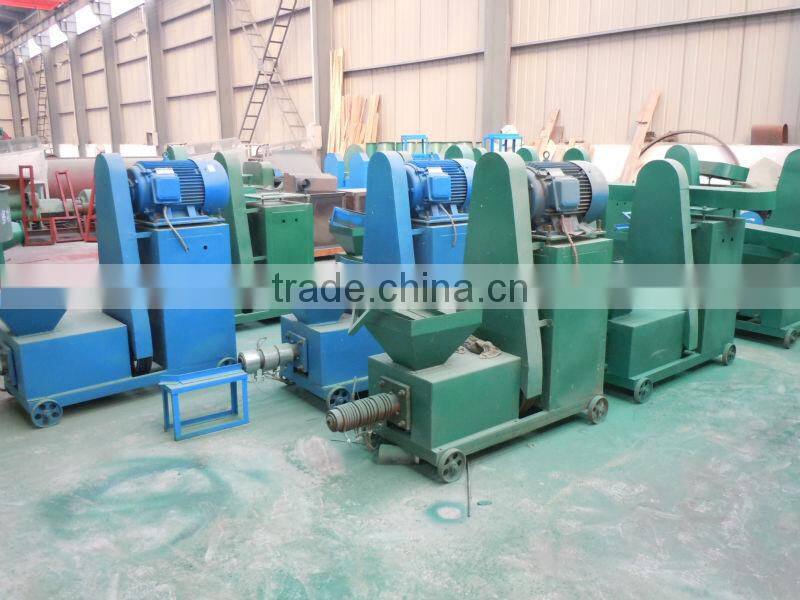

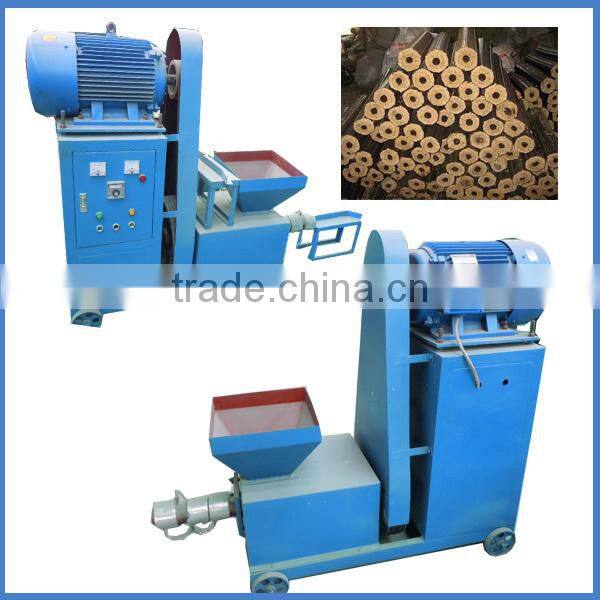

6.Photos of rice husk charcoal making machine

7.Business Card

8.Machine Introduction

 Our screw biomass briquette machine is a reliable way to make profit from agro-forestry wastes. Due to the increase of the conventional fuel cost, the awareness of using eco-friendly and bio-fuel is increasing day by day.

 Our briquetting press can produce hollow hexagonal or quadrangular, cylinder briquettes with different diameters from agroforestry wastes, such as sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc.

 Our biomass briquette machine has automatic temperature control system, which is designed to produce high density wood or biomass briquettes as biofuel. The biomass briquettes are quite popularly used in boilers, furnaces and so on.
