China Manufacturer 16kw Reefer Clip-on Genset for Container

FOB Price

US$ 5,000 - 29,999 / Set

1 Set(Min. Order)

Port DALIAN TIANJIN QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	PUYANG
Model Number	PF16GFL	Output Type	AC Three Phase
Speed	1800rpm	Frequency	60Hz
Rated Power	16kw/20kva	Rated Voltage	440/460VA
Rated Current	N/A

Product Description

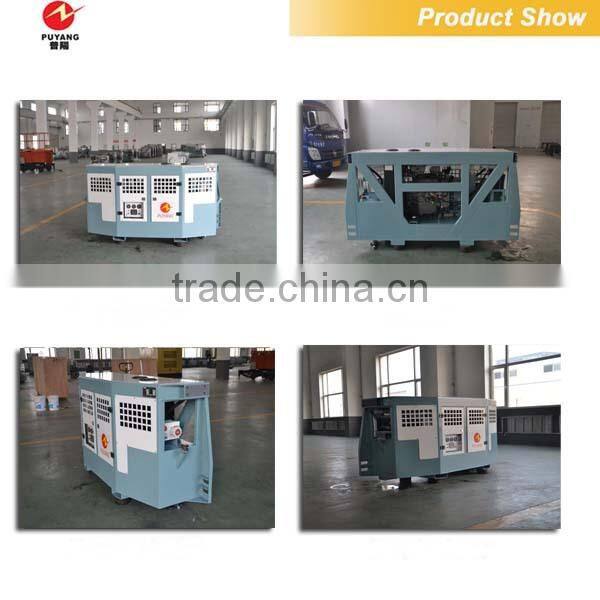

China manufacturer 16kw reefer clip-on genset for container

CLIP-ON genset is designed for mounting to the upper front structure of an ISO reefer container. The design incorporates quick connection to the upper container corner castings. Additional attaching points on the container vertical structural members provide a secure mounting arrangement. It is a completely welded steel structural assembly designed to withstand minimum 3g’ s acceleration forces in all directions.

Genset Model			PFY16BL-M	PF16GFBL-M
GENSET	Rated power(Kw/kva)		16/20	16/20
	Frequency(Hz)		60	60
	Phase		3	3
	Voltage(V)		460 or 440	460 or 440
	Fuel capacity(L)		200	200
	Fuel consumption(L/Hour)		4.8	5.8
	Dimension (mm)	L	2320	2320
		W	660	700
		H	1100	1100
	Weight(kg)		740	750
	Noice level for silent type (Db/7m)		70	70

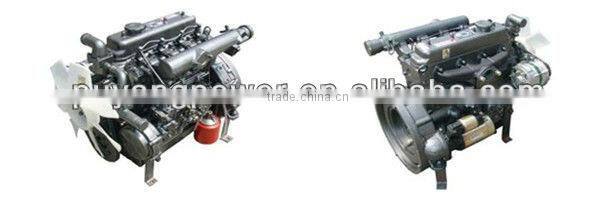

ENGINE	Model		4TNV88-GGE YANMAR BRAND	4L22BD-4 LAIDONG BRAND
	Cylinders		4	4
	Type		Vertical, 4-cycle water-cooled diesel engine	Vertical,4-cycle water-cooled diesel engine
	Starting method		Starting motor 12V,1.4kw	Starting motor 12V,1.4kw
ALTERNATOR	Model		GM-16-4	GM-16-4
	Manufacturer		Marathon	Marathon
	Insulation class		H	H
	Excitation method		Brushless self-excitation	Brushless self-excitation

Package: plywood case or plastic wrapping

Our service:

We provde guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
