Hot Sales Air Compressor 163cfm 145psig

Features

Benefits

Air cooling compressor designed under 45°C environmental temperature is suited to 0~45ºC working environment

Meet the requirement of all-weather running

Integrating all core components and basic optional parts, and integrated unit is formed

Complete supply, low cost, easy installation

400V/230V±10% 3PH 50Hz, international standard design meets IEC60038

The machine is equipped with engine and compressor coolant

IP55 three-phase induction motor

Strong rain-proofing and dust-proofing capabilities, stable performance

The engine adopts four-stroke water-cooling diesel engine

The principal machine adopts twin-screw rotor, and it is directly connected with diesel engine by highly flexible coupling

Reliable assurance, able to be used under extreme conditions in an efficient and energy-saving way

Two-level air filtration system with safety filter

The rate of flow is measured as per the standard stated in ISO 1217 appendix C (the third version)

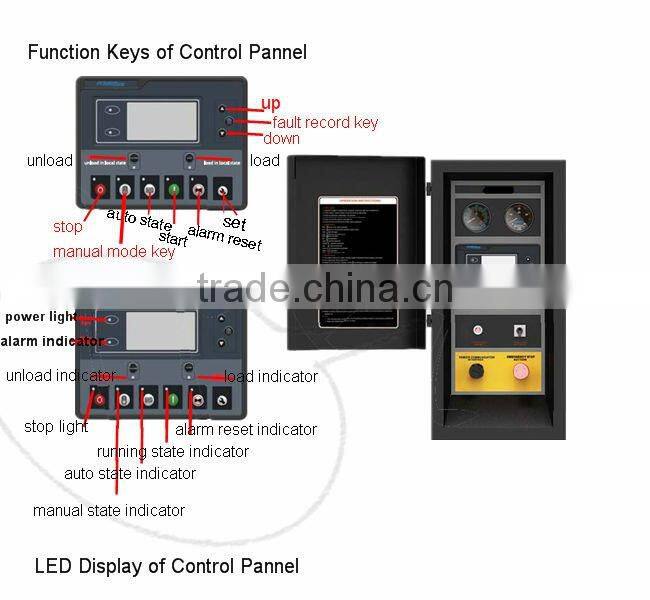

Manual or PLC-5000 intelligent controller is provided with such functions as multi-data display and monitoring, which can be viewed from 45°angle

Simple and easy operation

The moving speed for road standard can reach 80km/h or less, while for off-road standard, the speed is 20km/h

Auxiliary equipment space is reserved

Easy to operate and maintain

Whole set of handbook: installation manual, operation manual, components and parts manual, circuit diagram

Whole set of handbook: installation manual, operation manual, components and parts manual, circuit diagram

Soundproof box, the design of centrifugal fan, air flue and sound-proofing cloth can effectively reduce noise

Low noise, no any harmful impact on the environment

Anti-twist and drainage prevention design is displayed in the chassis, no pollution on the ground

Optional parts for energy recovery

Personalized custom-made compressor is available by adding optional parts according to the need

Standard optional parts can be equipped by your needs
