XPS FOAM BOARD EXTRUSION LINE
- Qingdao China
- T/T
You May Like
Product Details
| Condition | New | Application | Other, Foam insulation board | |
| Plastic Processed | XPS | Screw Design | Single-screw | |
| Place of Origin | Shandong, China | Brand Name | Fushi | |
| Weight | 20 MT |
Product Description
Specifications
XPS Foam Board Extrusion Line1.New packing material
2.Single screw design
3.Material can be recycled
4.Good quality

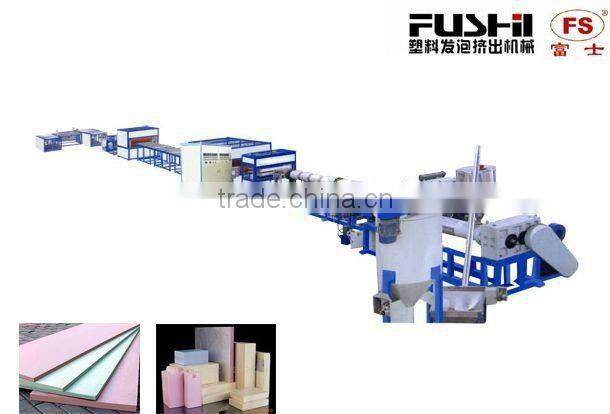

XPS Foam Board Extrusion Line
Product Description: XPS foamed board, also named as polystyrene extrusion plastic board (XPS for short) has a perfect closed-cell structure. Its density, water absorption, coefficient of heat conducting and the coefficient of steam pervasion are all lower than those of other heat insulation materials and they are characterized by strong intensity, light material, airtight, anticorrosion, aging resistance, low cost. It has been widely used for heat preservation, and insulation in the construction industry, frost resistance of the highway, railway, airport, square and household fitment. It is the generally acknowledged as the best heat preservation material at present.
THE MAIN TECHNICAL SPECIFICATIONS:
EXTRUSION SYSTEM |
| ONE | TWO |
SCREW DIA | mm | 135 | 150 |
L/D RATIO |
| 32 | 34 |
HEATING ZONE |
| 9 | 12 |
HEATING POWER | KW | 42 | 63 |
DRIVING MOTOR POWER | KW | 75 | 90 |
OTHER | |||
THICKNESS OF BOARD | mm | 202530405060100 | |
WIDTH OF BOARD | mm | 6009001200 | |
LENGTH OF BOARD | mm | 1200125024502500 | |
EDGE OF BOARD |
| SS Flat | |
OUTPUT | Kg/h | 280 | |
DIMENSION(L*W*H) | mm | 40000*8200*5500 | |
TOTAL WEIGHT (APPR.) | T | 20 | |
Note: The above-mentioned data is only for your reference and we keep the rights for modification of the component and machinery structure. The relevant contents involved in equipment purchase should be subject to the contract.
