1.5 to 3.5 Mpa Dome Construction Spraying Gasoline Shotcreting Pump
- Shanghai or Qingdao or Tianjin or Ningbo or Guangzhou or other
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
OEM Supplier ISO Certificate LZ3ER Shotcrete Spray Refractory Gunning Gunite Machine
-
LSZ3000 Model Concrete Spray Equipment Throwing Jet Dry and Wet Mix Shotcrete Machine
-
LPS-7 Stepless Speed Change Multifunction Hydraulic Wet Spraying Pump
-
HSC2515 Tunnel Construction Concrete Spray Robotic Telescopic Arm Shotcrete Equipment
-
LZ3A Pneumatic Concrete Spray Machine for Shotcrete Repair
-
LZ-9E Construction Machinery for Spraying Concrete Shotcrete Machine
Product Details
| Condition | New | Power Type | Gasoline | |
| Place of Origin | Henan, China | Brand Name | LEC | |
| Model Number | LDS1500G Shotcreting Pump | Power(W) | 9.55kw | |
| Weight | 610 kg | Dimension(L*W*H) | 1900x850x1250 mm3 | |
| Certification | ISO 9001-2008, CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

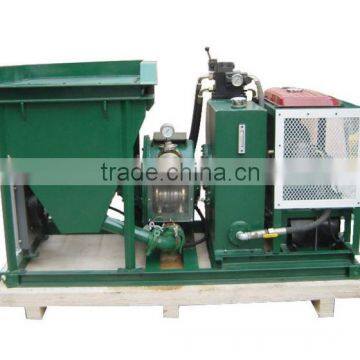

1.5 - 3.5 Mpa Dome Construction Spraying Gasoline Shotcreting Pump
Description:

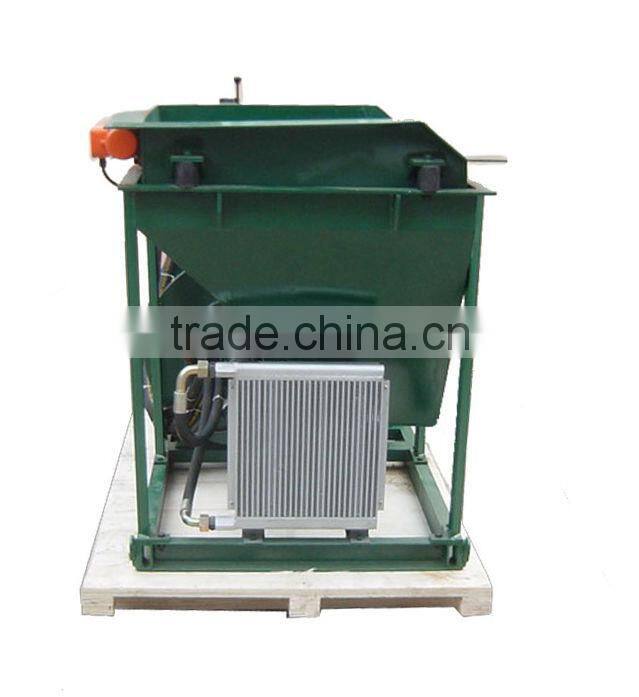

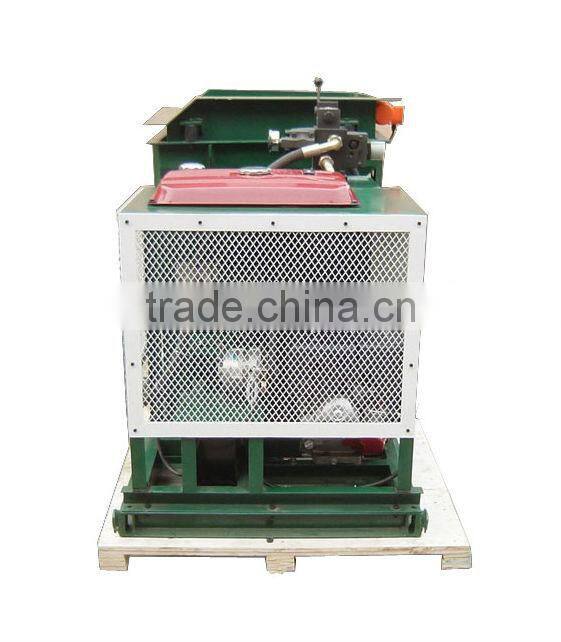

The LDS1500G is a gasoline-powered lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The LDS1500G Direct Drive uses a Honda GX390 power pack, is skid mounted.
Features of Shotcreting Pump:
- highly-reliable direct drive planetary gearbox
- infinite speed variation
- Easily operating on site work
- Standard spare part supply
Technical Parameters:
LDS1500G shotcrete pump Technical Data Sheet
Item | Description |
Pressure | 1.5 Mpa |
Output | 1.5-3m3/h |
Max. Aggregate | 8mm |
The Squeeze Hose | ID 50mm |
Conveying Hose | ID 38mm |
Squeeze pump | LH50-455 |

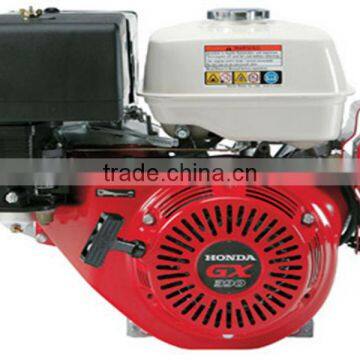

Power | Honda GX390 Gasoline engine |
Overall Dimension | 1900x850x1250mm |
Hopper volume: | 200 Liter |
Oil tank | 120 Liter |
Weight | 610kg |
Requested air compressor | 3m3/min, 0.5Mpa Pressure |
Note: the Diesel engine or Electric motor is optional.

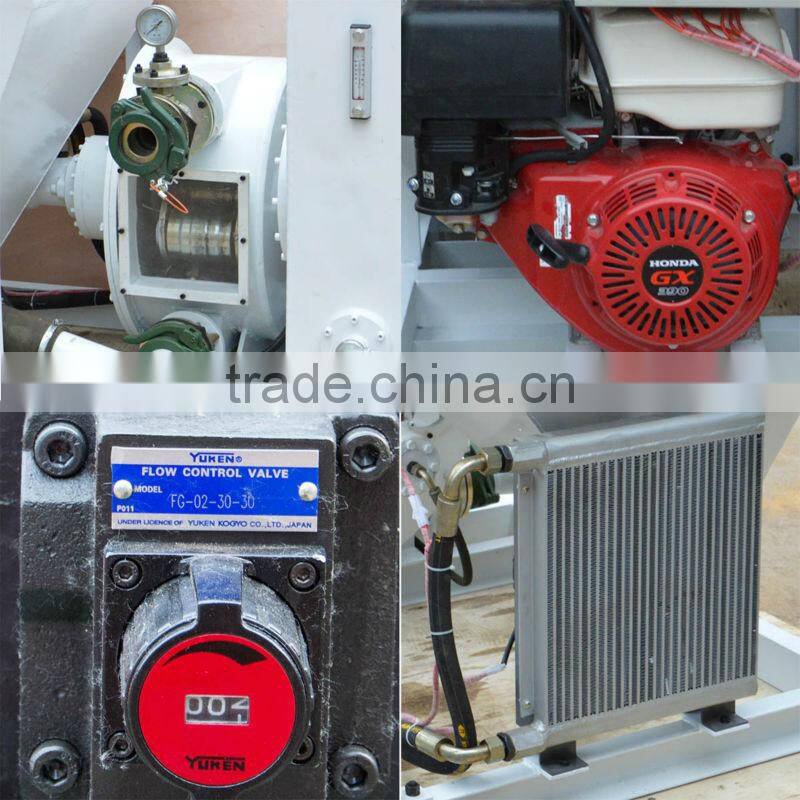

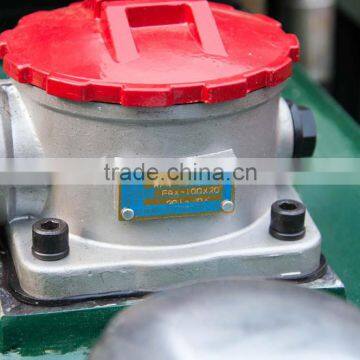

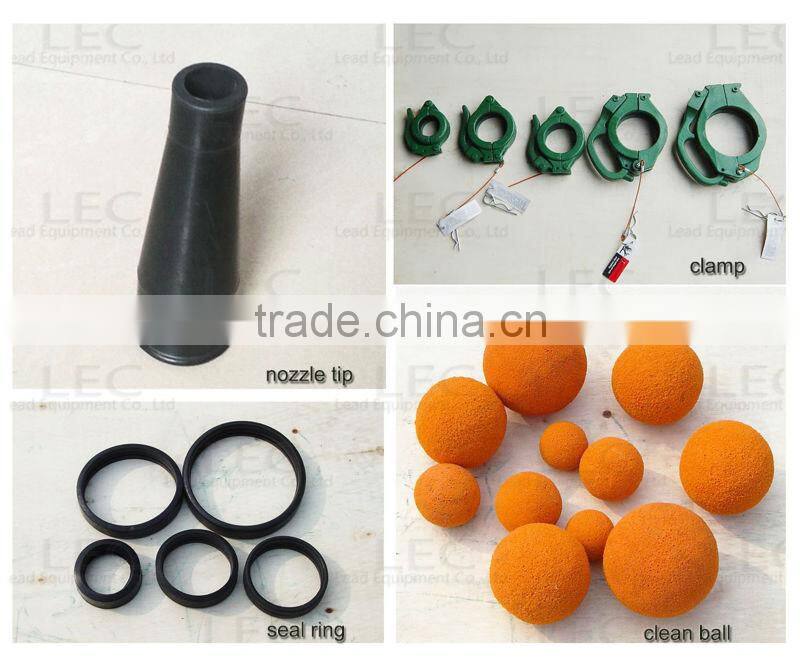

Durable spare parts

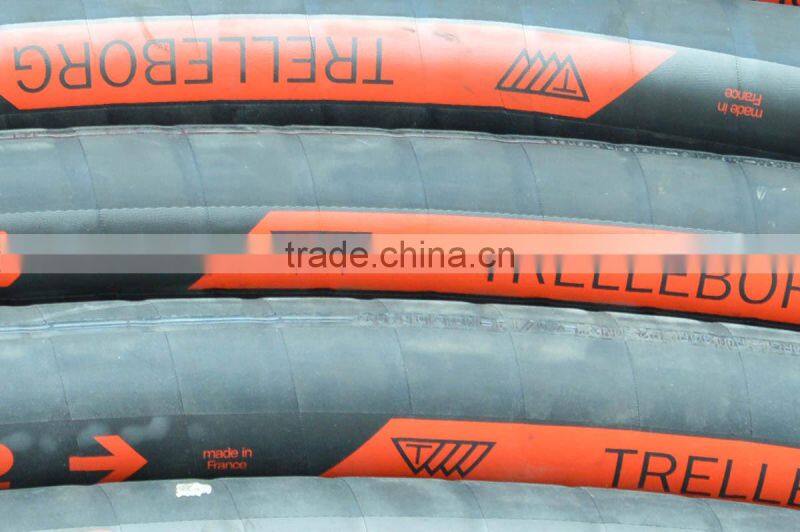

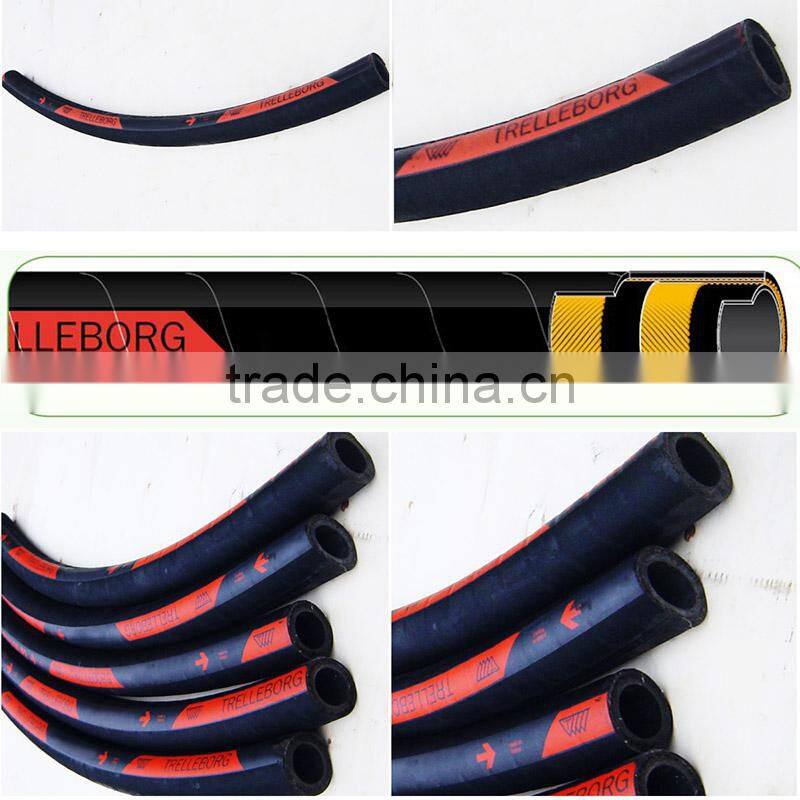

High Pressure Trelleborg Hose used in Shotcreting Pump

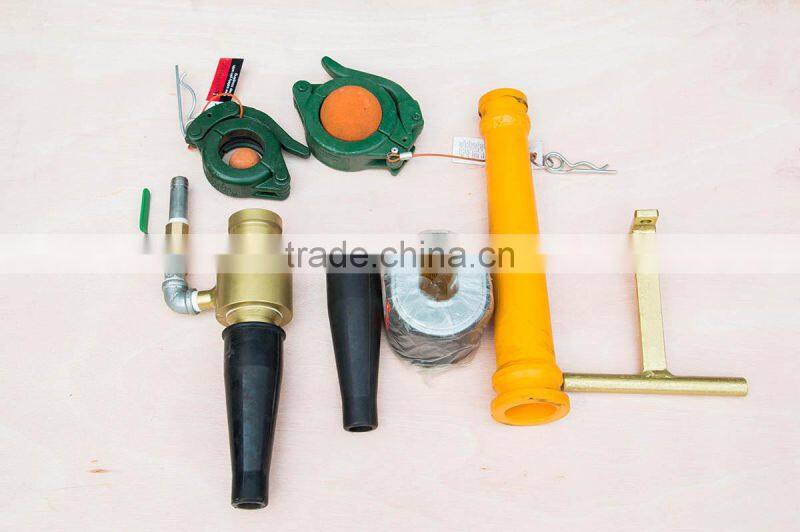

A Complete Set of LDS1500G Shotcreting Pump
No. | Description | Qty. | Unit | Remarks |
1 | LDS1500 main machine | 1 | set |
|
2 | conveying hose, ID38, L10m | 1 | pcs |
|
3 | conveying hose, ID50, L10m | 1 | pcs |
|
4 | reducer 2'/1.5' | 1 | pcs |
|
5 | 1.5”shotcrete nozzle assy. | 1 | set |
|
6 | 1.5”nozzle tip | 1 | pcs |
|
7 | clamp | 2 | pcs | One set (one 1.5”, one2”) |
8 | clean ball | 2 | pcs |
|
9 | accessories | 1 | Set |
|

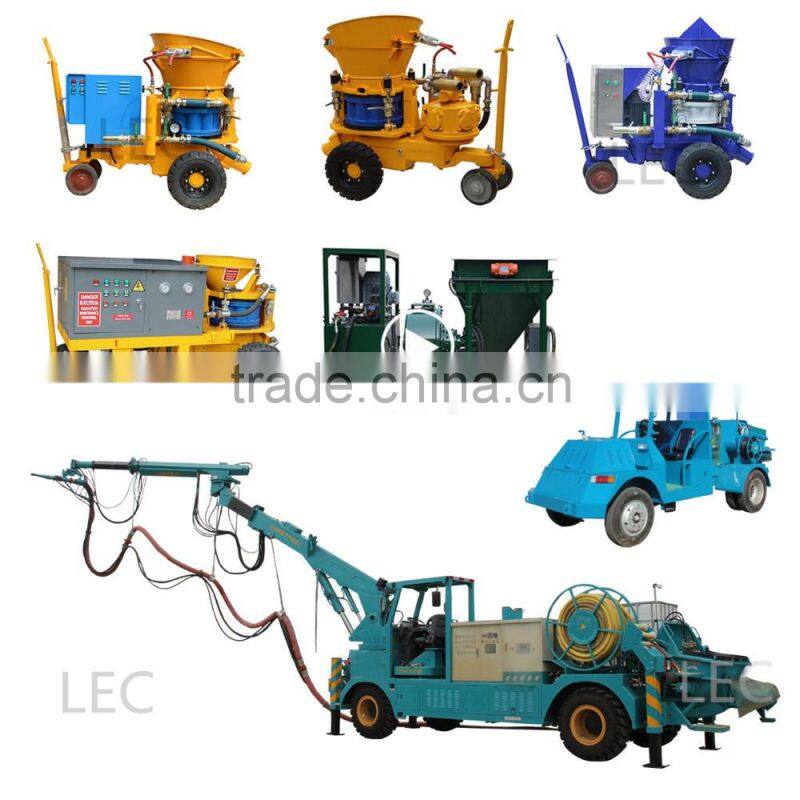

We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Packaging ( Shotcreting Pump )

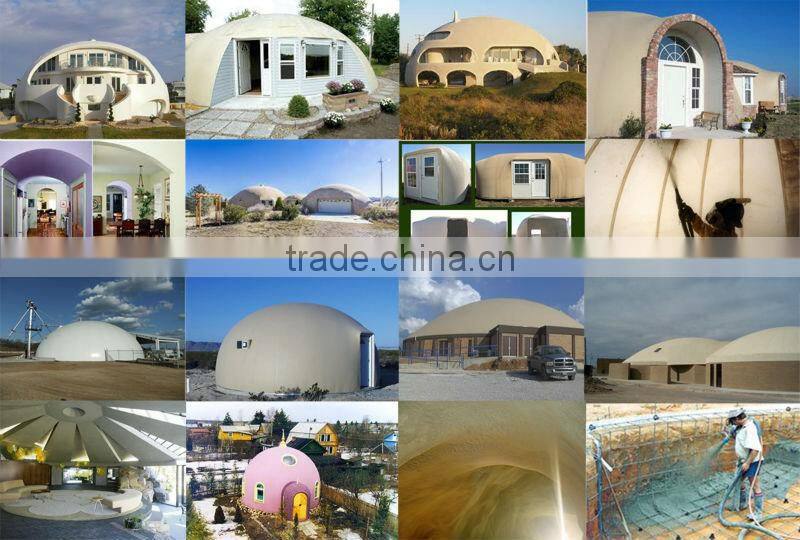

Application ( Shotcreting Pump )
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Why choose us ?
1. We are China's leading shotcreting pump manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certification of our company
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
