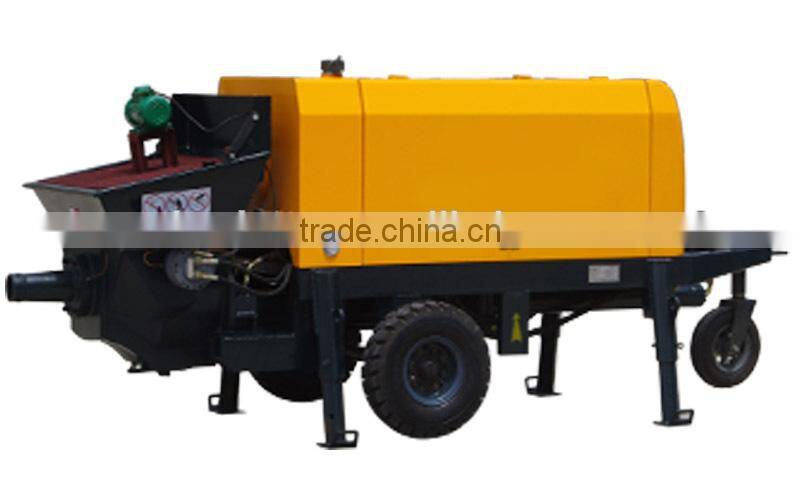

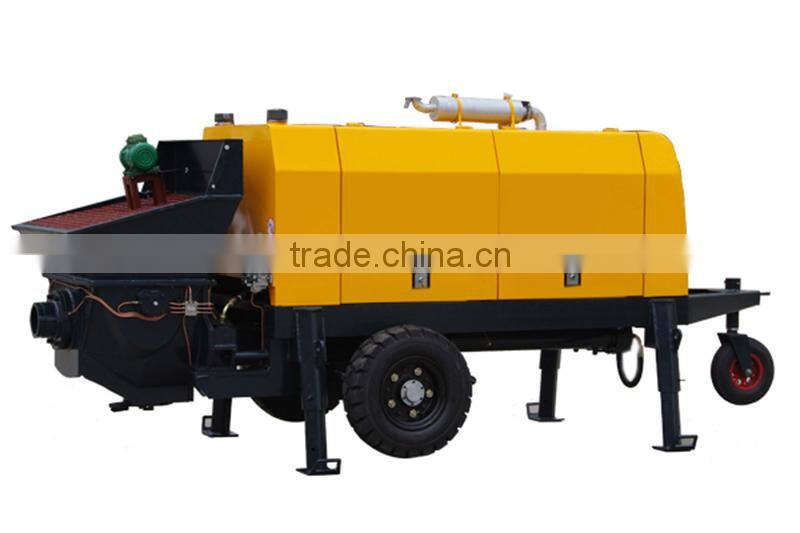

LHBT25-10S Stock Electric Hydraulicstationary Concrete Grout Pump

LHBT25-10S stock electric hydraulicstationary concrete grout pump

Brief introduction of stock stationary concrete pump :

Hydraulic concrete pump is a new version machine which is mainly used for conveying concrete mortar, slurry mortar or fine stone aggregate concrete in high-rise buildings.

The small model concrete pump is smaller, lighter and it is easier to be moved than the large model concrete pump.



Specification of stock stationary concrete pump :



Model No./Concrete pump	LHBT25-10S
Max. theoretical concrete pumping pressure (Mpa)	Low pressure 5.5 / high pressure 10
Max. theoretical concrete output (m3/h)	Low pressure25/ high pressure14
Theoretical vertical conveying height (m)	130
Theoretical level transmission distance (m)	350
Concrete tube conveying diameter (mm) and Max. Aggregate particles (mm)	76  25mm 89  30mm
Rated power (kw)	37
Hopper volume (m3)	0.4
Filling height (mm)	1000
Hydraulic oil tank volume	150L
Distribution Valve	S valve
Overall dimension (L×W×H)(mm)	3770*1420*1620

Warrantee:

The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.

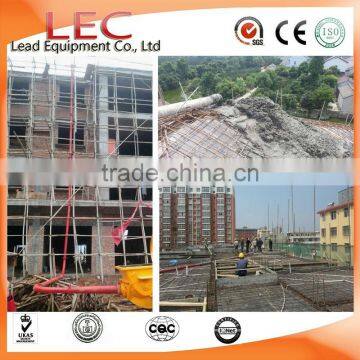

Application of stock stationary concrete pump
Conveying heating, heat insulation, light weight foam cement mortar.

Conveying light-weight foam cement, mortar for ground heating, heat insulation.
Conveying and injection of fireproof and heat preservation materials.
Press grouting and filling for all kinds of engineering and construction.



Packing: In Nude,One unit/20GP

Delivery time: Usually in 10 working days for stock stationary concrete pump .

Our Advantages and services for stock stationary concrete pump :

Factory directly supply.

Professional sales team and experienced workers.

Competitive price according to good raw material purchasing ability,and high work efficiency

Best manufacturer in China.

Good  after-sales service

Q1: What's the form of distribution valve for concrete pump?

A:  Its S valve.

Q2: What about the output you can supply?

A: The output we can supply is from 12CBM/hour to 85CBM/hour.

Q3:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?

A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones.

Q4: If over the guarantee, we need spare parts, how?

A: Here, we are always here offer service in 24hours every day.

For more information about stock stationary concrete pump , please feel free to contact us.
