Product Details
| Place of Origin | Henan, China | Brand Name | Leadcrete | |
| Model Number | LGP800/1200/130H-E | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

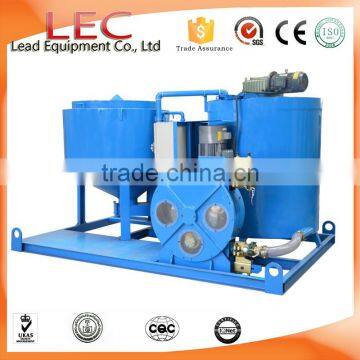

LGP800/1200/130H-E electric mixer agitator grout pump station
Description of electric grout pump :
LGP800/1200/130H-E grout station is a combination of mixer, agitator and hose pump in one plant. Mainly used for highways, railways, water and electricity, construction, mining etc. ground/underground construction. High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout hose pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations.
Feature of electric grout pump :
Ø Compact size, It is combination of mixer, agitator and squeeze hose pump and power in one base frame;
Ø Flow is adjustable.
Ø Squeeze hose pump, hose is the only spare part. It is easy to operate and maintenance.
Ø Butterfly connection mixer and agitator, flexible switching.
Ø Imported electrical components, it is safe and reliable.
Ø High-power and high-speed eddy current pulping, it is fast and evenly.
Ø With CE and ISO Certificate.
Technical data of electric grout pump :
Description | Data |
Grout Station type | LGP800/1200/130H-E |
Dimensions | 2900*1920*1860mm |
Weight | 1770kg |
Mixer | |
Capacity | 800L |
Power | 15Kw |
Rated Rev | 1500rpm |
Suitable water/cement ratio | ≥0.5 |
Mixer type | high-speed eddy current pulping |
Agitator | |
Capacity | 1200L |
Rated Rev. | 36rpm |
Power | 2.2Kw |
Squeeze hose pump | |
Model | LH65-680B |
Output | 30-130L/min |
Power | 7.5Kw |
Working pressure | 1.5MPa |
We also can supply other grouting pump, please click below photo for check:
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
