Home > Products > Industiral pump > Hydraulic Diaphragm Acid Metering Pump

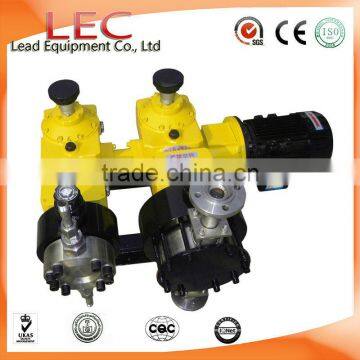

Hydraulic Diaphragm Acid Metering Pump

FOB Price

USD $5,560 - $9,840 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	Leadcrete
Model Number	J-M acid metering pump	Theory	Reciprocating Pump
Structure	Diaphragm Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, electricity	Pressure	Low Pressure
Application	Metering

Product Description

Hydraulical Diaphragm Acid Metering Pump

Product Description

Dosing pump

Dosing Pump in Systems

This Hydraulical Diaphragm Fuel Metering Pump

is a special reciprocating displacement pump, of which the discharge can be infinitely regulated between 0 and 100% to feed corrosive and non-corrosive liquid at a certain amount for the purposes of different process flows. It includes piston metering pump, hydraulic diaphragm metering pump. This product complies with GB/T7728-1996 metering pump standard.

J-M series Hydraulical Diaphragm Fuel Metering Pump

are extensively used in such industries and sectors as petroleum, chemical, water treatment, environmental protection, food, light industry, paper-making, pharmacy, dyeing and finishing, metallurgy and mining.

Processing of Hydraulical Diaphragm Acid Metering Pump

Turning Processing

Milling Processing

Pump Case of Hydraulical Diaphragm Fuel Metering Pump

Chrome or ceramic Composite Worm

More resistant to corrosives, wearness and heat! more accurate dosing!

PTFE Diaphragm

Painting

Testing

Packaging & Shipping

Hydraulical Diaphragm Acid Metering Pump

Features ( Hydraulical Diaphragm Acid Metering Pump )

1.Economy pump with optimal cost performance ratio

2.Simple in construction and easy to repair

3.Driven by eccentric cam gear, compact structure, requiring small room for erection

4.Dip-feed lubrication, requiring periodic replacement of oil only

5.Pushed by double cam ball bearing

6.The discharge is adjustable whether the pump is in operation or not

7.The new Teflon and rubber composite diaphragm is corrosion resistant, has long service life, and is suitable for discharge of various corrosive and hazardous liquid

8.Variety of optional overflowing materials

9.Leak-free, high safety, able to discharge various inflammable, explosive, toxic, radioactive, highly pungent and corrosive liquid

10.High precision one-way non-return valve. Accurate metering, compact conformation, good insulation, long service life, strong interchangeability, low cost, easy installation

Major parameters ( Hydraulical Diaphragm Acid Metering Pump )

1.Rated discharge: 2 - 40000 L/h (0.5 - 10566 GPH)

2.Max. rated pressure: 25 Mpa (3626 PSI)

3.Temperature of medium discharge: -30 – 50°C(100°C for stainless steel)

4.Dielectric viscosity:0.3-800mm²/s

5.Metering accuracy:±1%

Parameter ( fuel metering pump )

J1-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 0.18 kW
J1-M-2/5	2	5
J1-M-3.2/3.2	3.2	3.2
J1-M-5/2.0	5	2
J1-M-8/1.3	8	1.3
J1-M-14/0.8	14	0.8
J1-M-10/5	10	5
J1-M-12.5	12.5	4
J1-M-16/3.2	16	3.2
J1-M-20/2.5	20	2.5
J1-M-25/2	25	2
J1-M-32/1.6	32	1.6
J1-M-40/1.3	40	1.3
J1-M-80/0.63	80	0.63
J1-M-125/0.4	125	0.4
J1-M-200/0.25	200	0.25

J2-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 0.37 kW	Motor 0.55 kW	Motor 0.75 kW
J2-M-5/16	5	16
J2-M-9/10	9	10
J2-M-18/6.3	18	6.3	16
J2-M-22/12.5	22	5		12.5
J2-M-25/4	25	4
J2-M-32/10	32	4	10
J2-M-50/6.3	50	2.5	6.3
J2-M-80/4	80	1.6	4
J2-M-100/3.2	100	1.3		3.2
J2-M-160/2	160	0.8		2
J2-M-250/1.3	250		1.3
J2-M-500/0.63	500		0.63
J2-M-800/0.4	800		0.4
J2-M-1000/0.32	1000		0.32

J3-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 1.1 kW	Motor 1.5 kW
J3-M-22/20	22	12.5	20
J3-M-28/20	28	10	20
J3-M-63/12	63	5	12.5
J3-M-80/10	80	4	10
J3-M-100/8	100	3.2	8
J3-M-125/6.3	125	2.5	6.3
J3-M-160/5	160	2	5
J3-M-200/4	200	1.6	4
J3-M-400/2	400	0.8	2
J3-M-500/1.6	500	0.63	1.6
J3-M-800/1	800	0.4	1
J3-M-1000/0.8	1000	0.32	0.8
J3-M-1600/0.5	1600	0.25	0.63
J3-M-2000/0.4	2000		0.4

J4-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 1.5 kW	Motor 2.2 kW
J4-M-70/20	70	10	20
J4-M-90/16	90	8	16
J4-M-120/10	120	6.3	12.5
J4-M-150/10	150	5	10
J4-M-200/8	200	4	8
J4-M-250/6.3	250	3.2	6.3
J4-M-320/5	320	2.5	5
J4-M-400/4	400	2	4
J4-M-500/3.2	500	1.6	3.2
J4-M-630/2.5	630	1.25	2.5
J4-M-800/2	800	1	2
J4-M-1000/1.6	1000	0.8	1.6
J4-M-1250/1.25	1250	0.63	1.25
J4-M-1600/1	1600	0.5	1
J4-M-2000/0.8	2000	0.4	0.8
J4-M-2500/0.63	2500	0.32	0.63
J4-M-3200/0.5			0.5
J4-M-4000/0.4			0.4

J5-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 5.5 kW	Motor 7.5 kW
J5-M-170/20	170	16	20
J5-M-220/20	220	12.5	20
J5-M-300/20	300	10	20
J5-M-380/20	380	8	20
J5-M-500/16	500	6.3	16
J5-M-630/12.5	630	5	12.5
J5-M-800/10	800	4	10
J5-M-1000/8	1000	3.2	8
J5-M-1250/6.3	1250	2.5	6.3
J5-M-1600/5	1600	2	5
J5-M-2000/4	2000	1.6	4
J5-M-2500	2500	1.25	3.2
J5-M-3200	3200	1	2.5
J5-M-4000/2	4000	0.8	2
J5-M-5000/1.6	5000	0.63	1.6
J5-M-6300/1.25	6300	0.5	1.25

J6-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 11 kW	Motor 18.5 kW
J6-M-620/20	620	16	25
J6-M-780/20	780	12.5	20
J6-M-1000/16	1000	10	16
J6-M-1250/12.5	1250	8	12.5
J6-M-1600/10	1600	6.3	10
J6-M-2000/8	2000	5	8
J6-M-2500/6.3	2500	4	6.3
J6-M-3200/5	3200	3.2	5
J6-M-4000/4	4000	2.5	4
J6-M-5000/3.2	5000	2	3.2
J6-M-6300/2.5	6300	1.6	2.5
J6-M-8000/2	8000	1.25	2
J6-M-10000/1.6	10000	1	1.6
J6-M-12500/1.25	12500	0.8	1.25
J6-M-16000/1	16000	0.6	1

J7-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 18.5 kW	Motor 30 kW
J7-M-1600/20	1600	16	20
J7-M-2000/20	2000	12.5	20
J7-M-2500/16	2500	10	16
J7-M-3200/12.5	3200	8	12.5
J7-M-4000/10	4000	6.3	10
J7-M-5000/8	5000	5	8
J7-M-8000/5	8000	3.2	5
J7-M-10000/4	10000	2.5	4
J7-M-12500/3.2	12500	2	3.2
J7-M-16000/2.5	16000	1.6	2.5
J7-M-20000/2	20000	1.25	2
J7-M-25000/1.6	25000	1	1.6
J7-M-32000/1.25	32000	0.8	1.25
J7-M-40000/1	40000	0.63	1
