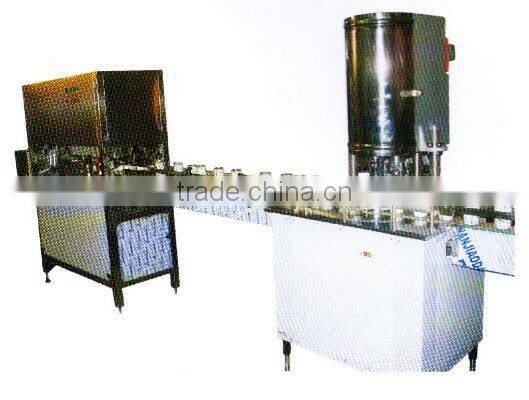

Capacious Filler and Capper

I.

Advanced design

1. This machine is applicable for the filling of containers with different specifications, and the filling specifications can be shifted in several minutes.

2. With short filling period and high productive capacity.

3. It’s not necessary to add the spare parts for changing the specification of filling machine, only adjustment is needed.

4. Users can choose the filling quantity and determine the filling heads according to their own productive capacity.

5. The touch-type operation screen can display production situation, operation procedures and filling method, etc.

6. Every head of the filling machine has been equipped with a bottle neck clamping device to ensure the positioning of filling material accurate.

II.

Unique filling method

1. The design adopted group feeding in and feeding out method of straight line type, which makes the filling function extended and bottles of various shapes can be filled effectively by this equipment.

2. Ideal filling operation can be realized by the powerful support of PLC software.

III.

Precise measurement control

1. The filling adopts fixed flow channel parameter, which can control the filling time to realize the filling of different units of measure.

2. Precise time of pneumatic valve filling can be set to 0.01 second, which can make the measurement precision controlled within the error range of ±1%, reduce the unnecessary material loss and increase the economic benefits of users.

3. The design of every filling head can be adjusted separately to realize the uniform of the filling measurement.

4. This machine has the function of number counting program for bottle feeding, it will stop filling when there is no bottle or the number is not correct, only when the bottle quantity on the counter is the same with the one set beforehand, it will continue to fill.

IV.

Two patent products- Pneumatic Cap Sorter & Pneumatic Capping Machine

1. The pneumatic cap sorter and pneumatic capping machine both adopt the pneumatic method without motor drive. The pneumatic components are all standard components, which make these machines convenient to repair and maintain, so as to prolong the service life of these machines.

2. This machine is applicable to cap sorting and cap sealing of various caps through simple adjustment or changing some parts.

3. Energy saving.

Production capacity (b/h)

2000

Capping head number

1

Filling valve

6

Motor power (kw)

0.37

Dimensions (mm)

below 2L

Gross weight (kg)

400
