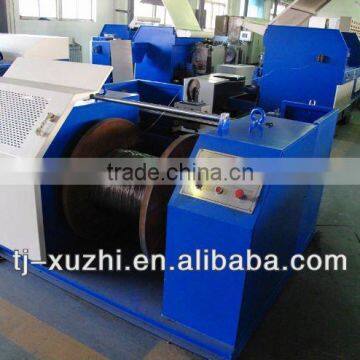

Steel Strip De-coiling Machine

Specifications

Passive strip paying –off with pneumatic braking device

The machine is used in the paying off of steel strip during the production of flux-cored welding wire.

Advantages are:

1.The horizontal design of  steel strip is convenient for the craning of steel strip;

2.Pneumatic tension device is convenient for the positioning of steel strip;

3.Automatic pay-off following up is used to ensure stable pay-off  tension and can be used together with the strip take-up and pay-off machine.

Flux cored wire production line

we are the professional manufacturer of flux cored wire production line, stainless steel wire line, hard facing wire line with high level welding techology and good after sales services, have exported to India, Canada, Turkey, Russia and so on.

Flux-cored wire production line is composed of:

1.    Steel strip pay-off  and take-up machine: Pay off  the strip→ (welding) → dancer  →steel strip take up (φ630~800 bobbin stripe take-up machine);

2.    Preparation: Damping stripe pay-off machine → ultrasonic wave washing and rinsing machine→ Drying machine

3.    Roll forming machine: roll into U type + power delivery device + roll into O type;

4.    Rough drawing unit: 560 take-up machine;

5.    Fine drawing machine: Bobbin  pay-off machine Automatic damping dancer → 400 straight-line drawing machine →Dancer →Polishing machine→ Driving machine →bobbin  take-up machine (φ630~800 bobbin wire take-up machine);

6.  automatic wire pay-off machine with constant tension controlled  by inverter → Dancer → wire layer winding machine;

The production line is applicable for the flux-cored welding wire. Diameter of the finished product: 1.2-1.6.
