China supplier layer winding machina welding wire layer winding machine

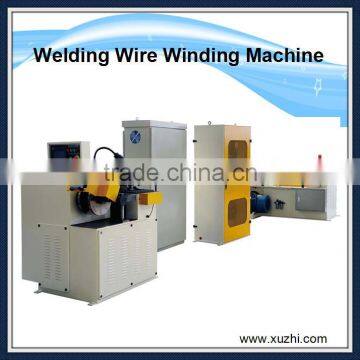

Welding wire layer winding machine

Technical Parameters

1,Suitable for: welding wire and other precision layer-winding-required metal wire

2,Maximum diameter: Φ2.0mm

3,Minimum diameter: Φ0.8mm

4,Maximum winding speed: 23.0m / s

5,Specification of the wire bobbin:Φ800×600mm (can be customized, the user should provide the specific drawing)

6,The pay off machine has the function of winding displacement automatically when reverse the wire.

7,Spool type: D200,D270,D300

8,The maximum weight of each take-up spool: 5kg,15kg,20kg;

9,Wire winding type: Precision layer winding

10,Wire pay off mode: active pay off

11,Brake mode: pneumatic brake

12,Take-up motor specification: 5.5KW, frequency conversion motor

13,The pay off motor specification: 18.5KW, frequency conversion motor

Note: Φ760 × 500 bobbin required 37.0KW frequency conversion motor

14,The main power supply: 380V,60HZ (three-phase five-wire)

15,The gas source standard: 0.45~0.7Mpa

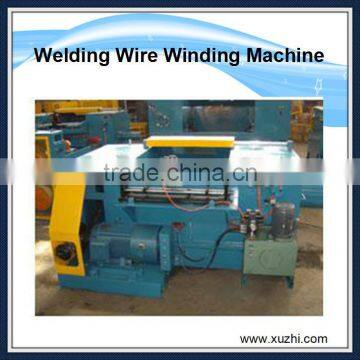

Welding wire layer winding machine

Wooden cases

Or depend on customers

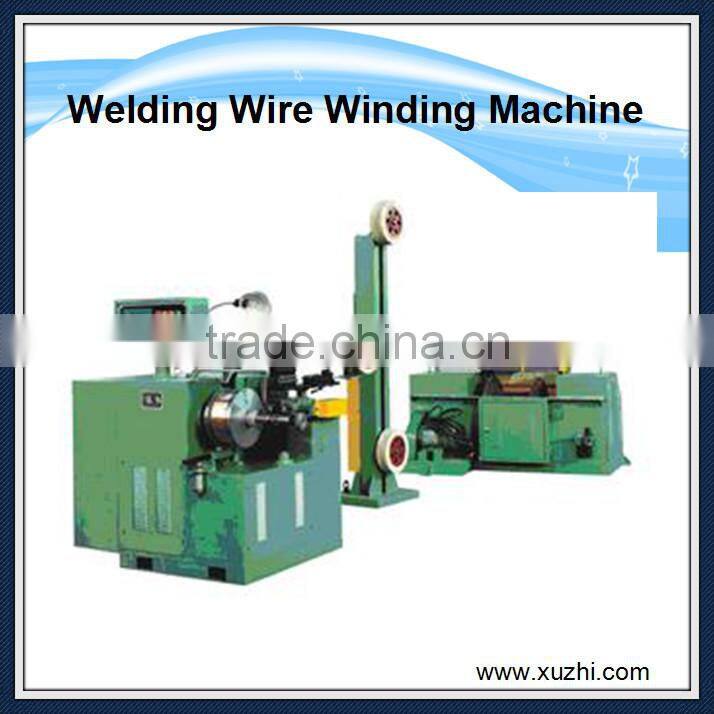

Welding wire layer winding machine

Xuzhi company product scope:

1,Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)

2,Flux cored wire complete line manufacturing
3,Hardfacing & stainless steel etc special flux cored wire product manufacture
4,Provide high quality 2roll-type and 3roll-type of roller die cassette for the following types of customers:
   flux cored wire manufacturer
   solid wire manufacturer

   rebar manufacturer
5,Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
6,Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
7,Metal products auxiliary machine manufacturing (such as: various types of pointing machine,V-type powder mixer,strip slitting machine,argon arc wire butt welder,wire winding machine,drum packaging machine)
8,Potato chips production line

9,Napkin paper productuon line

Welding wire layer winding machine

Xuzhi company was founded in 1998. After years of development, now the company already had the mainstream business which shows in the next item.
Except the mother company “xuzhi company”, we have other companies were built according to professional led division, intensive management framework. At present the company development direction is to professional industry chain deep direction. Thus be dedicated to research and development, design, manufacture industry professional technology of highly sophisticated products.
