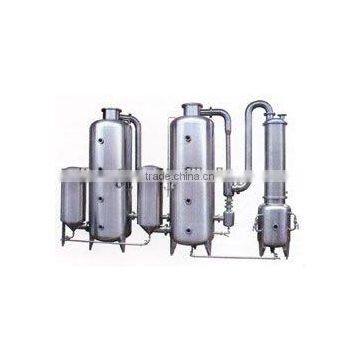

Dual-Effect Concentrator

Specifications

Concentrator

The concentrator is suitable to concentrate the China traditional drug,west drug,dextrose,amylum,monosodium glutamate,food and milk product and chemical material, especially suitable to concentrate the thermal sensitive material under low temperature and vacuum. After our obvious. The client can choose the various concentrator in accordance with the concentration content.

1.Energy-saving profit:In case of SJN-1000,the saves respectively in the terms of vapor,water and electric per year are about 3500 tons,90000 tous and 80000 watt,

2.The device uses the odes of outer-heated natural cycle and vacuum negative pressure evaporation featuring swift evaporation with concentration proportion of 1.2-1.35(in case of normal China traditional immerse cream) without need of open-mouth pan for collecion of cream.

3.The concentrator uses dual-effect to synchronously vapor, which to utmost extent utilize the second vapor. The client can lower investment in boiler and the energy consumption can be 50% less than that of the single-effect concentrator. It is about less than one year that the client can withdraw the investment in the concentrator.
4.Feature of multiple function handle: (1)The reclaimable alcohol concentration is about 80%.(2)The single-effect and dual-effect can time after time collects cream together.(3)The intermittent and continuous material feeding is available.

5.The special structure of concentrator can bring the concentrated material thick taste and even cream quality. The concentration under the seal and non-bubble condition can prevent material loss and pollution. The present material can be concentrated presently, which features immune to block and convenient cleaning which can be make just by opening the up and down covers and can be make by one person.

6.The part inside the concentrator in contact with the material is made with stainless steel SUS304. The thermal layer made with polyurethane is available at the heater and evaporator. The surface is treated with sand grinding and surface polishing, meeting with the GMP standard.
