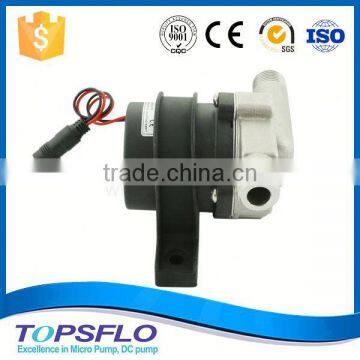

Good for Professional and Amateur Brewers and Wine Makers Pump
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | TOPSFLO | Model Number | TD5 | |
| Theory | Centrifugal Pump | Structure | Single-stage Pump | |
| Usage | Water | Power | Electric | |
| Standard or Nonstandard | Standard | Fuel | Other, Battery, DC power | |
| Pressure | Other, endure 10 bar pressure | Application | Other, Home beer brewing,hot water circulation,solar water heater, home beer brewing,hot water circulation,solar water heater |
Product Description
good for professional and amateur brewers and wine makers pump
Looking for an alternative to expensive Chugger and March pumps? Looking for DC pump to instead of AC pump ? Tired of stripping out threads on the Plastic pump heads? TD5 is the solution you have been looking for! TD5 is the first DC 24V pump made specificly for home beer brewing. TD5 is comparable to the popular Chugger and March pumps in virtually every way except feature a 25% more powerful motor and of course stainless steel heads. Another benefit is that the TD5 is high efficiency ECM brushless DC motor instead of traditional AC pump, it is even safer and smaller.
Product Feature:
1. Food Grade.Full Pump head & pump chamber stainless steel.All wetted materials are food grade
2. High temperature resistant,can continuous circulate 110ºC(230F) hot water
Material is high temperature 150ºC resistant,Material is flame resistant
3. Specialized structure design , Easy to cleaning
Cleaning
The head of the pump is made completely of stainless steel to reduce the risk of contamination.
1. Your regular cleaning should be to simply flush the pump with warm water or warm water with PBW.
2. If you feel that a deep cleaning is needed, the head of the pump can be removed completely by removing the 4 screws on the back of the pump.
3. After removing the head from the main body of the pump you will find 4 screws attaching the head to the impeller housing. These can be removed to open the impeller housing of the pump. Now each part can be soaked as needed.
4. To reassemble please refer to the Structure diagram as above.
Warning
This pump is not self priming. Do not run dry. This Pump will start running when plugged in.Only use with the provided 24V DC power supply. Using the TD5 with another power supply may shorten the life of the pump.
More Features:
High effeciency, max flow rate up to 27LPM / 7GPM & head 5M /19FT
Can continuous working 24hours a day, long lifetime 20000hours
Good heat releasing, less temperature rise
Advanced magnetic driven technology, no leak forever
Blocked-Protection protection,Polarity Protection, Over-voltage protection
| Model | Product Code | Max Water Flow (L/Min) | Rated Voltage (DC) | Rated Current (A) | Max Water Head(M) | Rated Power(W) | Adaptor Type |
| TD5 with adaptor | TD5-A24-2705-P/US | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | USA |
| TD5-A24-2705-P/UK | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | UK | |
| TD5-A24-2705-P/EU | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | European | |
| TD5-A24-2705-P/AU | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | Australia | |
| Note: "P" means DC adaptor power supplying transformer, "US/UK/EU/AU" means adaptor type | |||||||
| TD5 without adaptor | TD5-A24-2705 | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | / |
| TD5-A24-2705 /5V | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | / | |
| Note: TD5-A24-2705 is normal 2 wires type; TD5-A24-2705 is 3 wires with 0~5V speed control wire. | |||||||
Delivery time:
1.The stock samples can be sent to you within 3-5 days by international express after received
2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)
