Soup Processing Equipment

FOB Price

US$ 1,250 - 16,500 / Unit

1 Unit(Min. Order)

Port Ningbo or Shanghai Port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	OEM
Model Number	HHJK	Type	Cooking Equipment
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

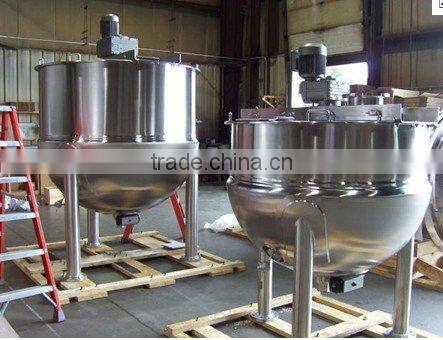

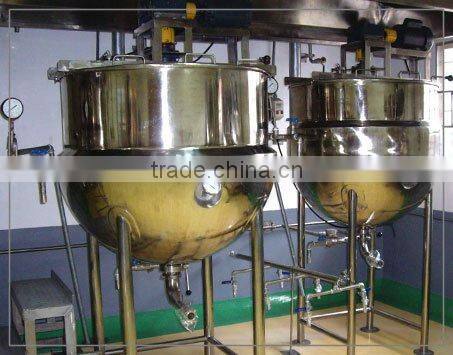

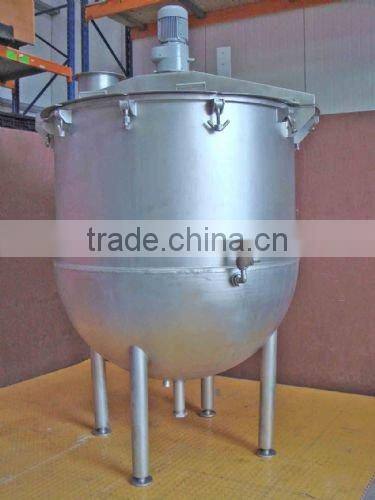

Tilting&Agitation Jacketed Kettle is also called double-lalyered steam cauldron,which

is applied widely for the processing such products as candy ,medicine,dairy,alcohol,cake ,beverage,sweetmeat,can,ets.It is also used to boil
water ,cook,stew,boil porridge,etc in great scale dinning-room or eatery ,which
is a choiceness equipment ,whichis a choiceness equipment in cessing to
advance quality ,shorten time ,improve laboru condition. Characteristics: This pan
takes a certain pressure steam as the mal source,which is with many characteristics
as big being heateds area ,high thrmal efficiency being heated evevnly ,shory
time of boiling,temperature being controlled easily.Inner layer pan body is
made up of acid Cresistant and the malbeauitful figure,easy installation, simple
operation,on the safe side. Jacketed Kettle tank pot

Technical parameter

Type	Metric volume(L)	Dimension Diameter¡Ádeepth(cm)	Form	Working air pressrue(Mpa)	Agitation speed(r/min)	Max tilt angle(Degree)	Pipe diamater of inlet and outlet(inch)	Power of motor(kw)
G50-I	50	52*40	Ttlting	0.3/0.5		90	1/2"
G50-II	50	52*40	Agiltaion	0.3/0.5	36	90	1/2"	0.5
G100-I	100	66.4*48.2	Ttlting	0.3/0.5		90	3/4"
G100-II			Agiltaion		36	90		0.5
G100-III			Fixing			90
G200-I	200	85*57.5	Ttlting	0.3/0.5		90	3/4"
G200-II			Agiltaion		36	90		0.5
G200-III			Fixing			90
G300-I	300	100*65	Ttlting	0.3/0.5		90	3/4"
G300-II			Agiltaion		36	90		0.5
G300-III			Fixing			90
G400-I	400	100*75	Ttlting	0.3/0.5		90	3/4"
G400-II			Agiltaion		36	90		0.5
G400-III			Fixing			90
G500-I	500	110*85	Ttlting	0.3/0.5		90	3/4"
G500-II			Agiltaion		36	90		0.5
G500-III			Fixing			90
G600-I	600	120*95	Ttlting	0.3/0.5		90	3/4"
G600-II			Agiltaion		36	90		0.5
G600-III			Fixing			90
