industrial cooking machine beverage processing jacketed kettle

FOB Price

US$ 560 - 5,680 / Unit

1 Unit(Min. Order)

Port Ningbo or Shanghai Port
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	HH
Model Number	500L	Type	Cooking Equipment
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

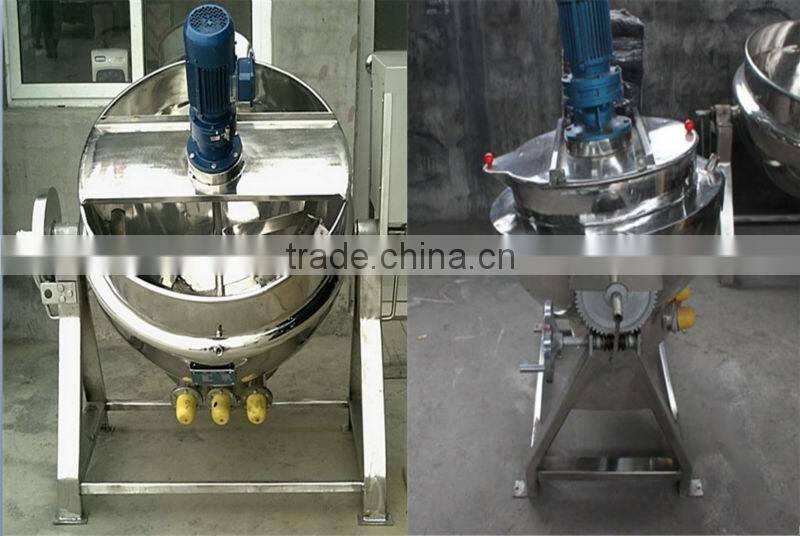

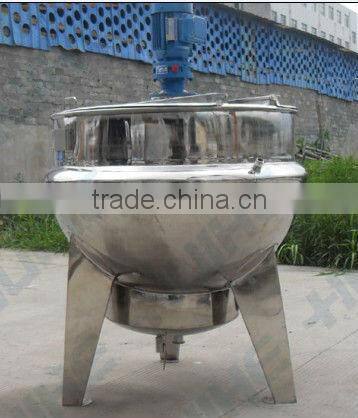

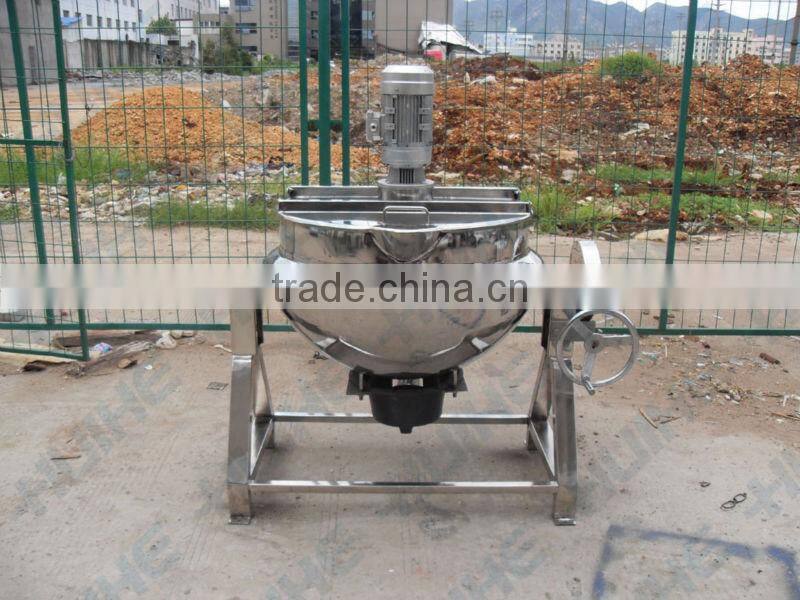

Usage: Stainless steel double-layered cauldron is also called double-lalyered steam cauldron,which is applied widely for the processing such products as candy ,medicine ,dairy,alcohol,cake ,beverage,sweetmeat,can,ets.It is also used to boil water ,cook,stew,boil porridge,etc in great scale dinning-room or eatery ,which is a choiceness equipment ,whichis a choiceness equipment in cessing to advance quality ,shorten time ,improve laboru condition.

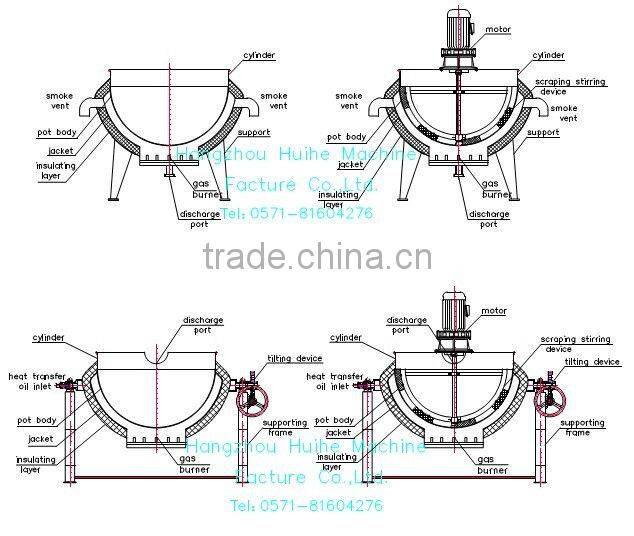

Characteristics: This pan takes a certain pressure steam as the mal source,which is with many characteristics as big being heateds area ,high thrmal efficiency being heated evevnly ,shory time of boiling,temperature being controlled easily.Inner layer pan body is made up of acid-resistant and the malbeauitful figure,easy installation, simple operation,on the safe side.

Technical parameter

Type	Metric volume(L)	Dimension Diameter¡Ádeepth(cm)	Form	Working air pressrue(Mpa)	Agitation speed(r/min)	Max tilt angle(Degree)	Pipe diamater of inlet and outlet(inch)	Power of motor(kw)
G50-I	50	52*40	Ttlting	0.3/0.5		90	1/2"
G50-II	50	52*40	Agiltaion	0.3/0.5	36	90	1/2"	0.5
G100-I	100	66.4*48.2	Ttlting	0.3/0.5		90	3/4"
G100-II			Agiltaion		36	90		0.5
G100-III			Fixing			90
G200-I	200	85*57.5	Ttlting	0.3/0.5		90	3/4"
G200-II			Agiltaion		36	90		0.5
G200-III			Fixing			90
G300-I	300	100*65	Ttlting	0.3/0.5		90	3/4"
G300-II			Agiltaion		36	90		0.5
G300-III			Fixing			90
G400-I	400	100*75	Ttlting	0.3/0.5		90	3/4"
G400-II			Agiltaion		36	90		0.5
G400-III			Fixing			90
G500-I	500	110*85	Ttlting	0.3/0.5		90	3/4"
G500-II			Agiltaion		36	90		0.5
G500-III			Fixing			90
G600-I	600	120*95	Ttlting	0.3/0.5		90	3/4"
G600-II			Agiltaion		36	90		0.5
G600-III			Fixing			90

Update Date:2011-2-21 2:42:18
