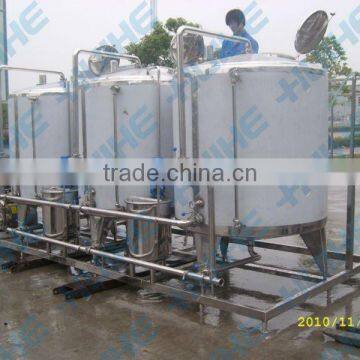

Split CIP cleaning system

CIP cleaning device can be used as a non-resolved production equipment as well as the simple operation method full automatic cleaning system. It almost has been used in all foodstuff, beverage and pharmacy etc.
CIP cleaning device not only can clean the machine, but also can control the microbiology cleaning method.

CIP cleaning device possess the following merits:
1.Make the production plan rationalize and improve the production ability
2.Comparing with washing in hand, it not only hasn't influence the cleaning effect due to different operators, but also it can develop the products quality.
3.It can prevent the dangerous while cleaning operation and save the labor strength.
4.It can save the cleaning agent, steam, water and production cost.
5.CIP cleaning device divides into manual and half-automatic and full-automatic kinds, which can be selected by users

1 CIP Clean In Place Machine
2. equipped with PLC and HMI
3. Used as disinfection tank,liquid composing tank etc.

CIP cleaning equipment

Used as disinfection tank,liquid composing tank,temporary storage tank and liquid blending tank etc.  Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics

Adopt structure of internal tank and external package, with heat preservation materials inside. Materials are all sanitary stainless steel. Humanized structure design and easy to operate. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.

Configuration of tank

Quick open manhole. Various models of CIP cleaning machines. Fly and insect resistant sanitary breathing cover.

Adjustable triangular bracket. Dismountable materials input pipe assembly. Thermometer(According to customer requirements).

Labber(According to customer requirements).

Side blender. Jacket (Miller board, hollow jacket or coil pipe jacketare available according to customer requirements).

Liquid level meter and level controller(According to customer requirements).

Eddy-proof board

Clean Process: Hot clean water → hot alkali tank → clean water → acid clean → Pure water clean

pic 1 one piece automatical CIP

pic 2 one piece

pic 3 manual operate cip cleaning system

pic 4 electric heating cip cleaning system

pic 5  full automatical cleaning system

pic 6 split type cleaning system
