QN+Series Round Concentrator

FOB Price

USD $25,000 - $40,000 / Piece

1 Piece(Min.Order)

Supply Ability 1500 Piece / Pieces per Month
Port ningbo or shanghai port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	hh	Model Number	hh-0021
Processing Types	Carbonated Beverage	Voltage	made to order
Power(W)	5 Kw	Weight	250Kg
Dimension(LWH)	190011002300	Certification	CE
Warranty	12 months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product information:

Introduction:

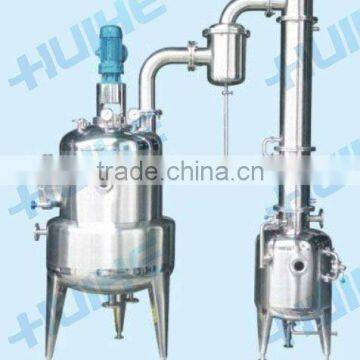

This device mainly includes concentration can, condenser, gas-liquid separator, cooler and liquid receiving barrel.

The concentration can is of clip-sleeve structure; the condenser is of row-pipe type; the cooler is of coiled type. The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc, and as well serves for the recycle of alcohol and simple refluence distillation. The contact part of the concentrator and the material is made with the stainless steel, resistant to corrosion and meeting the standard of the GMP.

Function:

This equipment is manufactured of stainless steel, provided a high-pressured water automatically spraying system. It is possible to get in the cooling water to the clamp cover. The transmission spot uses the mechanical seal. And to guarantee the production process safely as well as to conform to the GMP quality specification, we use the explosion proof electrical machinery.

Technical Pramaters:

Model	QN-300	QN-500	QN-700	QN-1000
Evaporation KG/H	70	120	145	195
Volume	300L	500L	700L	1000L
Jacket pressure	0.09Mpa
Vacuum degree	500-620mmHg
Heating area	1.3	1.6	2	2.8
Condensation area	2.4	3	3.5	4
Weigh KG	380	450	630	950
Length mm	1900	2030	2100	2335
Width mm	1100	1200	1300	1520
Height mm	2300	2500	2600	2765
