Home > Products > Wheat Combine Harvester > combine harvester
combine harvester
- Qingdao Port
- T/T
You May Like
Product Details
| Condition | New | Type | Combine Harvester | |
| Drive Type | Gear Drive | Usage | Other, wheat harvester | |
| Place of Origin | Shandong, China | Brand Name | Dafeng King | |
| Model Number | 4LZ-1.5 | Dimension(L*W*H) | 5800*2400*3000mm | |
| Weight | 2800Kg | Certificate | EPA | |
| Warranty | 1 year |
Product Description
Specifications

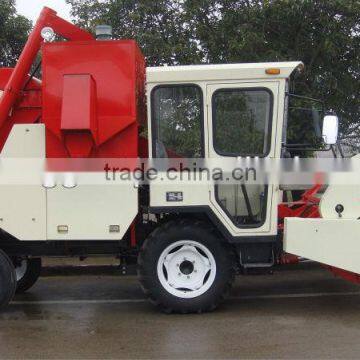

4LZ-1.5 small wheat combine harvester machine+ wheel type self propelled
+1800mm cutter width
+ 55HP diesel engine
+ cabin
Wheel Self-propelled Wheat Combine Harvester
Modle: 4LZ-1.5
Qty’/40HQ: 2 sets
Delivery time: 21 days
Payment term: T/T or L/C
Advantage performance:
It is specialized for harvesting wheat
Adopt Hydraulic steering and runing control , and the Hydraulic control the header lifting
1800mm cutter width is suitable for blockette field
Double re-threshing rollers ,the grain is very clean
Strong reels and and spring-tooth
Technical specification:
Main Performance | |
Loss Rate | ≤1.2% |
Grain Broken Rate | ≤1.0% |
Impurities Rate | ≤2.0% |
Work reliability | ≥93 |
Technical specification sheet | ||||
Type |
| Wheel full feed self-propelled | ||
Model |
| 4LZ-1.5 | ||
Cutting Width | mm | 1800 | ||
Feed | Kg/s | 1.5 | ||
Running speed | Km/h | 2.48-16 | ||
Diesel Engine | Model |
| 4L68 | |
Power | KW | 40 | ||
Rotate Speed | r/min | 2600 | ||
Average Oil Consumption per Hectare | Kg/hm² | ≤27 | ||
Working Productivity | Mu/H | 4-6 (0.27-0.4Hec/H) | ||
Total Weight | kg | 2800 | ||
Dimension (L×W×H) | mm | 5800 | ||
2400 | ||||
3000 | ||||
Ground Clearance | mm | 310 | ||
Header | Reel Type |
| Spring-tined | |
Reel Diameter | Mm | Φ900 | ||
Reel Bat | Piece | 5 | ||
Cross auger Type |
| Screw auger, eccentric extensible link | ||
Cross Auger Diameter | mm | Φ500 | ||
Clearance between Auger and Bed Plate | mm | 12-20 | ||
Cutter bar Stroked | mm | 76.2 | ||
Cutter bar Type |
| Domestic strandard II | ||
Conveyer | Type |
| Flat belt raked tine | |
Width | mm | 400 | ||
Threshing Drum | Type |
| Transverse Axial Flow | |
Diameter | mm | Φ545 adjustable | ||
Length | mm | 1350 | ||
Re-sthreshing Drum | Type |
| Axial flow cutting plate | |
Diameter | mm | Φ190 | ||
Concave | Type |
| Grid based | |
Angle | (°) | 236.8 | ||
Separation Area | m² | 1.38 | ||
Re-threshing Concave | Type |
| Punch type | |
Separation Area | m² | 0.45 | ||
Sieves | Type |
| Double sieves + fan + re-threshing | |
above sieve | m² | 0.76 | ||
bottom sieve | m² | 0.92 | ||
Fan | Type |
| Low-pressure, volute | |
Diameter | mm | Φ346.8 | ||
Elevator Auger Diameter×Thread Pitch | mm | Φ120×116 | ||
Unloading type |
|
| mechanical | |
Tank capacity |
| m3 | 1 | |
Oil Tank Capacity | L | 65 | ||
Operator |
| 1 Person | ||
Qty’/40HC | Sets | 2 | ||
