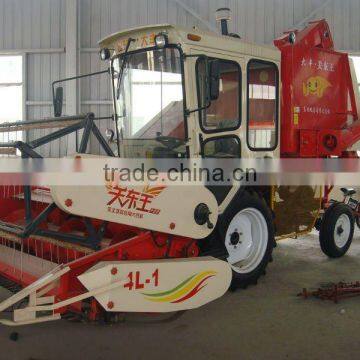

soya combine harvester 4L-1

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Combine Harvester
Drive Type	Gear Drive	Usage	Grain Harvester
Place of Origin	Shandong, China	Brand Name	DAFENG KING
Model Number	4L-1	Dimension(LWH)	6210x3180x2930mm
Weight	3050kg	Certificate	Other, ISO9000
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.bean combine harvester
2.adopt thresher,double-deck sieve
3.auot floating cutter
4.48kw engine

1. Use of automatic profile floating cutter to ensure lowest harvesting height and adapt to the different landform.

2 .Rasp-bar cylinder and spike tooth cylinder to gain much better threshing effect

3 .Use of re-threshing device obtains low loss rate and high cleanliness

4 .To higher purity and loss rate, adopt double louver sieves with adjustable opening.
5 .Reclaim stem and skin separately, be used for feed, more systematic.

6 .To control the loss rate effectively with the centrifugal fan and changeable wind speed

Main Specification

Model	4L-1
Total loss rate	≤3.0
Roughage content	≤5
Broken rate	≤5
Reliability	≥90
Ground clearance	315mm
Feed	1.0kg/s
Oil consumption	≤19kg/hm2
Running speed	2.8-19km/h
Type	Wheeled self-propelled
Harvesting width	2600mm
Feed	1.0kg/s
Working Productivity	0.33-0.66 hm²/h
Engine	40/48kw
Weight	3050kg
Dimension (L×W×H)	6210x3180x2930mm
Grain tank	0.75 m³
