Home > Products > Big wheel loader > 5t 3m3 bucket china wheel loader with joystick and fork

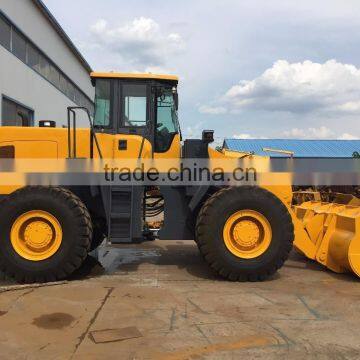

5t 3m3 bucket china wheel loader with joystick and fork
USD $40,800 - $40,800
/ Set
1 Set(Min.Order)
- 15 Set / Sets per Month
- Qingdao port
- T/T
You May Like
-
hydraulic pilot 5 ton wheel loader with joystick
-
5T 4WD wheel loader with best oversea service
-
5Ton zl50 wheel loader with best price list bucket pay loader
-
Chinese new condition 5T solid tyre 4WD wheel loader with best oversea service
-
Cheap 3cbm capacity powerful middle zl50 wheel loader 5t
-
Chinese 5T fork wheel loader for sale with wood clipper
Product Details
| Condition | New | Brand Name | QZCATER | |
| Model Number | ZL956 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7934*3060*3483mm | Rated Load | 5000kg | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
| Rated capacity | 3m³ |
| Rated weight | 5000Kg |
| Operating weight | 17000Kg |
| Max. breakout force | 172.3KN |
| Total time | 11s |
| Max. dump height | 3098mm |
| Dump distance | 1198mm |
| Wheel base | 3200mm |
| Tread | 2250mm |
| Transportation | 7934*3060*3483mm |
Engine
| Model of engine | WEICHAI STEYR WD10G220E22 or CUMMINS 6CTA8.3-C215(TIGER1) or 6CTAA8.3-C215(TIGER2) |
| Pattern | Turbocharger, vertical, water-cooled, 4-stroke, direct injection |
| Rated power | 162KW/160KW |
| Max. torque | 860N.m |
Torque converter and transmission system
| Model of torque device | Torque Converter and Gearbox Combination |
| Model of torque converter | YJSW315-6J01 |
| Pattern | 4-element,single stage |
| Transmission type | Full-power shift, countershaft type |
| Number of gear | 2 forward,1 reverse |
| Max. travel speed | 40km/h |
| Axle | XUZHOU |
| Main reducer type | Arc taper gear, model ration of first grade |
| Pattern of wheel side moderation | Single stage planetary |
Tire
| Tire size | 23.5-25 |
Steering system
| Pattern | Full hydraulic steering system |
| Min. turning radius(outside of bucket) | 7268mm |
| Max. turning angle | 35°±1 |
Implement hydraulic system
| Implement pump | CBGJ2080 |
| Displacement | 250L/min |
| System working pressure | 20.3MPa |
| Distribution device model | DF32 |
| Pilot valve model | DJS |
Brake system
| Brake system | Air assisted oil disc on four wheel |
| Parking brake | Air cutting control inner expand hoof |
Contact Us
- Qingzhou Cater Industry & Trade Co., Ltd.
- Contact nameMegan Wang Chat Now
- Phone86-0536-3205279
- AddressNo. 2799, Jiangjunshan Road
