Home > Products > Big wheel loader > 5t 3m3 bucket front loader with joystick and grapple

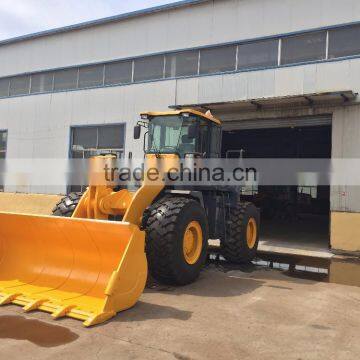

5t 3m3 bucket front loader with joystick and grapple

FOB Price

USD $40,800 - $40,800 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	QZCATER
Model Number	ZL956	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	793430603483mm	Rated Load	5000kg
Certification	CE ISO	Warranty	1 Year
After-sales Service Provided	No overseas service provided

Specifications

Engine

Model of engine	WEICHAI STEYR WD10G220E22 or CUMMINS 6CTA8.3-C215(TIGER1) or 6CTAA8.3-C215(TIGER2)
Pattern	Turbocharger, vertical, water-cooled, 4-stroke, direct injection
Rated power	162KW/160KW
Max. torque	860N.m

Torque converter and transmission system

Model of torque device	Torque Converter and Gearbox Combination
Model of torque converter	YJSW315-6J01
Pattern	4-element,single stage
Transmission type	Full-power shift, countershaft type
Number of gear	2 forward,1 reverse
Max. travel speed	40km/h
Axle	XUZHOU
Main reducer type	Arc taper gear, model ration of first grade
Pattern of wheel side moderation	Single stage planetary

Tire

Tire size

23.5-25

Steering system

Pattern	Full hydraulic steering system
Min. turning radius(outside of bucket)	7268mm
Max. turning angle	35°±1

Implement hydraulic system

Brake system

Brake system	Air assisted oil disc on four wheel
Parking brake	Air cutting control inner expand hoof
