4WD Hydraulic Forklift Loader With CE Approved 16ton Fork Truck Mining Machine

Main Specification Data

Weight

18500kg

Rated load

14000kg

Rated power

162kw

Standard Fork

1500x200x105mm

Max-tractive force

140KN

Max-breakout force

140KN

Max-climbing angle

26^o

Max height of fork when upgrading

3300mm

Max height of fork frame when upgrading

4470mm

Max front overhang distance

1830mm

Overall dimension (LxWxH)

7900x2880x3240mm

Engine

Model

Hangfa WD615.61A

Type

Inline diesel engine with turbo charged direct-injection and dry cylinder liner

Qty of cylinders-bore x stroke

6-126X130mm

Max torque

860N.m

Rated power

162kw

Rated speed

2200r/min

Fuel consumption per hour

≤225g/kw.h

Transmission System

Torque converter

Single-phase 4-element twin-turbine hydraulic torque converter

Torque converter coefficient

4.2

Transmission

Planet hydraulic shift

Gear shift

2 forward, 1 reverse

Speed

Forward I: 0-13.5km/h

Forward II: 0-38km/h

Reverse: 0-18km/h

Front &Rear Driving Axle

Main driving

First gear reduction of helical bevel gear

Wheel reduction

Planet gear transmission of spur gear

Driving type

4 WD

Wheel base

3220mm

Wheel tread

2880mm

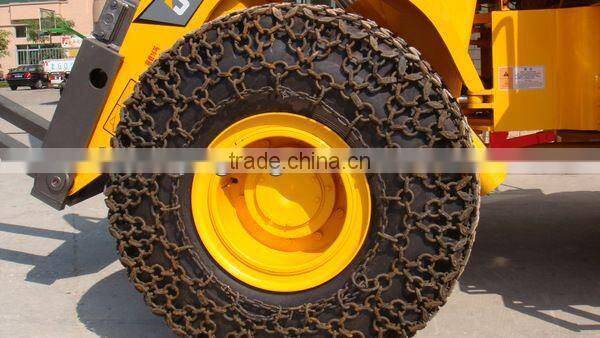

Tyre type

23.5-25(24PR)

Front tyre pressure

0.475Mpa

Rear tyre pressure

0.475Mpa

Steering System

Type

Full hydraulic power steering

Steering angle

35^o each side

Min-turning radius

 Rear outer wheel center:6750mm

Body width (tyre peripheral dimensions)

2880mm

Hydraulic System

System working pressure

16Mpa

Boom lifting time

≤6.1s

total

≤12s

Brake System

Service brake

Air over hydraulic disc brake

Parking brake

Flexible shaft controlled two-shoe internal expansion brake

Fill capacity

Fuel

220L

Hydraulic oil

270L
