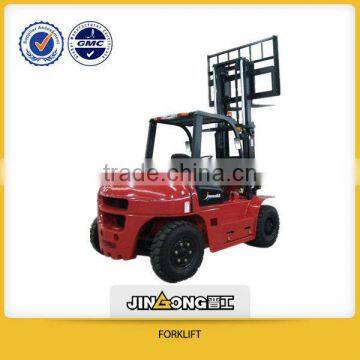

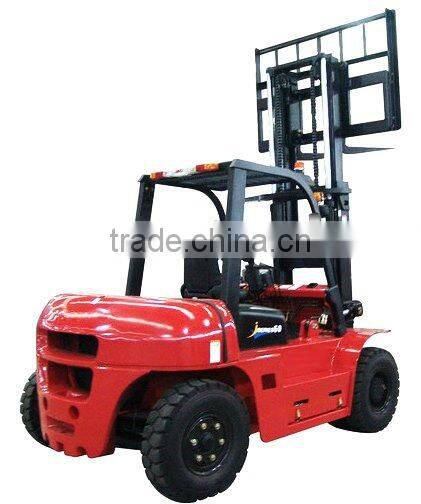

JINGONG OFFICIAL MANUFACTURER CPCD70 Electric/diesel Forklift (ISUZU Engine) FOR SALE

FOB Price

US$ 20,000 - 30,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Fujian, China
Brand Name	JINGONG	Model Number	CPCD70
Type	Manual Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	7000kg	Max. Lifting Height	3000mm
Min. Lifting Height	205	Fork Length	1220
Fork Width	150	Overall Dimensions	21001000mm (LW)
Certification	ISO	After-sales Service Provided	Engineers available to service machinery overseas

Model				CPCD70
Max. rated load			kg	7000
Load center			mm	600
Max .Lifting height			mm	3000
free lifting height			mm	205
Tillifing Angles (Front/Rear )			°	6°/12 °
speed	Max. driving speed	full load I	km/h	9.5
		full load II		28
		empty load I		9
		empty load II		26
	go up	full load	mm/s	325
	go up	empty load	mm/s	380
	go down	full load	mm/s	540
	go down	empty load	mm/s	360
Max. drawing force		full load	kg	6000
Max. drawing force		full load	kg	6000
Max Gradeability (With Load/Without Load )			%(fan)	28
Min. Turning Radius			mm	3370
Exterior Size	Overhead Length	without fork	mm	3573
	Overhead Length	with fork	mm	4793
	Overhead Width	Outboard	mm	1995
	Overhead Width	Frame	mm	1990
	Height	Mast drop	mm	2500
		Front-wheel Overhead	mm	2450
		Max. lift	mm	4420
Tire	Specs	Fornt		4-8.25-15-14PR
Tire	Specs	Back		2-8.25-15-14PR
Wheelbase			mm	2250
Tread		Fornt	mm	1470
Tread		Back	mm	1700
Distance to groud	lowest point(mast)		mm	200
Distance	structure		mm	240
overhang	front		mm	590
overhang	rear		mm	740
Min intersecting aisle			mm	3040
Operation weight			kg	9690
Fork dimension(L×W× H)			mm	1220×150×65
Engine	Model			Chaochai 6102
	Rated Output		Kw/rpm	81/2500
	Rating Torque		N.m/rpm	353/1700
	Number or Cylinder			6
