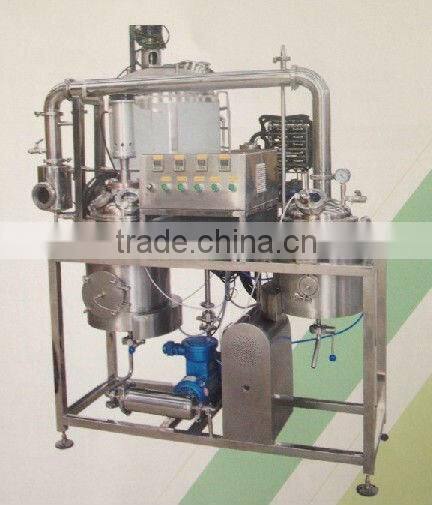

Dynamic Extraction And Concentration Unit

Specifications

Dynamic extraction and concentration unit description:

This dynamic extraction and concentration unit is suitable for medicine, health care products, bio-pharmaceuticals, cosmetics, food and other industries ambient pressure extraction, ultrasonic extraction,ultrasonic essential oils, aromatic oils Ingredient extract and Extraction Vacuum pressure concentrate and other technology.This dynamic extraction and concentration uni is the ideal for universities, research institutes and enterprises, laboratories and pharmaceutical research and development departments of many varieties, small batch production use.

Features of dynamic extraction and concentration uni:

1. Equipment efficiency: This dynamic extraction and concentration uni is the latest ultra-compact ultrasonic dynamic extraction and concentration unit developed by our company's, this device optimize the product on the basis of the original dynamic extraction machine,integrated the small vacuum evaporated device in this device, use the ultrasonic dynamic extraction, extraction, filtration, concentrated under reduced pressure, oil condensate and other production processes to saving raw materials and working hours, work efficiency have been increased by 50% to 100% than the average multi-extraction equipment.

2. Our dynamic extraction and concentration unit with the compact structure, fully exert the features of the ultrasonic shaped type generator, ultrasonic effect to the raw materials directly, using ultrasound to enhanced the mechanical action of Herbal extracts, cavitation, local high vibration, high impact, high sound pressure shearing, so that the extraction time shortened 4/5 or more than traditional methods, medicinal raw material processing capacity big.

3. Regarding the HDT Series Ultrasonic dynamic extraction and concentration unit, the ultrasonic extraction equipment and the vacuum evaporated device can be operate independently in use, it’s can also be linked operation.

4. Material conversion rate high, dynamic extraction and concentration unit is room temperature extraction, the active ingredient of the raw materials is not likely to lose, in the process of the concentrated in vacuo, the evaporated chamber working at the low temperatures, made the active ingredient of the heat-sensitive Within raw materials can be maximize retention. This can be make sure the quality of the material extract better.

5. Shanghai Yuda dynamic extraction and concentration unit adaptability: it’s do not limited to ingredients polarity and molecular size for extract Chinese herbal. It’s applies to the extract of vast majority of Chinese herbal extracts and various ingredients;This dynamic extraction and concentration unit is equipped with water separator and efficient condenser, aroma oils are vegetable oils can be extracted.

Equipment selectable frequency range:15KHz,20KHz,28 KHz,30 KHz,35 KHz,40 KHz,50 KHz,60 KHz,80KHz.

Parameters of dynamic extraction and concentration uni :
