Good Efficiency HC Series of Manual Discharge Centrifugal Concentrator
- qingdao
- T/T
You May Like
-
High Frequency Screen
-
Pumping Dredger
-
Hengchuan Custom Design Quality Guaranteed of Tailigs Magnetic Separator
-
HC Series of Plate Type Magnetic Separator and Iron Separator
-
The New Custom Hengchuan Plate Type Magnetic Separator and Iron Separator
-
The New Custom Hengchuan Double Cylinder Separator With Jaw Crusher
Product Details
| Condition | New | Type | Magnetic Separator | |
| Production Capacity | 80-120tons per hour | Place of Origin | Shandong, China | |
| Brand Name | hengchuan | Model Number | STL100 | |
| Voltage | 22KW | Power(W) | 22000 | |
| Dimension(L*W*H) | 2500*2000*2400 mm | Weight | 2800KG | |
| Certification | Onsite Check | Warranty | The contract shall prevail | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Packaging Detail: Standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery Detail: within 20 days
Product Description
discharge centrifugal concentrator
Company profile
Shandong Hengchuan Ore Machinery Co. , Ltd, established in 2002, is leading ore machinery in china. Company covers area of 20000 square meters.
Our main products :Placer Gold Mining Machine ,Magnetic Separator ,Sand Mining and Washing Machine, Mining Dredgers ,Sand Barges, Particular Vessels, etc. They have been sold not in domestic market, but export to more than thirty foreign countries, like Philippines, Malaysia, North Korea , Mongolia, Cameroon, South Africa, Ghana, Brazil, etc.
Short Introduction
Also known as the Nelson jacket centrifuge centrifuge gravity equipment,is important, it is the use of gravity acceleration principle, a centrifugalore dressing equipment development and production. It is suitable for the alluvial gold, monomer gold recovery lode gold and polymetallic ore,replacing mercury board operation. Can also be used for mining of gold bearing placer gold boat chute and washing down the cleaning operation.Water jacket type centrifuge with manual ore unloading and automaticdischarging two, manual is ore unloading require workers to operate,automatic discharge without manual, automatic flushing speed reversal,discharged from the discharge mouth, discharging cycle for 1-4 hours

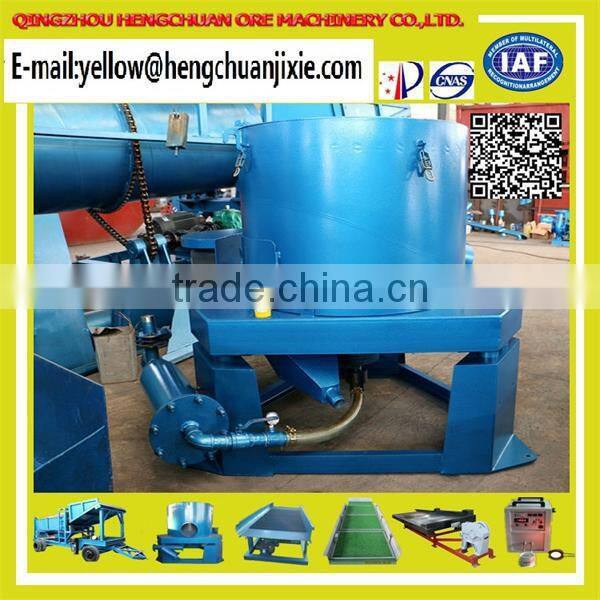

Manual discharge centrifugal concentrator

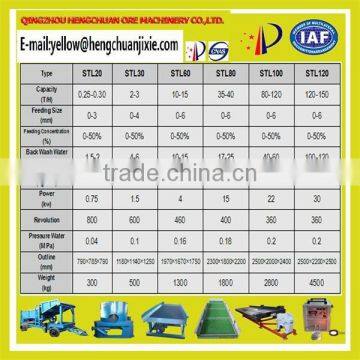

Type | STL20 | STL 30 | STL 60 | STL 80 | STL 100 | STL 120 |
CAPACITY | 0.25-0.30 | 2-3 | 10-15 | 35-40 | 80-120 | 80-120 |
Particle size mm | <6 | <6 | <6 | <6 | <6 | <6 |
Feeding concentration | <50% | <50% | <50% | <50% | <50% | <50% |
Bask washing Water T/h | 5-10 | 10-15 | 40-60 | 60-80 | 80-100 | 100-120 |
OUTPUT kg/T | 2-3 | 10-20 | 30-40 | 60-70 | 70-80 | 80-100 |
POWER kw | 0.75 | 1.5 | 7.5 | 18.5 | 22 | 30 |
Pressure water Mpa | 0.05 | 0.05-0.1 | 0.1-0.15 | 0.1-0.18 | 0.1-0.2 | 0.15-0.2 |
OUTLINE mm | 790*785*790 | 1180*1140*1250 | 1970*1670*1750 | 2300*1800*2200 | 2500*2000*2400 | 2500*2500*2500 |
WEIGHT kg | 300 | 500 | 1300 | 1800 | 2800 | 3200 |
0 | ||||
Pressure water Mpa | 0.1-0.16 | 0.1-0.16 | 0.1-0.2 | 0.15-0.2 |
OUTLINE mm | 1970*1670*1830 | 2300*1800*1870 | 2500*2000*2450 | 2500*2500*3000 |
WEIGHT kg | 1350 | 1900 | 3000 | 4000 |

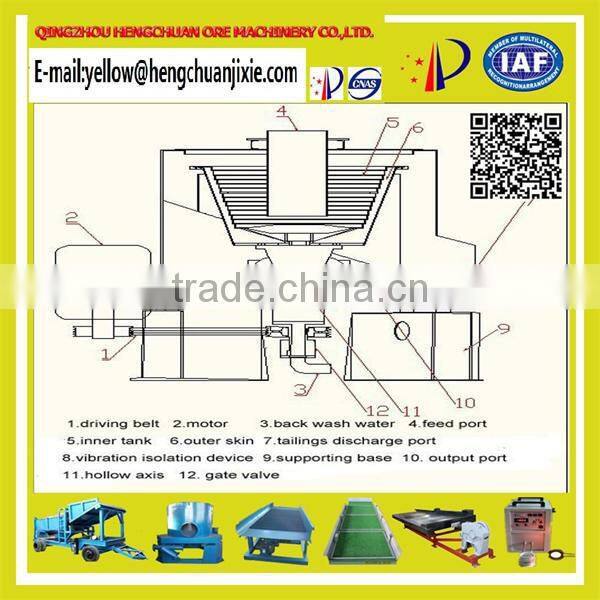

Structure
Water jacket centrifuge is composed of a feed pipe, a frame, a tailing tank, double centrifugal barrel, a drive motor, a vertical shaft and other components.
The working process
Double centrifugal barrel can be divided into two layers, the inner layer islike a washing machine dewatering drum type of vertebral body, stainless steel welding, with an annular spacer bars, there are many small holesinside vertebra wall, outer layer is a cone shape, form a closed water jacket and the inner. In the drive shaft is a hollow shaft, the hollow shaftinto the double pressure water centrifugal barrel inner sleeve is composed of an inner hole, injected into the septum between the flushing water, formation. The need to choose other gold bearing minerals inslurry form by the upper feed pipe into the bottom of the double-layercentrifugal barrel, in high speed under the action of centrifugal force, the pulp slide upwards along the inner cone, monomer gold and other heavy material of heavy precipitation in the septum between, light material slide upwards until the double centrifugal barrel mouth and the tailing tank discharge, isolation between heavy substance in impact anti flushing,heavier matter deposition to the bottom compartment, lighter material andconstantly is entering a new heavy material replacement of a separating strip, after a period of time, to clear out the gold bearing heavy materialisolation between. Ore dressing process is complete.

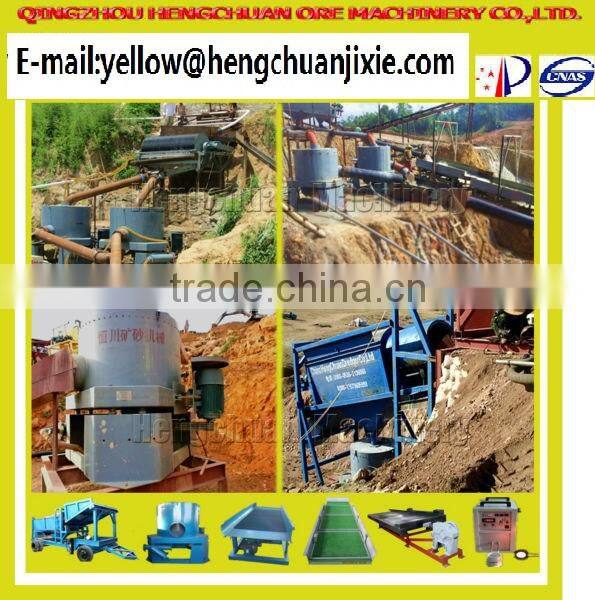

The scope of application
In the mineral processing plant, for gold, silver, copper, tin and otherheavy mineral separation and lighter minerals.
Company qualification.

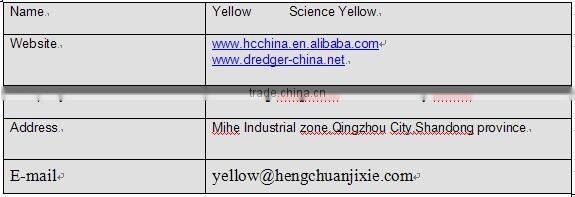

Contact Us
Company Profile
Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers. Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc. Cutter suction dredger is widely used in dredging engineering.The rotating cutting head in the front of the suction pipe can stir slurry,then dredging pump suck the slurry through the suction pipe,then through the discharge pipe to the mud yards.Dredging, transportation and discharge is a whole series work.So the cutter suction dredger is an efficient and economic dredger.We start to manufacture the cutter suction dredger from 2005,gradually accumulated rich experience in this field. Development History: A).Established Magnet Research Institute in 2004,successfully developed the high gradient magnetic separator to 12000-22000GS. B).Cooperated with Shandong Gold Group and doubled the sales scale. C).Developed STL-120 gold centrifugal concentrator in 2008. D).Mature dredger products in 2009. E).Developed successfylly knelson smiliar type automatic discharge type gold centrifual concentrtor and produced them in large quantity for sellling. F).Established Shandong Hengchuan International Trade Co.,Ltd in 2015. Enterprise Spirit -eternal integrity Enterprise Purpose-to consistently exceed customers' expectations Core Values-innovation and leading the future Service Concept- to create value for customers Development Concept - Quality is life; innovation is the driving force Corporate Vision- the world leading supplier of magnetic separation equipment
