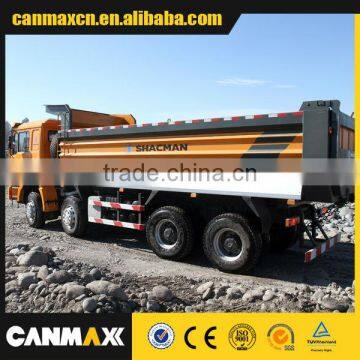

hot selling Dumper truck SHACMAN truck trailer hot sale

Model

 SX3251DM384

Drive type

6×4

Weight

Complete  kerb mass (kg)

12100

GVW (kg)

25000

Dimensions

Max.length(mm)

8329

Max.width(mm)

2490

Max.heigh(mm)

3450

Front / Rear overhang (mm)

1525/1654

Wheel base(mm)

3800+1350

Track width(mm)

2035/1860

Performance

Max.speed (km/h)

74

Min.turning circle(m)

17

Min.ground clearance(mm)

314

Approach / Departure angle (°)

22/30

Max.gradeability(%)

33

Engine

Brand

WEI CHAI

Model

WD12.290

Power(kw/HP)

290

Max.Torque (N.m )/rpm

1500/1200—1600

Displacement (L)

11.596

Emmission Standards

Euro Ⅱ

Transmission

Brand

FAST

Model

10JS140

Control type

manual

Gear Shift

10-forward and 1 reverse speeds

Clutch

Type

Spring plate,diaphragm spring

Diameter (mm)

φ430

Action

mechanical  type,hydraulic and pneumatic operation

Brakes

Type

Drum

Service brake

With dual-circuit
 compressed air brake

Park brake

Power spring brake acting
on rear wheel

Auxiliary brake

WEVB

Option

 ABS

Steering

Type

Integral circulating ball
power sreering

Option

ZF8098

Chassis

Type

Ladder structure with
parallel straight

Dimensions (mm)

300×80×(8+7)

Suspension

Front Suspension

Longitudinal leaf spring

Rear Suspension

Inverted leaf spring stabilizator suspension

Axles

Brand

HANDE

Front axle

7500kg MAN

Rear axle

16000kg(each other) STR
Double reduction driving axle with
inter-wheel differential and differential lock.

Ratio

5.73(Option 4.8)

Tyres

Type (Standard)

12.00R20

Option

11.00R20/12R22.5

Fueltank

Tank capacity (L)

380

Material

Metal

Electrics

Type

24V

Starter

5.58kw(24V)

Generator

1.54kw(28V 55A)

Battery

2×135Ah

Cab

Type

MAN  F2000,  Mid-lengthened flat roof

Equipments

2 rear window, mechanical clerestory,
hydraulic suspension cab,hydraulic chair with seatbelts,one sleeping bed,hydraulic reversal cab,with USB,can play radio with MP3 format

Option

electric windows, electricity heated rear-view mirror,CD,Tachograph;
2 point air suspension,A/C,air suspension driver seat with handle and eatbelts,electricity reversal cab

Other

Platform dimentions(mm)

5600×2300×1500

Platform specification (mm)

Floor 8, Side 4
