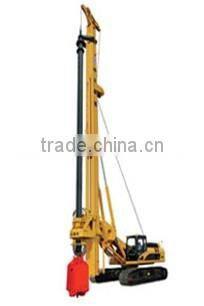

XR230C Rotary Drilling Rig
- shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XCMG | |
| Model Number | XR230C | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
XR230C Rotary Drilling RigMax. drilling diameter:2000mm
Max. drilling depth: 67meter
Engine : CAT C9HHP
Name : XR230C Rotary Drilling Rig
Specification :
Model | XR230C | ||||
|---|---|---|---|---|---|
| Engine | Model |
| CAT C9 | ||
Rated power | kN | 261 | |||
Drill unit | Max. output torque | kN.m | 230 | ||
Rotary speed | r/min | 23 | |||
Max. drilling diameter | mm | Φ2000/Φ2200(with drill pipe+small mast) | |||
Max. drilling depth | Drilling diameterΦ2000 | m | Standard configuration67(friction drag×5) optional configuration80(friction drag×5) | ||
Drilling diameterΦ2200 | special configuration60(friction drag×5) | ||||
Pressurized cylinder | Max. pressure | kN | 200 | ||
Max. hoisting power | kN | 200 | |||
Max. stroke | m | 5.0 | |||
Main winch | Max. hoisting power | kN | 230 | ||
Max. hoisting speed | m/min | 65 | |||
Auxiliary winch | Max. hoisting power | kN | 80 | ||
Max. hoisting speed | m/min | 65 | |||
Mast obliquity sidewise/forwards/backwards | ±5°/5°/15° | ||||
Chassis | Max. travel speed | km/h | 2.1 | ||
Max. gradeability | % | 35 | |||
Min. ground clearance | mm | 395 | |||
Track shoe width | mm | 800 | |||
Max. track width | mm | 3000~4300 | |||
Hydraulic system | Working pressure | Mpa | 35 | ||
Overall operating weight | t | 72 | |||
Dimension | Working condition | mm | 8735×4300×21927 | ||
Transportation condition | mm | 16155×3000×3445 | |||
