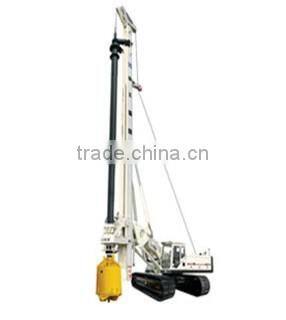

XR220D Rotary Drilling Rig
- shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XCMG | |
| Model Number | XR220D | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
XR220D Rotary Drilling RigMax. drilling diameter:2000mm
Max. drilling depth: 68meter
Engine : Cummins
Name : XR220D Rotary Drilling Rig
Specification :
Model | XR220D | ||||
|---|---|---|---|---|---|
| Engine | Model |
| CUMMINS QSL-325 | ||
Rated power | kW | 242 | |||
Drill unit | Max. output torque | kN.m | 220 | ||
Rotary speed | r/min | 7~22 | |||
Max. drilling diameter | mm | Φ2000 | |||
Max. drilling depth | m | Standard configuration67.5(friction drag×5) optional configuration53(lock×4) | |||
Pressurized cylinder | ure | kN | 200 | ||
Max. hoisting power | kN | 200 | |||
Max. stroke | m | 5 | |||
Main winch | Max. hoisting power | kN | 230 | ||
Max. hoisting speed | m/min | 70 | |||
Auxiliary winch | Max. hoisting power | kN | 80 | ||
Max. hoisting speed | m/min | 60 | |||
Mast obliquity sidewise/forwards/backwards | ±4°/5°/15° | ||||
Chassis | Max. travel speed | km/h | 1.5 | ||
Max. gradeability | % | 35 | |||
Min. ground clearance | mm | 468 | |||
Track shoe width | mm | 800 | |||
Max. track width | mm | 3500~4400 | |||
Hydraulic system | Working pressure | Mpa | 32 | ||
Overall operating weight | t | 70 | |||
Dimension | Working condition | mm | 10260×4400×22120 | ||
Transportation condition | mm | 16355×3500×3510 | |||
