3.5tons long boom handler

FOB Price

USD $60,250 - $63,100 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	XCMG	Model Number	XT670-140
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	3.5T	After-sales Service Provided	Overseas service center available

1.Perkins engine.
2.Stable working device and efficient operating system.

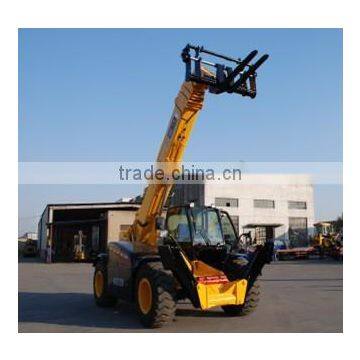

XT670-140 Telescoping handlers is a kind of Multi-functional engineering machinery.

It can be used for lift and carry, with good stability and efficiency. It has compact

frame, flexible operation, sensitive lift, automatic adjustment, high carrying capacity.

Model		XT670-140
Description	Unit	Specificatons
Overall dimensions(LWH)	mm	6291×2500×2600
Working weight	kg	10500
Min.ground clearance	mm	370
Wheel base	mm	3250
Tread	mm	1970
Engine Model		PERKINS/1104D-44T//Duzts TD226B-4IG2
Rated power	kw	74.5/70
Rated speed	r/min	2200
Displacement	L	4.4
No.of cylinder		4
Max. speed	km/h	23
Fork length	mm	1200
Rear	mm	1191
Departure angle	°	36
Min.turning radius	mm	4238
Max. climbing capacity	°	30
Foot brake/brake oil pressure	Mpa	wet type/4.5
Hand brake		wet type
Working specs		outriggers on ground	outriggers are not on ground
Maximum lift capacity	Kg	3500	3500
Lift capacity to full height	Kg	3150	1350
Lift capacity at full reach	kg	900	225
Lift height	mm	13700	13500
Reach at maximum lift height	mm	1500	1955
Maximum forward reach	mm	9400	9457
