32m Telescopic boom Self-propelled aerial work platform

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China		Brand Name	SINOBOOM
Model Number	GTBZ32

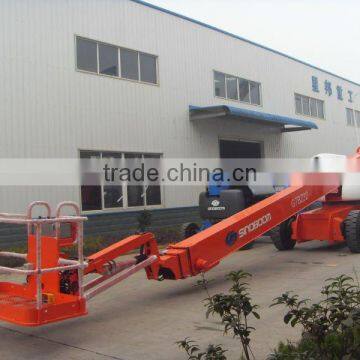

32m Telescopic boom Self-propelled aerial work platform
1.Platform height 32m
2.Lift capacity 250kg
3.Weight 18820kg

32m Telescopic boom Self-propelled aerial work platform

Item	Measurement	Item	Measurement
Dimensions		Productivity
Overall length(stowed)	14.02M (46ft)	Platform height max.	32M (105ft)
Overall width(stowed)	2.49M (8ft)	Working height max.	34M (112ft)
Overall height(stowed)	3.08M (10ft)	Horizontal reach max.	24.4M (80ft)
Ground clearance	0.25M (0.8ft)	Turntable rotation	360°continuous
Wheelbase	3.66M (12ft)	Platform rotation	160°
Overall weight	18820kg (4WD)	Platform Load capacity	250kg (non-restricted)
Platform Size (LWH)	1.830.761.1M (6ft 2.5ft 3.6ft)	Grade ability	40% (4wd)
Platform levelling	Automatic	Turning radius(outside)	5.57M (18ft)
Tire specification	12.00-20	Turning radius(inside)	2.56M (8ft)
Tire type	Solid	Turntable tailswing	1.82M (6ft)
Power		Max. Driving Speed	4.4KM/H
Hydraulic tank vol.	200L	Driving Speed (stowed)	0~4.4km/h
Hydraulic system vol. (inc. the tank)	300L	Driving Speed (extended)	0~1.1km/h
Fuel tank vol.	150L	Max allowable wind force	12.5m/s
Control voltage	24V	Max allowable slope	3°
Engine	Original Cummins B3.3 80hp	Max noise on normal use	82dB(A)
Drive & steer model	4WD*4WS	Max allowable side force	400N
