Home > Products > Aerial work platform > 27m Telescopic boom Self-propelled aerial work platform

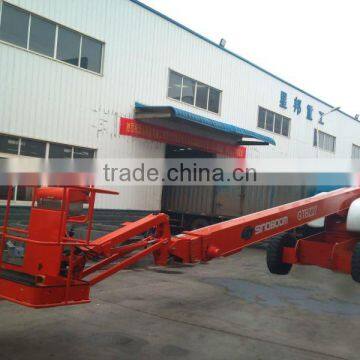

27m Telescopic boom Self-propelled aerial work platform
- any port of China
- T/T
You May Like
-
28m Telescopic boom Self-propelled aerial work platform
-
30m Telescopic boom Self-propelled aerial work platform
-
14m Articulated boom Self-propelled aerial work platform
-
15m articulating boom Self-propelled aerial work platform
-
32m Telescopic boom Self-propelled aerial work platform
-
36m Telescopic boom Self-propelled aerial work platform
Product Details
| Place of Origin | Hunan, China | Brand Name | SINOBOOM | |
| Model Number | GTBZ27 |
Product Description
Specifications
27m Telescopic boom Self-propelled aerial work platform1.Platform height 26.7m
2.Lift capacity 250kg
3.Weight 16200kg
27m Telescopic boom Self-propelled aerial work platform
Item | Measurement | Item | Measurement |
Dimensions | Productivity | ||
Overall length(stowed) | 12.37M (40ft) | Platform height max. | 26.7M (88ft) |
Overall width(stowed) | 2.49M (8ft) | Working height max. | 28.7M (94ft) |
Overall height(stowed) | 2.8M (9ft) | Horizontal reach max. | 23.4M (77ft) |
Ground clearance | 0.33M (1.1ft) | Turntable rotation | 360°continuous |
Wheelbase | 3.0M (10ft) | Platform rotation | 160° |
Overall weight | 16200kg (2WD) | Platform Load capacity | 250kg (non-restricted) |
16270kg (4WD) | |||
Platform Size (L*W*H) | 1.83*0.76*1.1M (6ft *2.5ft *3.6ft) | Grade ability | 35% (2wd) |
40% (4wd) | |||
Platform levelling | Automatic | Turning radius(outside) | 5.84M (19ft) |
Tire specification | 12.00-20 | Turning radius(inside) | 2.44M (8ft) |
Tire type | Solid | Turntable tailswing | 1.32M (4.3ft) |
Power | Max. Driving Speed | 5.2KM/H | |
Hydraulic tank vol. | 170L | Driving Speed (stowed) | 0~5.2km/h |
Hydraulic system vol. (inc. the tank) | 270L | Driving Speed (extended) | 0~1.1km/h |
Fuel tank vol. | 125L | Max allowable wind force | 12.5m/s |
Control voltage | 24V | Max allowable slope | 3° |
Engine | Original Cummins B3.3 80hp | Max noise on normal use | 82dB(A) |
Drive & steer model | 2WD*2WS | Max allowable side force | 400N |
