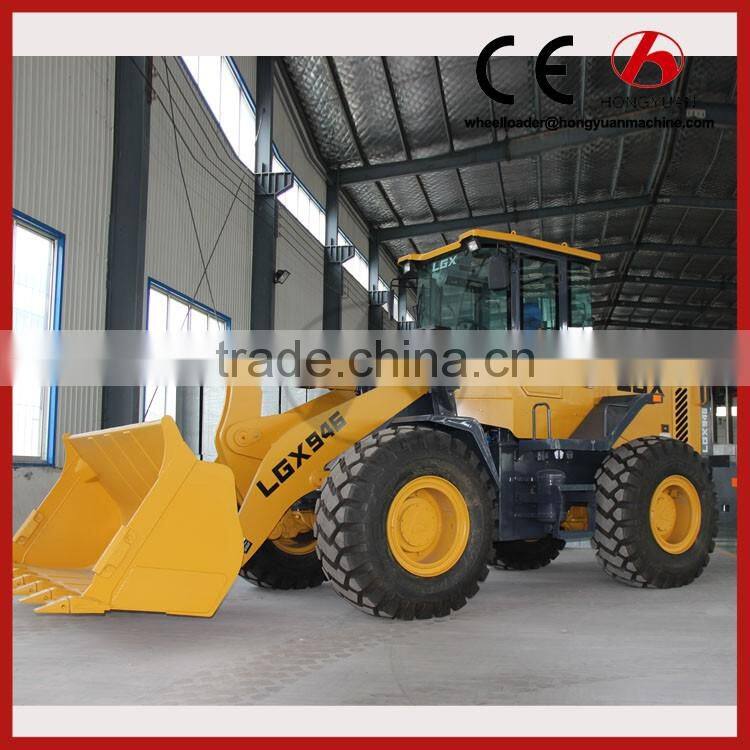

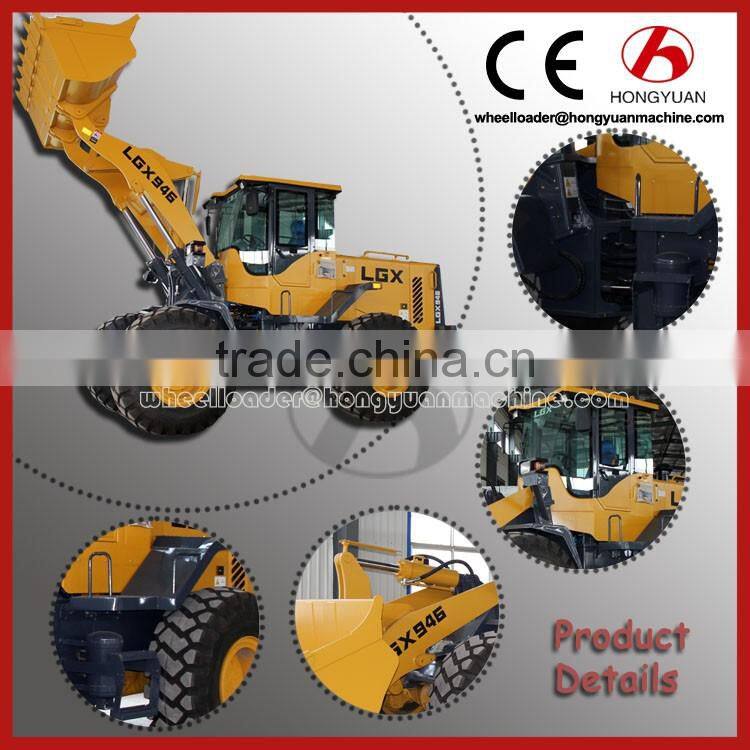

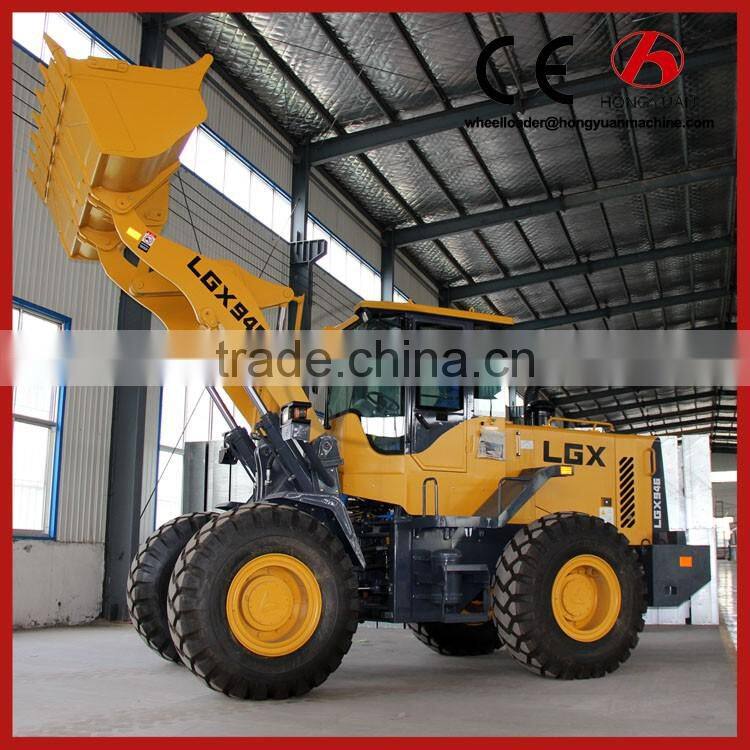

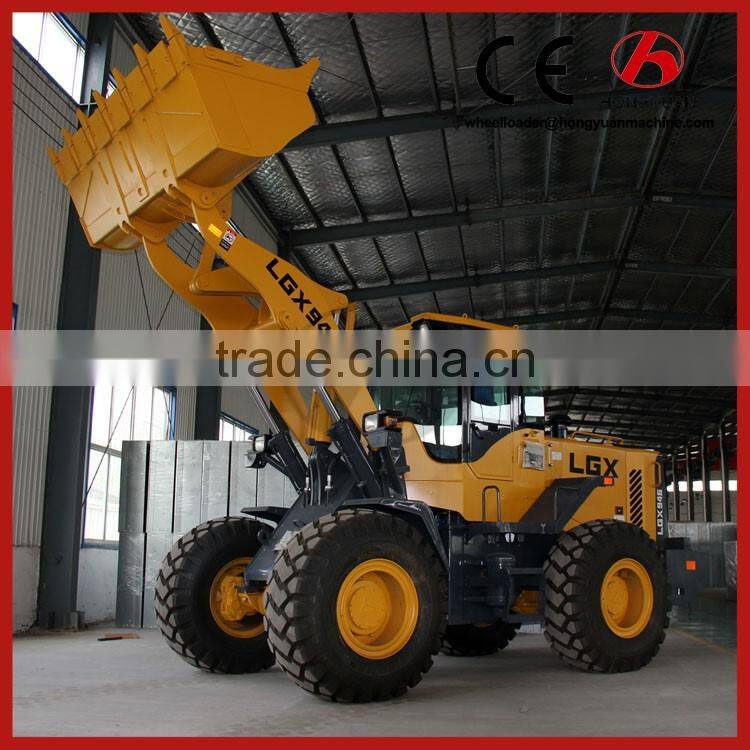

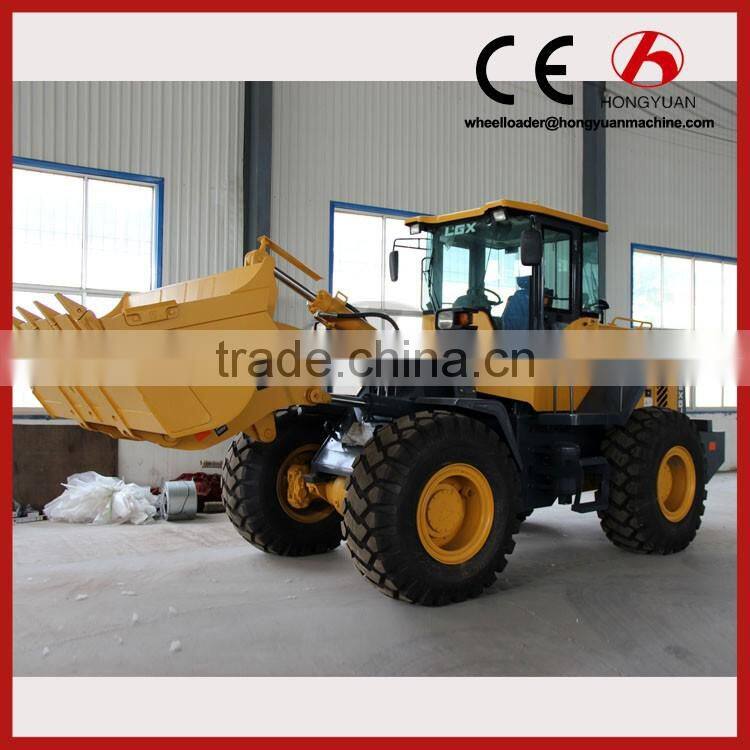

2016 China Moving Large Wheel Loader With 4t Loading Capacity

Engine:

Model:WP6G160E20

Pattern:water-cooler.wetcylinder.direct injection.

Rated power:118kw

Max.torque:640N.m

Torque converter and transmission system:

Torque converter type:4-element single stage two phase.

Transmission type:planetary power shift

Number of gear:2 forward,1 reverse

Max.travel speed:38km/h

Specifications:

Bucket capacity:2.3m³

Transportation dimension(L*W*H):7295*2574*3324mm

Wheelbase:3200mm

Thread:2250mm

Max.breakout force:≥125KN

Max.dumping height:2950mm

Dump distance:1055mm

Total time:10.2s

Operating weight:12700kg

Axle:

Main reducer Pattern:spiral bevel gear first reduction

Pattern of wheel side moderation:Single stage planetary

Tire:

Tire size:20.5-25

Steering system:

Pattern:Full hydraulic steering system

Max.turning radius(outside of bucket):6116mm

Max. Turning angle:38°

Hydraulic system:

Implement pump:P4800-F100

Displacement:100ml/r

System working pressure:16MPa

Distribution device model:DF32

Pilot valve model:DJS

Brake system:

Service brake:Air-on-oil caliper-disc

Parking brake:Manual caliper disc

Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer and exporter of

wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient transportation access.All

of our products comply with international quality standards and are greatly appreciated in a variety of different

markets throughout the world. We have over 100 employees to reach an annual sales e that exceeds

USD10,000,000, and we are currently exporting 100% of our product worldwide.We also have approved Real CE

Certificate through Germany TUV company.

Our well equipped facilities and excellent quality control throughout all stages of production enable us to

guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,ZL15,

ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with more

than 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift, Sugarcane

loader, Site Dumper, etc. As a result of our high quality products and outstanding customer service, we have

exported to Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia,

Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea, Malaysia, Indonesia, Vietnam, Cambodia, Australia,

Canada, USA, Brazil, Argentina, Uruguay etc.

      If you are interested in any of our products or would like to discuss a customer order, please feel free to

contact us. We are looking forward to forming successful business relationships with new clients around the

world in the future.
