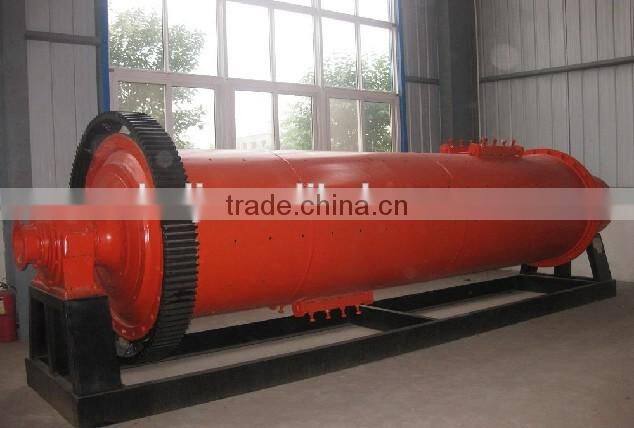

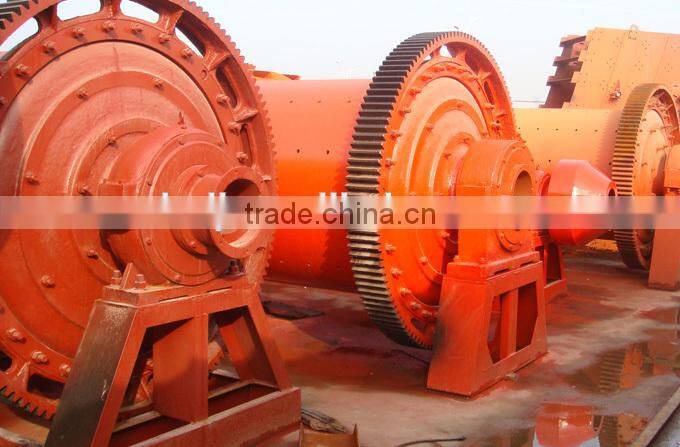

Grinding ball mill machine for barite ore with competitive price

Grinding ball mill machine for barite ore with competitive price :

This ball mill machine changes the intrinsic grinding machine structure. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.

Grinding ball mill strucuture:

Ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, motor, electrical control) and so on.

The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.

Grinding ball mill Working Principle:

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Grinding ball mill maintenance:

1.when the ball mill running,the main bearing temperature is not more than 55℃

2.All lubricate oil should be put out after the ball mill continuously running one month,clean completely,replace new oil.and change oil every 6 months

3.Check the every lubrication point and oil surface hegith every 4 hours.

4.When the ball mill normally running,the driving bearing and the gearbox temperature is not more than 55℃,the hihest not more than 60℃

5.Every connection fastening parts no loose,joint surface is no oil leakage,no water leakage,ore leakage.

6.Girth gear gear face can be used sequentially with another side if one side is severe wear.

7.The liner bolts should be replaced if cause the liner loose.

8.The ball mill grid plate should be replaced if severe wear.

9.The ball mill liner should be replaced if 70% wear or have 70mm crack.

10.If find abnormal conditions,should stop and maintain.

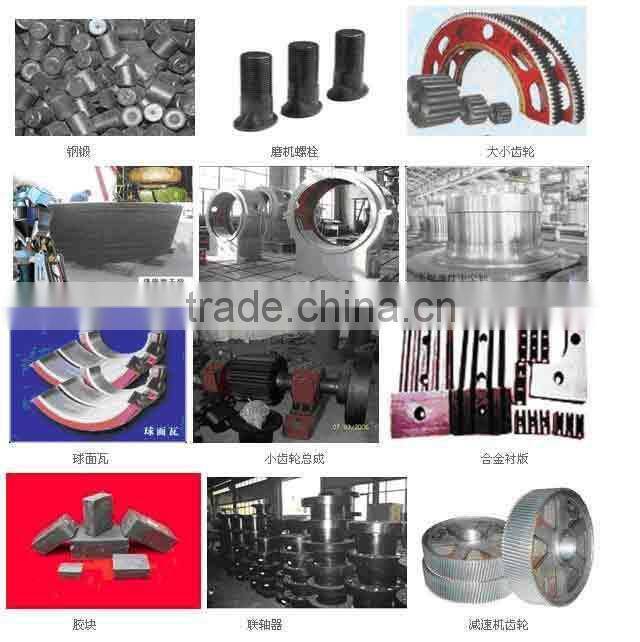

Grinding ball mill spare parts:

Grinding ball mill main technical parameters:
