New Ore Chute Feeder With Nice Price on Selling
- Qingdao Shanghi
- T/T D/P D/A Credit Card
You May Like
-
Mining Ore Vibrating Feeder Machine GZD Series
-
Top Quality Double Roller Extruder Granulator for Inorganic Fertilizer Industry
-
Top Quality Double Roller Pelletizer Machine for Fertilizer Production With Low Price
-
Top Quality Double Roller Granulator Machine for Inorganic Fertilizer
-
Top Quality Double Roller Pelletizer for Fertilizer Production With Low Price
-
Animal Feed Double Roller Granulator for Making Feed Balls
Product Details
| Condition | New | Application | orr feeding | |
| Power Type | Electric | Capacity(t/h) | 30-50 t/h | |
| Place of Origin | Henan, China | Brand Name | Lanji | |
| Model Number | 800*700 | Power(W) | 2.2-7.5 Kw | |
| Dimension(L*W*H) | 3.0*1.2*1.5m | Weight | 0.2-3 T | |
| Certification | ISO9001 | Warranty | 2 Years | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
ore chute feeder:1.Low energy consumption.
2.Long durability.
3.Simple structure.
4.Finely processed.

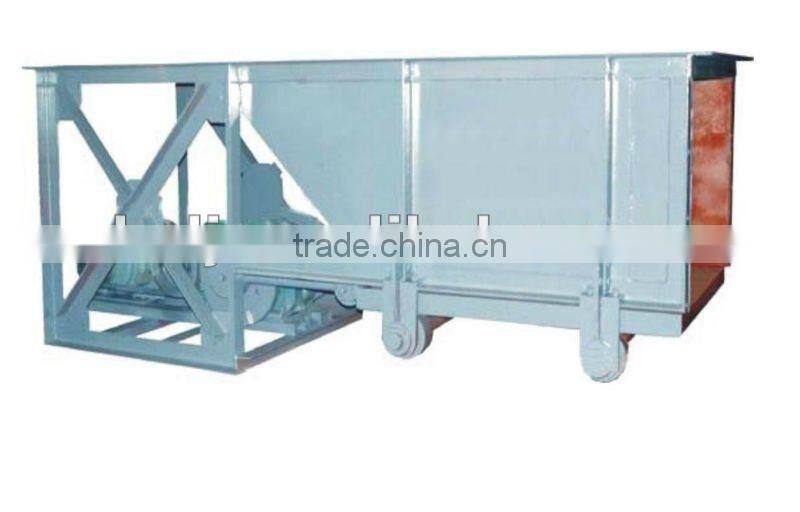

New ore Chute Feeder with nice price on selling

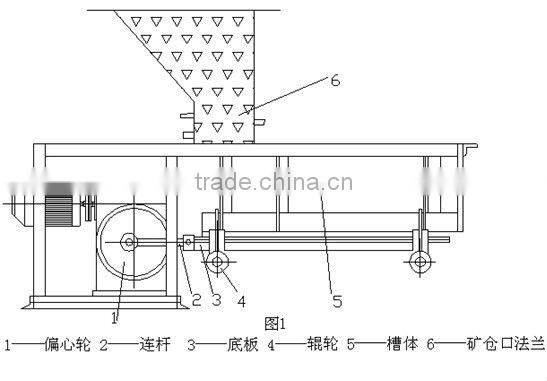

1. Introduction of mine chute feeders :
The mine chute feeders can be installed on the ground or onto discharge port of ore bin. The chute bottom plates do the reciprocating movement, the movement frequency is 20-60 times/min and the stroke is 20-200mm. Stroke can be adjusted by the eccentric wheel; the eccentric throw is half of the stroke. According to experience of some mine sites, the eccentric throw should no less than 30mm for cohesive ore. The chute width is 2-2.5 times of maximum feeding granularity. The biggest chute feeder can supply ore with granularity less than 500mm. the most common specification is 980*1200 chute feeder, with feeding granularity between 350-0mm, which is the best partner of 400*600 jaw crusher.
2. Application of mine chute feeders :
The mine chute feeders is suitable for concentrating coal, chemical and other industry departments, the granular and pieces materials are carried into different set from the storage bin, but not suitable for carrying the concentrate power and other power materials.
3. Technical parameters:
Type | Feed opening (mm) | Max. feeding size (mm) | Capacity (t/h) | Power (kw) |
400*400 | 400*400 | 100 | 2.5-3 | 2.2 |
600*500 | 600*500 | 200 | 5-10 | 4 |
800*700 | 750*600 | 250 | 20-40 | 5.5 |
980*1200 | 900*700 | 250 | 30-50 | 7.5 |
