Stable Performance Low Consumption Vibrating Feeder Controller for Selling

FOB Price

US$ 1,500 - 25,000 / Set

1 Set(Min. Order)

Port Shanghai or Qingdao
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	mine coal construction materials metallurgy
Power Type	Diesel	Capacity(t/h)	120-210t/h
Place of Origin	Henan, China	Brand Name	Lanji
Model Number	GZD-960*3800	Power(W)	11kw
Dimension(LWH)	385019501630	Weight	3.98t
Certification	ISO	Warranty	1 YEAR
After-sales Service Provided	Overseas service center available

Product Description

Specifications

the feature of vibrating screen
1.stable structure
2.strong vibrating force
3.long working life
4.safety operation

Stable performance low consumption vibrating feeder controller for selling

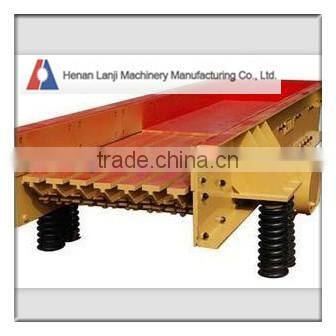

Vibrating feeder

Vibrating feeder can feed block or granule materials from the material storage to charging device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials. Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine ion, building materials, chemicals, etc..

Vibrating feeder working principle:

GZD series vibrating feeder consists of vibrating body, vibration exciter, spring pedestal, transmission device, etc. The vibration of vibrating feeder is caused by vibration exciter, which consists of two eccentric shafts (driving shaft and driven shaft) and gear. The motor drives the driving shaft through V belt, and the gear of driving shaft occludes the driven shaft and causes it to move. The driving and driven shafts move in opposite direction, and the vibrating body begins to vibrate, the materials flow constantly, and the aim of transmission is accomplished.

Technical Data:

Model	Funnel size(mm)	Max feed size(mm)	Production capacity(T/H)	Power(kw)	Weight(t)	Overall dimensions(mm)
GZD850*3000	850*3000	400	80-120	7.5	3895	311018001600
GZD960*3800	960*3800	500	120-210	11	3980	385019501630
GZD1100*4200	1100*4200	580	200-430	15	4170	440020501660
GZD1100*4900	1100*4900	580	280-500	15	4520	520020501700
GZD1300*4900	1300*4900	650	450-600	22	5200	520023501750
