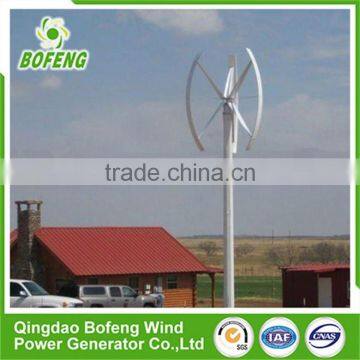

Iso9001 Quality Ensure Low Price 3000w vertical axis wind turbine china for sale

Power(w)

3000

Rated wind speed (m/s)

11

Rotor diameter(m)

3

Start-up wind speed (m/s)

3

Height of blade(m)

3.6

Range of working wind speed(m/s)

3-25

Material of blades and numbers

Glass Fiber Reinforced Plastic/3

Survival wind speed (m/s)

50

Rated rotor speed (m/s)

150r/min

Output Voltage

AC110/220V

Speed regulation method

Electromagnetic control

Stop method

Electromagnetic brake

Wind energy utilized   efficient

30%-40%

Sweep wind area

8.6m2

Range of working temperature

-45°C-60°C

Suggested supporting battery

18pcs12v100ah

Top weight (kg)

325kg

Tower type and height

Free standing tower/8m

(W)Rated out power

3KW

(RPM)Rated Rotation Speed

150

 (A)Recified DC current at Rated Output

15

(N.M)Requied Torque Ar Rated Power

<115

(Ohms)Phase Resistance

9.8

 (mm)Output Wire Square  Section

80

 Insultation:

F

 Generator configuration

Three phase star conected output

 Design Lifetime:

>20  Year

(Kgs)Weight

105

(NM)Starting Torque

≤5.4

 Bearing Type:

High standard NSK Bearing

 Shaft Material

High standard Stainless steel

 Outer Frame Material

spheroidal-graphite cast iron

 Fasteners(nuts and bolts)

High standard Stainless steel

 Winding Temperature Rating:

180 Degarees Celsius

Product Model

3Kw

Rated Battery Voltage

210V

Rated Wind Turbine Maximum Power

3KW

30A

Rated Wind Turbine Maximum Instantaneous Input Power

6KW

Unload Voltage(factory default)

252V

Unload Current (factory default)

25A

Rated PV Power

900W

Control Mode

PWM

Display Mode

LCD

Display Parameters

Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power .Etc

Range of working Temperature &Humidity

-20~+55°C/35~85%RH(Without Condensation)

Quiescent Current

≤30mA

In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement.

Rated Output Capacity

2KVA

Rated Battery Voltage

220VDC

Rated Output Capacity

3 kVA

Over Voltage Shutoff

306VDC

Over Voltage Recovery

297VDC

Under Voltage Shutoff

189VDC

Under Voltage Recovery

220VDC

No Load Loss

0.1A

Output Wave Form

Pure Sine Wave

Display Mode

LCD

Display parameters

Battery Voltage, State parameters

Cooling Mode

Fan

Display Parameters

Battery Voltage ,Output Voltage, State Parameters

In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement.
