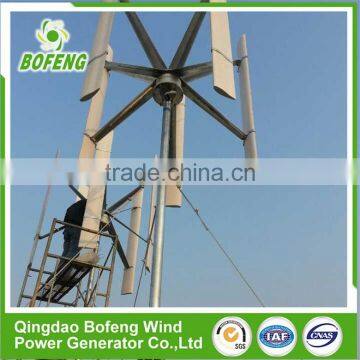

Factory Big Scale Long Life roof-mounted 2kw vertical axis wind turbine price

Power(w)

2000

Rated wind speed (m/s)

11

Rotor diameter(m)

2.3

Start-up wind speed (m/s)

3

Height of blade(m)

2.6

Range of working wind speed(m/s)

3-25

Material of blades and numbers

Glass Fiber Reinforced Plastic/5

Survival wind speed (m/s)

50

Rated rotor speed (m/s)

180r/min

Output Voltage

AC48V

Speed regulation method

Electromagnetic control

Stop method

Electromagnetic brake

Wind energy utilized   efficient

30%-40%

Sweep wind area

5.98m2

Range of working temperature

-45°C-60°C

Suggested supporting battery

4pcs12v200ah

Top weight (kg)

180kg

Tower type and height

Free standing tower/8m

(W)Rated out power

2KW

(RPM)Rated Rotation Speed

200

 (A)Recified DC current at Rated Output

25

(N.M)Requied Torque Ar Rated Power

<95

(Ohms)Phase Resistance

1.6

 (mm)Output Wire Square  Section

80

 Insultation:

F

 Generator configuration

Three phase star conected output

 Design Lifetime:

>20  Year

(Kgs)Weight

45

(NM)Starting Torque

≤3.6

 Bearing Type:

High standard NSK Bearing

 Shaft Material

High standard Stainless steel

 Outer Frame Material

spheroidal-graphite cast iron

 Fasteners(nuts and bolts)

High standard Stainless steel

 Winding Temperature Rating:

180 Degarees Celsius

Product Model

2Kw

Rated Battery Voltage

48V

Rated Wind Turbine Maximum Power

2KW

50A

Rated Wind Turbine Maximum Instantaneous Input Power

4KW

Unload Voltage(factory default)

56V

Unload Current (factory default)

60A

Rated PV Power

600W

Control Mode

PWM

Display Mode

LCD

Display Parameters

Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power .Etc

Range of working Temperature &Humidity

-20~+55°C/35~85%RH(Without Condensation)

Quiescent Current

≤30mA

In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement.

Rated Output Capacity

2KVA

Rated Battery Voltage

48VDC

Rated Output Capacity

2 kVA

Over Voltage Shutoff

68VDC

Over Voltage Recovery

66VDC

Under Voltage Shutoff

42VDC

Under Voltage Recovery

48VDC

No Load Loss

0.72A

Output Wave Form

Pure Sine Wave

Display Mode

LCD

Display parameters

Battery Voltage, State parameters

Cooling Mode

Fan

Rated Output Voltage

220 VAC

In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement.
