CSPS 2016 most popular wood pellet packing machine

Main features and Application of wood pellet packing machine

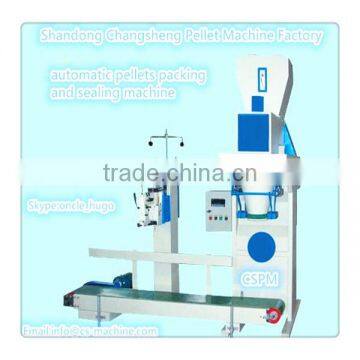

CS automatic packing machine for pellet wood is Mechanical &Electrical Integration high-tech product which is used in the auto quantitative packing process of packaging production line. The entire machine is made up of multi-stage filling apparatus, measuring apparatus and bag-clamping apparatus etc. The ordinary type packing machine is equipped with three-stage pneumatic gate type, gravity filling apparatus, which is suitable for quantitative packing of good fluidity material.( such as rice, white granulated sugars, feed and plastic granules). The other types of packing machine can be matched with screw propulsion feeding, belt transportation feeding or multisensor feeding, in order to satisfy quantitative packing process for different fluidity material.

 We are in the international bioenergy exhibiiton:

WorkIng Procedure of automatic packing machine for pellet wood

1. automatic packing machine for pellet wood Switch on power, in default state, the discharge door will close firstly, after removing the tare, it will start the filling apparatus to fill material.

2. automatic packing machine for pellet wood The material goes into measuring hopper continuously. The force load cell will convert the weight of material to corresponding electricity signal, and send this signal to controller. The weight of material will be shown on the window panel of controller. The controller will also output the control signal of each part in turn according to the set parameters, to feed the measuring hopper continuously at the fast, medium and slow speed, which can finish the quantitative feeding accurately.

3. automatic packing machine for pellet wood  When filling process is over, feeding apparatus will close and discharge door beneath the measuring hopper will open, material will fall into the bag by itself gravity through bag-clamping apparatus. When finishing discharging, the discharge will door close, bag-clamping apparatus will open to unloading bag automatically, one work cycle end, the controller goes into next work cycle automatically. Bag-clamping stroke switch can control action (open or close) of bag-clamping apparatus in order to do manual bagging work. Only the bag-clamping apparatus is in close state can the controller send out filling signal.

Below are the parameters of automatic packing machine for pellet wood :

1. packing range:5-50kg/bag

2. packing speed:5-8bags/min

3. packing accuracy:+/-0.2%

4. Size:1.5*1.3*3.2m

5. Air source pressure:0.6Mpa

1.  automatic packing machine for pellet wood

is integrated by packing machine and sealer . the integrated type is very flexible. Which type sealer will be organized in packing machine mainly depends on bags materials.,for example we will install heat sealer if bags materials are made from plastic, if nylon or paper bags, cloth bags, then install sew sealer.

2. automatic packing machine for pellet wood can measure weight and close bags automatically,

when adjust weight into one stable number for example 30kg/bag, bags will fall down to bottom conveyor automatically when reaches 30kg , then bags will convey to sealer. Then sealer will seal bags automatically and print production date. The pellet feeding to bags speed also can be adjusted.

* automatic packing machine for pellet wood introductions:

automatic packing machine for pellet wood  pack the wood pellets, animal feed pellets, organic fertilizer pellets, also can pack the many kinds of powders.The wood pellet packing machine is semi-automatic machine, it can sew the bags,also can adjust the kilogram per bag from 15kg to 50kg.

*The power of automatic packing machine for pellet wood is very low, the capacity is very high, wood pellet packing machine is used in the animal feed plant or biomass-energy pellet plant.
packing machine in pellet production line advantages:
-- Auto filling system
-- Auto weighting balance
-- Auto belt conveyor
-- Auto sewing machine or Auto heat sealing machine(Could be choose based on different bag materials)

below is our machining workshop:

* automatic packing machine for pellet wood is integrated by packing machine and sealer . the integrated type is very flexible , mainly according to different bags materials , for example nylon, linen or cloth ect. wood pellet packing machine If bags materials are mainly plastic , then the pellet packing machine sealer should be changed into heat healing not sewing type. Heat sealing machine

*Regarding automatic packing machine for pellet wood  heat sealer, introduction as below :
this serious packing machine in pellet production line adopting electrical eternal control system and Variable speed drive system, closing bags automatically by heat sensor. The wood pellet packing machine length of seal is no limited and can be finished one time. When closing, wood pellet packing machine can print production time on the bags automatically. Writing is clear and changing letters process is convenient. wood pellet packing machine can be used in single and complex membrane or plastic bags. Now it is widely sued in food , feed, wood, chemical industry.

 For automatic packing machine for pellet wood details, list as below :

1. 50 kg bags packing machine is integrated by packing machine and sealer .
the integrated type is very flexible. Which type sealer will be organized in packing machine mainly depends on bags materials.,for example we will install heat sealer if plastic bags, if nylon or paper or woven bags, cloth bags, then install sew sealer

2. 50 kg bags packing machine can measure weight ,
when adjust weight into one stable number for example 20kg/bag, bags will fall down to bottom conveyor automatically when reaches 30kg , then bags will convey to sealer. Then sealer will seal bags automatically and print production date. The pellet feeding and conveyor transportation speed also can be adjusted.

Below are packing and shipping of wood pellet packing machine

The year 2005 saw that Shandong Changsheng Machinery was born in the Zhangqiu Industrial Park with well-developed industrial foundation, Shandong Province; the first phase of the project covers an area of approx.100,000 square meters,with a total investment of nearly USD35 million and registered capital is USD12.5 million. Currently we have 900-plus staff. Having six departments-Administration, International Trade, Development, Finance, Production and Logistics, our company is a high-tech private enterprise, centering on production, R & D and sale of various large and medium pellet machines and complete pellet production lines. Our company has over 40 patents, 9 of them are invention patents. Over 15 years’ innovation, we are successively awarded numerous honors-Shandong Brand Product, Zhangqiu Top 10 Tax Payer Enterprise, Jinan Mayor Quality Prize, National High-tech Enterprise, Shandong Innovative Enterprise, Shandong Star Enterprise of China's patent, etc.

   Quality stems from innovation technology which originates from creative talents. Changsheng Machinery establishes a world-class environmental machinery technology research center, having a 40-plus-member research and management team, with their average age 32, and 12 of them have industrial senior titles. Led by returned elites with advanced R & D experience in pellet machines, we have launched the products fitting the clients most by combining foreign advanced manufacturing technology, our many more years’production and design basis with the clients’ practical needs. We successively carry our in-depth cooperation with Shandong University, SDUT and HIT, thus giving full play to powerful strength of enterprises-universities-researches Integration. Be of global top production level, we have bloomed into a pellet machine manufacturing and research enterprise equipped with global competitiveness, moreover, many more world-leading pellet production lines centering on GZLH480, GZLH560 and GZLH860 have been launched.

  Today, our products have been sold worldwide and our technology has reached the international advanced level, and a number of techniques have filled the domestic blank.

Changsheng Machinery spent heavily on building the world’s advanced pellet machine processing line and comprehensively achieved the synchronization with globally highest level of production. We are furnished with five professional shops for production, processing, assembly, paint and test running.

Hundreds of sophisticated precision machining equipments-CNC machining center, Longmen planer, horizontal boring and milling machine, large flat grinder, multifunctional CNC bending knee type milling machine, large radial drill, open-type inclinable press, NC cutting machine, NC lathe, etc.

Being field-experienced, 85% of staff carry out the scientific production process in the standardized factory and strive for excellence. There are rigorous standards on every link. All equipments must be tested severely before leaving the factory, and the passing rate is 100%.

We are committed to sharing quality products with the world. The first domestic Changsheng pellet machine was born in August, 2009; in 2011 our pellet machine was exported to Malaysia for the first time; and our international trade department was established in 2012. This way, Changsheng products are sold around the world. We are delivering unceasing surprises and achievements to our partners in China mainland, Taiwan, America, German, Korea, Brazil, Portugal, Russia, Australia, South Africa, Kenya, etc. Explore more financial sources and blaze a new way to the wealth.

We build our own 5S service project: special oil, special fitting, special services, specialist training and standardized management. We offer our clients such services as equipment installation and usage, etc. Our training content includes equipment maintenance, simple repair, electrical equipment operation, daily management, and so on.

We set up after-sale service offices in East China, North China and other districts. 24/7 telephone support services are available, and our engineers are able to solve all clients’ questions and problems anytime. Upon receiving domestic clients’ call, our after sales service personnel shall reach the client’s worksite within 24hours; for southeastern Asian clients, our related personnel shall reach the destination within 48hours, and it will be 72hours for European and American areas. Excellent after-sale services have earned widespread acclaim for our company.

The sky is the limit for the development of Changsheng Machinery. The grand prospect of Changsheng Machinery is unfolded. Nowadays, bearing new hope and taking advantage of new opportunities, Changsheng people are marching toward to new heights and brilliance.

Q: Can machine color be customized?

A: Yeah,no problem

Q: Are you a factory or trading house?

A: We are a factory of approx 100,000M2.

Q: Do you accept on-site inspection to check your pellet machine and your factory?

A: We strongly,firmly,warmly and sincerely expect your personal visit,and we hope to have a face-to-face negotiation with you and hope to do our host for you then.

Q: What payment terms do you prefer?

A: T/T,L/C,West Union,Cash,and so on.

Q: What about your delivery period?

A: 5 to 50 workdays upon getting advance or L/C,it depends on our production task arrangements,as saying goes:"first come,first served."

Q: What about your warrranty for your machines?

A: Our machines are warranted for 12 months as of delivery,and we will offer you lifelong consultant services.If required,our engineers can go to your work site to help you solve you problems.

Q: How could we get working video of your machines?

A: We can trasnfer video online to you by Alibaba Trademanager or Skype or QQ,etc.

Q: How could you directly contact you:

A: You can contact us by Skype-oncle_hugo; email:info AT

Q: Do you need international commisison sale agent?

A: We hope to cooperate with world-wide agents for co-win benefits.

Q:Give us reasons to purchase your products:

A: First,our factory are top 3 all over China ; second,our services are humanizing,religious,hospitable and comprehensive; third, our products are CE approved,and warranted by our entity; fourth, we uphold the principle of Integrity and Morality; Last but not least,your personal visit to our factory will prove our words, believe it or not, as long as you visit our factory,you will definitely select us,We are expected your upcoming visit day and night!

Should you have any question,pls feel free to contact us asap.
