Bucket Elevator of High Quality
- SHANGHAI
- T/T L/C D/P D/A
You May Like
-
New Arrival Round Flow Diverter
-
2015 CE Approved Poultry and Livestock and Aquatic Cattle Feed Mill Machine
-
CE Certificate Fully Automatic Fish Cattle Feed Pellet Machine
-
Reasonable Price Floating Fish Feed Pellet Machine With Good Performance
-
Pig Feed Mill Plant Price
-
2016 New Design Feed Production Price
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | FAST | Model Number | TDTG | |
| Type | Other, bucket elevator | Voltage | 380V | |
| Power(W) | 15kw | Dimension(L*W*H) | 2200*1000*1500mm | |
| Weight | 2000 kg | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

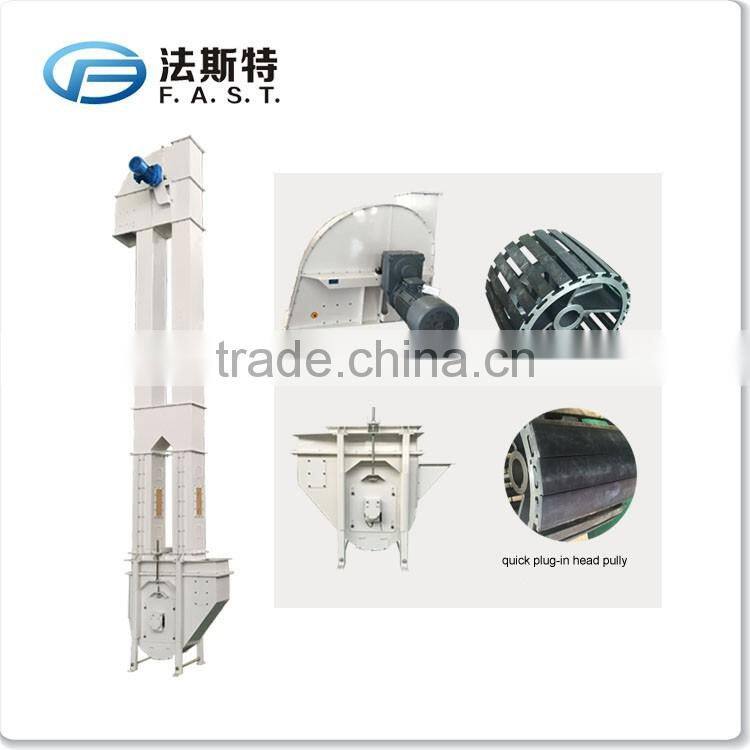

Bucket Elevator
Application:

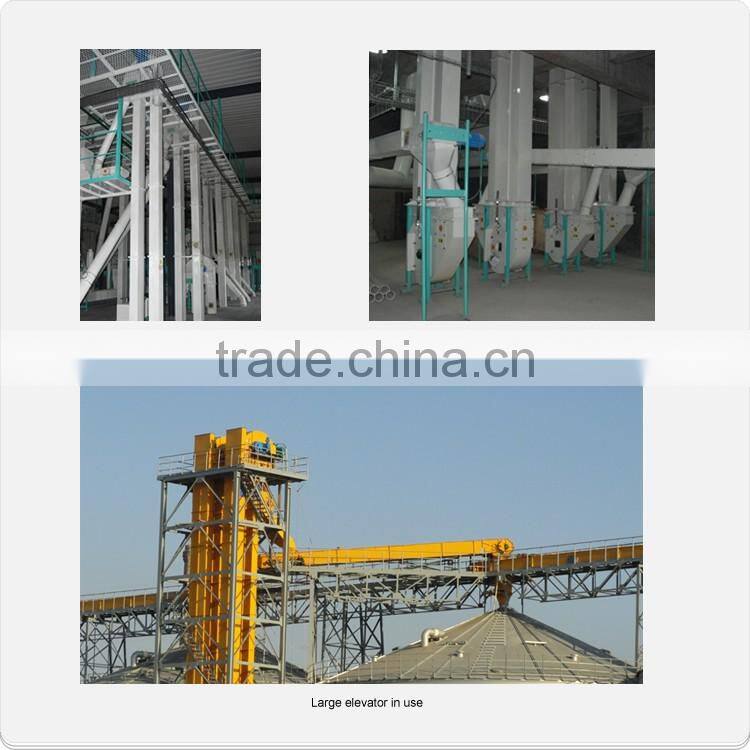

TDTG Series Bucket Elevator is an important equipment for convenient vertical conveying. It can be used in processing industry or bulk storage. The capacity is up to 1500t/h. Powder and pellet material can be elevated to 80m. TDTG Series Bucket Elevator can provide excellent service for various sectors, including flourmill, animal feed plant, inland storage elevator (silo) or grain collection station.
Performance:

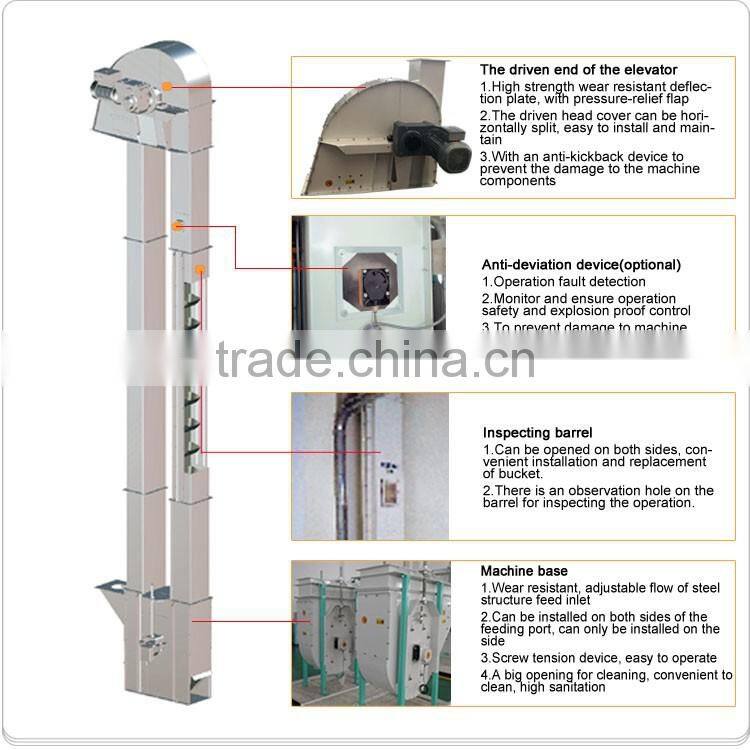

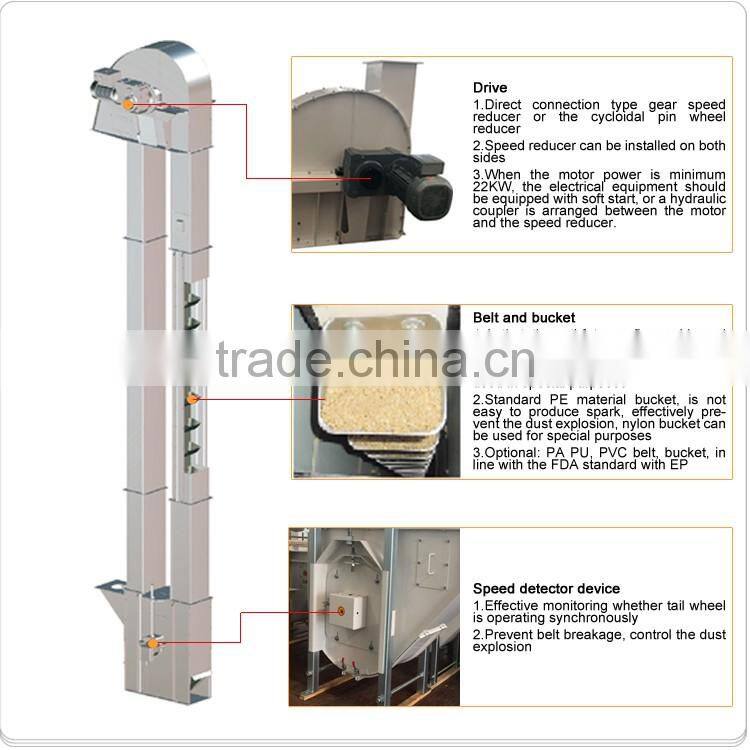

A large number of security devices, to achieve the best safety performance
→ Security devices include a zero-speed detector, a anti-deviation detector and a anti-kickback device to ensure the best monitor of performance when running;
→ Special design for special purpose, with positive or negative explosion protection and the anti-compression and anti-vibration barrel to provide best safety performance for different purposes.
Solid structure, easy to clean
→ solid structure and anti-resisting parts make it easy to clean and prolong the service life;
→ access door and split head in the top facilitate the maintenance——it is easy to clean and maintain.
optimized structure, highly flexible
→ Standard structure has one or more layers of powder coating, in addition, we also offer galvanized and stainless steel material which ensure the high flexibility of different materials and the installation indoors or outdoors.
→ optional circular base, can be used in the field of higher requirements for sanitation.
Technical parameter:
MODEL | POWER (kw) | CAPACITY(t/h) | |
PELLET | POWDER | ||
TDTG40/18 | 2.2~5.5 | 11~29 | 11~22 |
TDTG40/23 | 2.2~7.5 | 12~39 | 12~29 |
TDTG40/28 | 2.2~7.5 | 25~46 | 13~35 |
TDTG50/23 | 2.2~11 | 20~65 | 17~61 |
TDTG50/28 | 2.2~18.5 | 32~80 | 27~57 |
TDTG60/30 | 5.5~18.5 | 57~122 | 53~92 |
TDTG60/33 | 7.5~18.5 | 70~153 | 67~110 |
TDTG63/44 | 18.5~30 | 150~200 | 100~150 |
MODEL | CAPACITY(t/h) | |
PELLET | POWDER | |
TDTG63/57 | 200-300 | 150-180 |
TDTG80/57 | 300-400 | 150-200 |
TDTG80/80 | 400-500 | 200-300 |
TDTG80/98 | 500-600 | 300-400 |
TDTG100/119 | 600-800 | 400-500 |
TDTG100/136 | 800-1000 | 500-600 |
TDTG100/164 | 1000-1300 | 600-700 |
TDTG100/190 | 1300-1500 | 700-800 |
Power is depend on the capacity and height
Jiangsu Fasite Machinery Co., Ltd.is a high-tech enterprise professional integrated providing solution for feed, agricultural machinery and turn-key projects. It covers an area of 33000m2, among which of factory building is 20000m2 . Its registered capital is 10 million RMB and has invested 30 million during the first stage. There are various advanced processing equipments such as large imported laser cutting, machinery, bending machinery, conveying equipment, surface treatment and the electrostatic powder coating production line etc., which makes it manufacture quality a leading level in China.
è Standardized engineering installation
We have trained a professional installation team to avoid some malpractice due to outsourcing, so that the installation demands from customers can be met more quickly.
è Mechanized technology reform
We have a high-efficient mechanization technical team, which can meet the technical renovation and temporary rush-repair task at any time.
è Professional after-service
We are adhering to the idea "the management is law, the service is the morality" and makes a rapid response service system, so that our after-service and spare parts could be supplied to customers within 24 hours.
