automatic floating fish food extruder

1. Floating fish food extruder Description:
Fish food machine is suitable to make dry fish food pellet (catfish, aquarium, Tilapia, Freshwater fish and tropical fish..)
1). All fish food equipments are made of stainless steel.
2). The fish food whole line fully continuous and automatic.
3). Datongprovide basic fish food receip according to your require.
4). The final fish food shapes and sizes can be various by changing the mould.
5). Supply different size mould free.
6). Packing machine could be supplied to work with the line (depend on your require).
2. Raw materials for fish food pellet:
Most fish food pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder…..Animal peotein adopt fish meal, shrimp meal,crab meal, sleeve-fish meal and so on….you can add other ingredient according to the local fish live require.

3.automatic floating fish food extruder  Processing:

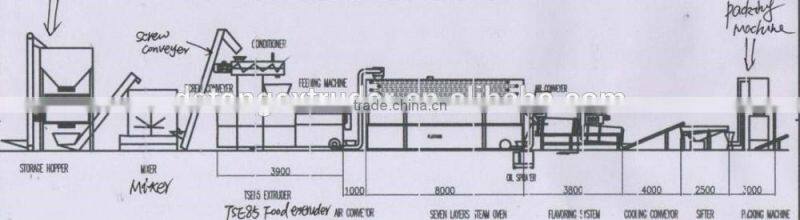

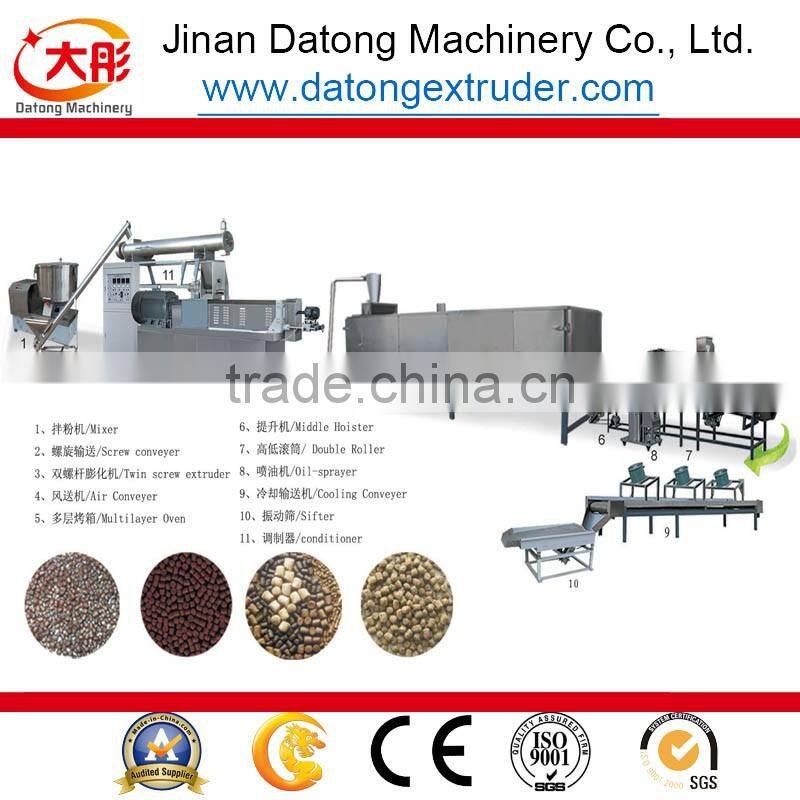

Advanced extrusion. We can provide feed processing line for you, its processing is flour Mixing--Advanced extrusion--Suitable Drying--Complete Flavoring--Cooling--Automatic Packaging
You can purcahse single extruder or automatic processing line from us.
4.fish feed pellet machine Main Motor & Brand:
Generally we use China local famous brand, you can also choose to use Siemens beide Motor, ABB motor etc, we book it according to your requirement.
5.automatic floating fish food extruder Capacity:
100-150kg/h, 200-240kg/h,400-500kg/h, we can also provide bigger capacity like: 1ton/h, 1-2ton/h for your options.
6.Floating fish feed processing line Material:
Screw is made from alloy steel(38CrMoAL); extrusion barrel is made of 45# carbon steel which is with more anti-friction than stainless steel. Main materials are 304 stainless steel.
7. Pellet diameter: For now, we produce 1-14mm pellets for customers and pack 500g, 1kg, below 5 kg, 5-25kg, 50kg bags.
8. Fish Food Extruder/Floating Fish Feed Pellet Machine For Fish Farming Technical parameter:
Mark: voltage & frequency is based on 380V/50Hz for 3 phases, 220V/50Hz for 1 phase. Our technician can adjust it according to your local area.

Fish Food Extruder/Floating Fish Feed Pellet Machine For Fish Farming Main Features:

a. Big capacity feeding hopper, variable frequency speed, two stages mixing wings, fast and efficient mixing and feeding.
b. DDC Double axis differential conditioner, available for steam, Pre-cooking and high efficient.

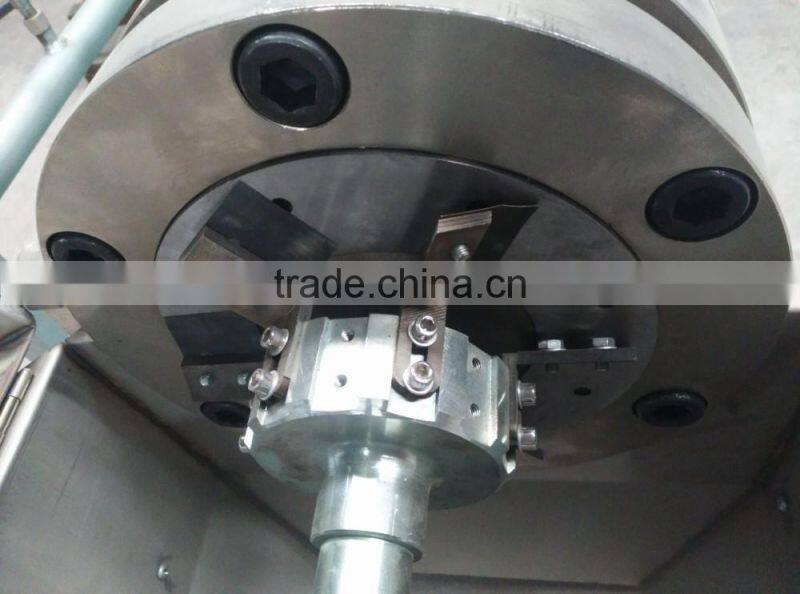

c. Linear slide face cutting system, strong power, variable frequency speed and large output,
d. Unique designed square barrels, made by hard carbide sleeve, hard-wearing and durable.
e. Modular circular groove screws, available for different extrusion rate applications.
f. SIEMENS(CHINA) brands electronicapparatus used in the controller box, make sure the extrusion process perfect.
g. Main motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.

Machine Parts

Name:Double screw

Brand:Datong

Original:China

Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm

Wear sleeve and screw sleeve are made of high wear-resistant alloy steel, to reduce abrasion and prolong service life.

Main Features

Name:SLG95 steam fish food extruder
Brand:DATONG

1. Extruder is mainly composed of feeding, pre-conditioning, extrusion and cutting systems.
2. Main engine adopts inverter to adjust speed of screw according to changing of formula.
3. adopt building block system (BBS) to be adjustable for different technology.
4. Double-shaft pre-conditioner makes excellent result of mixing and conditioning, increasing capacity of extruder 10-15%.
5. Diameter of feed φ1.2-φ12 can satisfy feed production for dog, cat, tortoise, bird, sea fish, shrimp and pet fish etc.

Machine Parts

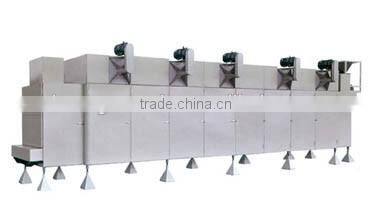

Belt width1300mm & above
Drying length10m~140m Applied temperature(℃)30~240
Drying time5~30 mins   Number of fans3~ 16 pcs
Drying capacity(TPH)0.4~10.0 ton  OVerall dimension8000*2200*3400 ~ 22500*3900*4500mm

Weight5~20 ton  StructureMultiple stainless steel  belt
Feeding speed0.05-0.5 m/s    Installed power13.5~126Kw
Steam consumption (t/h)0.4~4.0
Application scopeFood industry,Feedstuff,Agricultural Products, ApplicationGrain,Pet Food,Fish Feed,Puffed Snacks,Soybean Chunk,Pasta,Artificial rice,Vegetarian Meat,Etc

Main Features

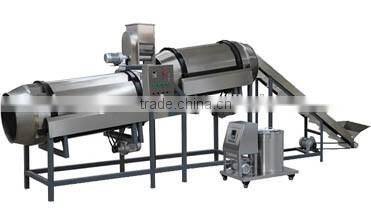

Name: Flavouring system
1. Fish-oil or other nutritious additives are sprayed on the surface of the pellets to improve palatability and conversion rate of feed.
2. Adopting drum pattern and oil atomization spraying system together with continuous and automatic operation.
3. Widely used for spraying fat, vitamin, substrate and medication onto the surface of extrusion feed.
