High Effective Food Drying Machine,food Dehydration Machine/mushroom Dehydrator/vegetable Drying Machine With Top Quality

high effective food drying machine,food dehydration machine/mushroom dehydrator/vegetable drying machine with top quality

Specfication

I . Applications of high effective food drying machine,food dehydration machine/mushroom dehydrator/vegetable drying machine with top quality

1. For drying granule and strip-shaped products in Food,Chemical and Pharmaceutical industry ;

2. Drying temperature: RT-140 degree C (adjustable)

3. Drying capacity: 10-500 kg/batch

4. Heat supply can be steam,electricity,hot water,hot oil and oil/gas/coal/biomass fired hot air generator.

II. Working principle of high effective food drying machine,food dehydration machine/mushroom dehydrator/vegetable drying machine with top quality

    high effective food drying machine,food dehydration machine/mushroom dehydrator/vegetable drying machine with top quality is a continuous convective drying processor of which the drying of product takes place on ventilated conveyor belts.

   After wet material is evenly fed onto the top layer of drying belt via the belt conveyor feeding system, the moving drying belt transports the wet material to the other end an drop onto the beneath layer of drying belt. The beneath drying belt then transports the wet material and moves in opposite direction until dropping onto the third layer of drying belt. At the same time, hot air is evenly blown into the dryer via the bottom air distributor. With the help of exhaust fan, the hot air penetrates the wet material on each layer of drying belt for heat transfer and take away the evaporated moisture. When wet material reaches the bottom drying belt, it is dried for discharging.

III. Technical advantages of high effective food drying machine,food dehydration machine/mushroom dehydrator/vegetable drying machine with top quality

1. Wide applications: Multi belt dryer is specially designed for drying those wet material which need long residence time. The residence time of this DW multi belt dryer is adjustable from 30 minutes to 90 minutes based on the required drying technique.

2. Energy-saving: The five-layer drying belts are completely installed inside a well insulated drying chamber which can considerably reduce heat loss. The hot air is blown into the belt dryer from the bottom and then penetrates through each layer of wet material which can enhance heat transfer and reduce heat loss in exhaust gas.

3. Uniform drying: The drying chamber has five drying zones and the specially designed air distributor can make sure uniform air flow in each drying zone to guarantee uniform drying.

4. Easy operation and maintenance: The whole drying system is highly automatic. The simple but practical design (The dryer only use one blower and exhaust fan) can not only reduce production cost but also the maintenance and repair cost.

 IV. The introduction of our company:

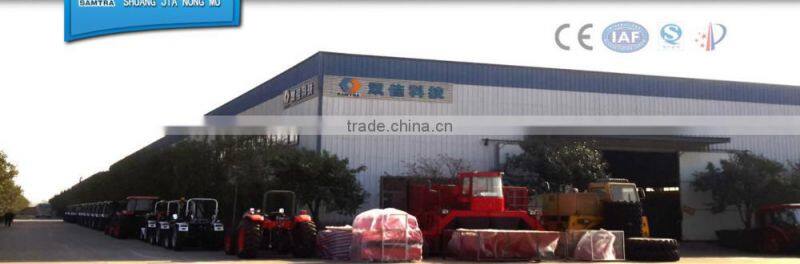

    We are a whooly subsidiary of Shandong Agricultural Machinery Science Research Institute, national and provincial government supports us. We take the lead role to hold exhibition. We have high scientific research power, according to customers' requirements improve our products, from the customers' point of view, we putting our heart and soul into customers' service, deserving customers' trust in domestic and foreign.

    Moving customers' by heart is our forever belief

If you are interested in our products,please contact me without hesitation:
