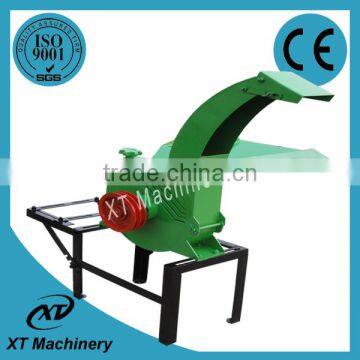

2.2kw or 5hp 800kg/h mini chaff cutter

 Description

2.2kw or 5hp 800kg/h mini chaff cutter is generally used to chop dry or green silage/forage

such as grass, straw, vine, paddy, during dry season.

Specification

Size:               750*400*700mm

Weight:           60kg

Power:             2.2kw or 5hp

Blade Position: 0.1-0.3mm clearance between fixed and rotating blades

Cut length:       10-25mm

Capacity:         800kg/h

Blade qty;        3 pcs rotating

Belt type:        B

Belt qty:          3 pcs

Features

1. Three rotating blades and three ventilating fins attached to this mini chaff cutter

2. Fly wheel driven by a 7'' diameter pulley with two B type belts

3. Four air-intake slots to avoid clogging

4. Robust support ready for electric motor or diesel/gasoline engine

5. Removable discharge neck
