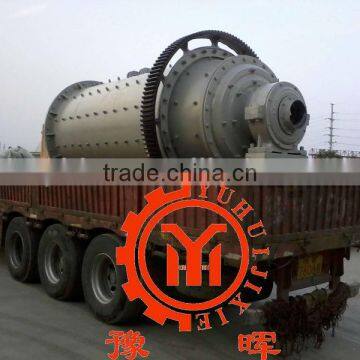

overflow ball mill with certificate
- Tianjin Dalian Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Other, ball mill | |
| Production Capacity | many models | Place of Origin | Henan, China | |
| Brand Name | Yuhui | Model Number | MYQ series | |
| Voltage | 380V or as ordered | Power(W) | many models | |
| Dimension(L*W*H) | many models | Weight | many models | |
| Certification | ISO, BV | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
overflow ball mill with certificate1. customers design in three days
2. more than 20 tears experience
3. quality is top
overflow ball mill with ce certificate
(1)overflow ball mill introduction:
- Ball mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium
- Ball mills can operate continuously, fed at one end and discharged at the other end.
(2) overflow ball mill tips:
- what the color of the finished product is important, the color of the grinding media must be considered.
- Where low contamination is important, the grinding media may be selected for ease of separation from the finished product (i.e.: steel dust produced from stainless steel media can be magnetically separated from non-ferrous products)
- An alternative to separation is to use media of the same material as the product being ground.
(3)main technical parameters:
Model | Cylinder diameter(mm) | Cylinder length(mm) | Effective volume(m3) | Mill rotational speed(r/min) | Body capacity(t) | Drive way | Main motor | Weight(t) | R emarks | |
Power(kw) | Speed(r/min) | |||||||||
MQY15×30 | 1500 | 3000 | 5 | 26.6 | 9 | Edge | 95 | 742 | 18.5 | Drum feeder |
MQY15×36 | 1500 | 3600 | 5.7 | 26.6 | 10.6 | Edge | 95 | 742 | 17.22 | Rubber liner |
MQY21×30 | 2100 | 3000 | 9.4 | 22.1 | 15 | Edge | 210 | 740 | 45 |
|
MQY24×30 | 2400 | 3000 | 12.2 | 21 | 22.5 | Edge | 250 | 980 | 55 |
|
MQY27×36 | 2700 | 3600 | 18.5 | 20.5 | 39 | Edge | 400 | 187.5 | 61.34 |
|
MQY27×45 | 2700 | 4500 | 23.5 | 20.5 | 43.5 | Edge | 500 | 187.5 | 76 |
|
MQY28×80 | 2800 | 8000 | 43 | 2. | 78.6 | Edge | 800 | 187 | 115 | Used for coal water slurry |
MQY32×36 | 3200 | 3600 | 26.3 | 18.3 | 48.4 | Edge | 500 | 167 | 116.94 | |
MQY32×45 | 3200 | 4500 | 32.9 | 18.3 | 60.5 | Edge | 630 | 167 | 124.23 |
|
MQY32×75 | 3200 | 7500 | 55.5 | 18.3 | 102 | Edge | 1250 | 734 | 154 |
|
MQY34×45 | 3400 | 4500 | 37 | 18.4 | 74.6 | Edge | 800 | 167 | 129.8 |
|
MQY34×56 | 3400 | 5600 | 45.8 | 17.9 | 84.3 | Edge | 1120 | 985 |
|
|
MQY36×50 | 3600 | 5000 | 46.7 | 17.5 | 85.96 | Edge | 1250 | 167 | 150 |
|
MQY36×60 | 3600 | 6000 | 54 | 17.3 | 102 | Edge | 1250 | 167 | 162.7 |
|
MQY36×90 | 3600 | 9000 | 83.5 | 17.4 | 138 | Edge | 1800 | 743 | 286 |
|
MQY40×60 | 4000 | 6000 | 69.8 | 16 | 126 | Edge | 1500 | 200 | 203.5 | Used for coal water slurry |
MQY40×135 | 4000 | 13500 | 155 | 16 | 233 | Edge | 3300 | 200 | 343 | |
MQY43×61 | 4270 | 6100 | 80 | 15.67 | 144 | Edge | 1750 | 200 | 215.3 |
|
MQY 50×64 | 5030 | 6408 | 120 | 14.4 | 251 | Edge | 2600 | 200 | 318.5 |
|
MQY55×65 | 5500 | 6500 | 143.3 | 13.8 | 264 | Edge | 3400 | 200 | 451.5 |
|
MQY55×85 | 5500 | 8500 | 187.4 | 13.8 | 335 | Edge | 4500 | 200 | 480 |
|
