Agitator
- 500 Set / Sets per Month
- Guangzhou
- Credit Card PayPal
You May Like
-
Portable Pneumatic Lifting Type Dispersion Machine Homogenizer Mixer
-
2015 JF Movable high shearing homogenizer,portable high shear homogenizer
-
Accept Wholesale Customized PerfumeHigh Speed Disperser
-
Top Grade Performance Popular Machinery PerfumeLab High-Speed Disperser
-
Equipment From China For The Small Business PerfumePaint Disperser
-
Accept Customized Top Grade PerfumePaint Dispersion Mixer
Product Details
| Condition | New | Mixer Type | Agitator | |
| Product Type | Cosmetic | Application | Liquid | |
| Additional Capabilities | Other, Agitator | Place of Origin | Guangdong, China | |
| Brand Name | Jinfeng | Model Number | JF-C22H | |
| Max. Loading Capacity | Customized | Voltage | 220v/380v | |
| Power(W) | 0.75KW~45KW | Dimension(L*W*H) | Custom Made | |
| Certification | GMP Standard | Warranty | 1 year | |
| After-sales Service Provided | No overseas service provided |
Product Description

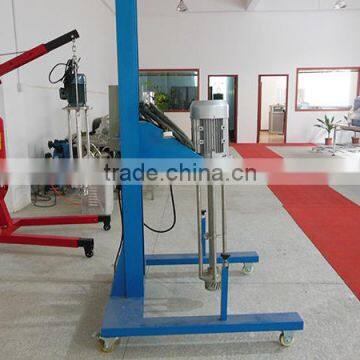

Agitator
[Product introduce]
This product is suitable for homogeneous, low viscosity of emulsion dispersion and emulsion manufacture, suitable for the majority of the formula, special the rotor and the stator to generate strong shearing, grinding, impact and convection, the emulsion particles reach the steady state (1-2m)
Installation considerations
² Mechanical length of this machine (L) size of standard length, if need to lengthen or shorten can be matched with.
² The best position of mechanical length choice for emulsified frame slot, at level 60% is the best effective depth.
² Please refer to the selected emulsifier when: capacity, viscosity, treatment time, the reaction temperature, the purpose, the company business department.
² Emulsification machine water bearing with self-lubricating bearing, boot device no liquid below the water bearing, to avoid causing bearing damage.
² The correct parameters to provide the material object as the standard, the data is subject to change, without notice.
Technical parameters
Model | JF-C1.5H | JF-C4H | JF-C7.5H | JF-C11H | JF-C22H |
Power | 1.5 | 4 | 7.5 | 11 | 22 |
Speed | 2880 rpm | 2880 rpm | 2880 rpm | 2880 rpm | 2880 rpm |
Width (mm) | 100 | 115 | 130 | 140 | 220 |
Length (mm) | 592 | 895 | 1168 | 1168 | 1498 |
Max volume | 20-200L | 50-300L | 100-1000L | 150-1000L | 500-2000L |
Weight | 41kg | 73kg | 168kg | 275kg | 523kg |
Note : In case of inconformity of the data in the form due to technical improvement or customization , the real object shall prevail.
Contact Us
- Guangzhou Jinfeng Light Industry Machinery Co., Ltd.
- Contact nameJoyce Sin Chat Now
- Phone86-20-86070290
- AddressNO.9 New industrial zones, Xia Mao eleven agency, Baiyun District , Guangzhou, Guangdong
